The application of eigensymmetries of face forms to X-ray diffraction intensities of crystals twinned by `reticular merohedry'

Klapper, H.; Hahn, Th.

doi:10.1107/S0108767311032454

Acta Crystallographica Section A
Acta Crystallographica
Section A FOUNDATIONS AND ADVANCES

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 5

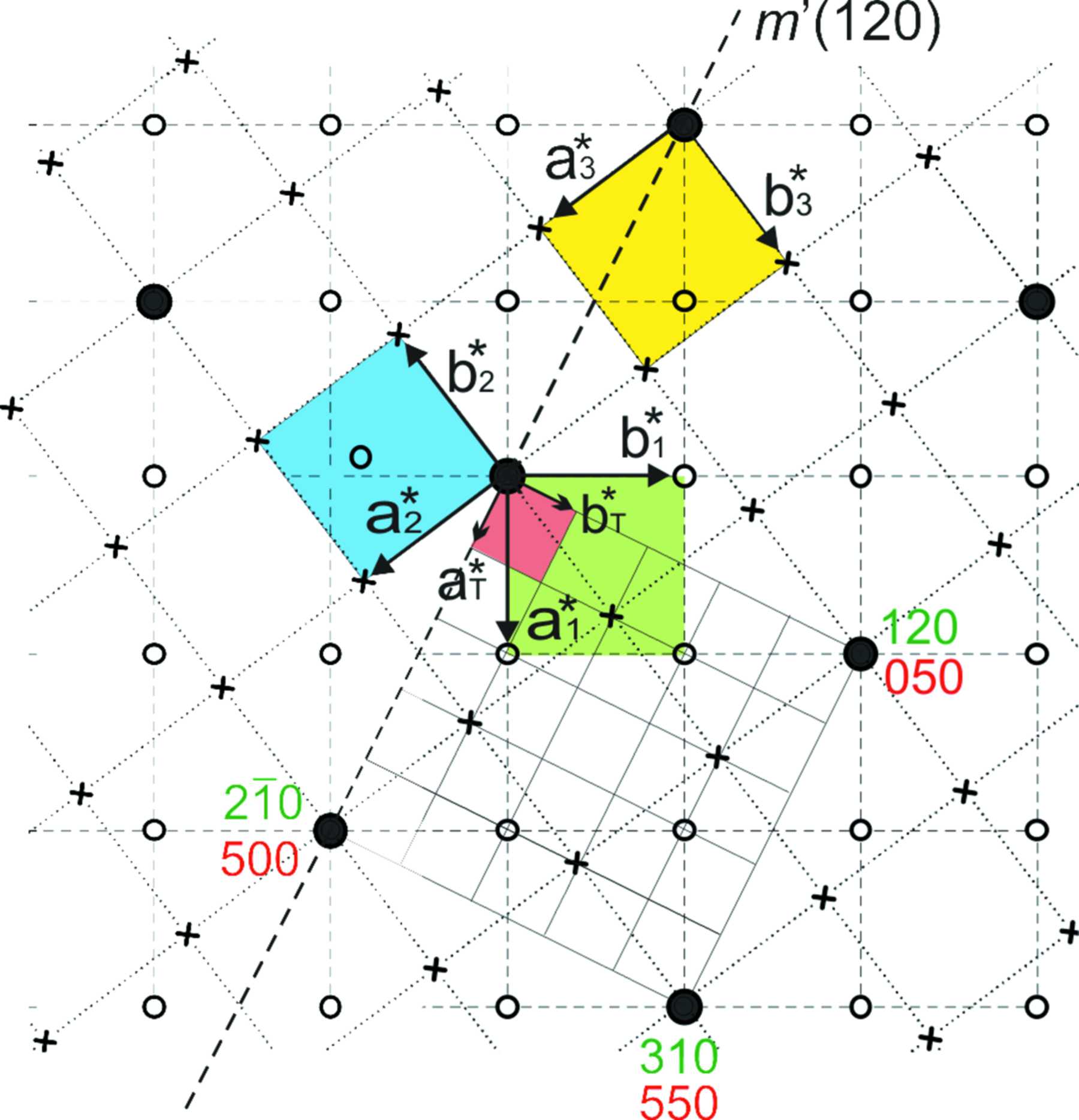

Reciprocal tetragonal lattices (hk0 lattice planes) of twin domain I (start domain, lattice points small circles) and of the Σ5 twin-related domain II (small crosses). The reciprocal lattice of the (direct-space) Σ5 coincidence lattice is represented by the grid of small squares. The unit cells, their handedness and their colours correspond to those of the direct lattices in Fig. 4

. In the square formed by the four reciprocal coincidence points 000, 2 $[\overline 1]$ 0, 310, 120 (in terms of a₁*, b₁*) or 000, 500, 550, 050 (in terms of a_T*, b_T*) there are four `single' points of twin domains I and II each, one `coincident' point 000 and, with reference to a_T*, b_T*, 16 `extinct' reciprocal points (cf. Table 1

). These strange `non-space-group extinctions' are characteristic of the Σ5 twin law.
