Figure 6

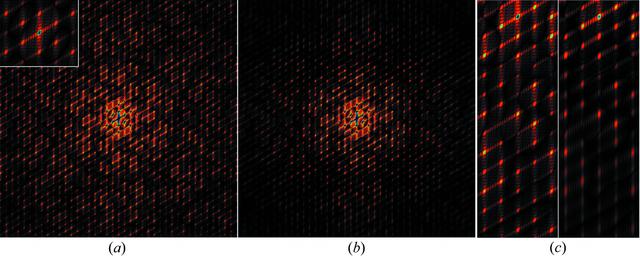

Simulated diffraction patterns of the photosystem I nanocrystal [(ab) plane]: (a) diffraction from the ideal crystal; (b) diffraction from the set of disordered nanocrystals. (c) A magnified view of a segment from the diffraction patterns of the ideal (left) and the disordered (right) nanocrystals.  [article HTML]
