Figure 11

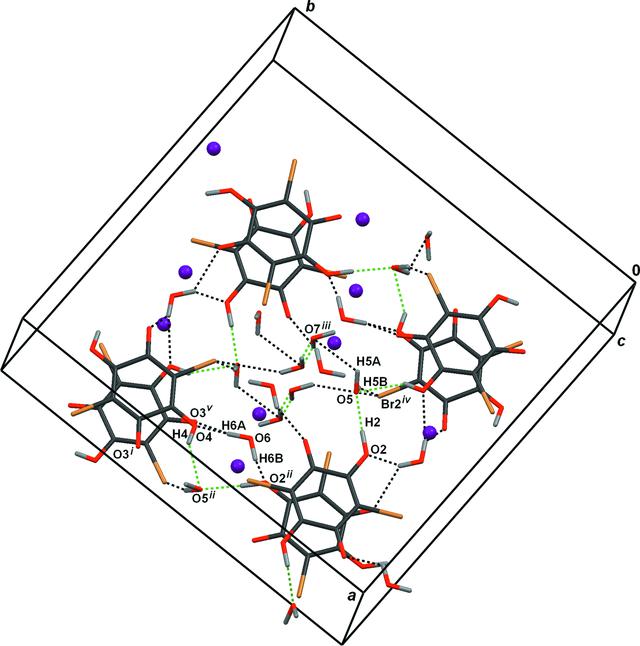

Hydrogen-bonding scheme of RbHBA·3H2O. Hydrogen bonds with disordered protons are shown as green dotted lines; those with ordered protons are shown as black dotted lines. Alkali cations are depicted as spheres of arbitrary radii. Symmetry codes: (i) [{3\over 2} - x, {3\over 2} - y, z]; (ii) [{1\over 2} + y, 1 - x, {1\over 2} + z]; (iii) 1 - x, 2 - y, 1 - z; (iv) 1 - x, 1 - y, 3 - z; (v) [{3\over 2} - y, x, {7\over 2} - z].
