Figure 6

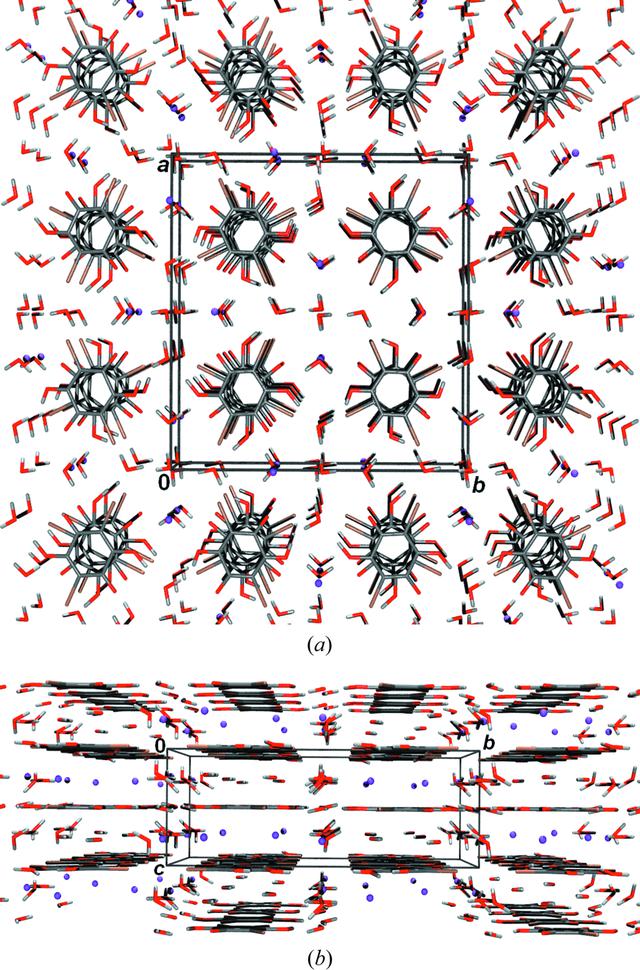

Packing of CsHBA·3H2O viewed in the directions: (a) [001] and (b) [100]. Hydrogen bonds are omitted for clarity and alkali cations are depicted as spheres of arbitrary radii. The packing of KHBA·3H2O and RbHBA·3H2O reveals an isostructural relationship.  [article HTML]
