A time-resolved powder diffraction study of in-situ photodimerization kinetics of 9-methylanthracene using a CCD area detector and parametric Rietveld refinement

Mabied, A.F.; Müller, M.; Dinnebier, R.E.; Nozawa, S.; Hoshino, M.; Tomita, A.; Sato, T.; Adachi, S.

doi:10.1107/S0108768112027450

Figure 7

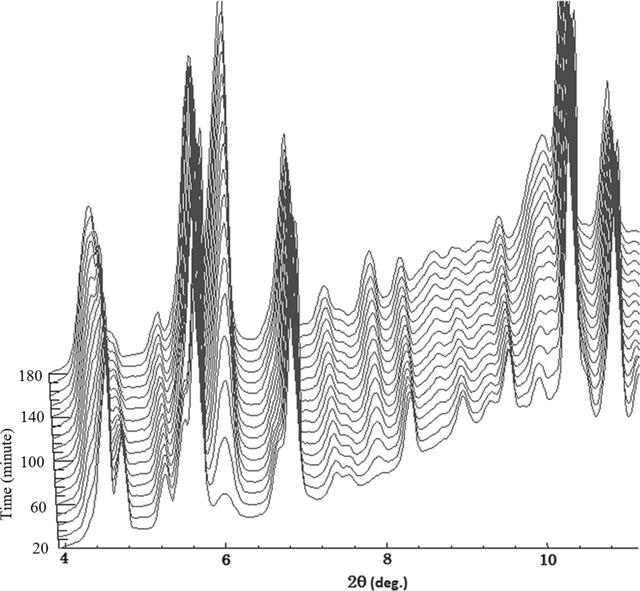

Three-dimensional plot showing a cut out of the time-resolved three-dimensional plot of the diffraction patterns.
