Acta Crystallographica Section C

Crystal Structure Communications

Volume 62, Part 2 (February 2006)

metal-organic compounds

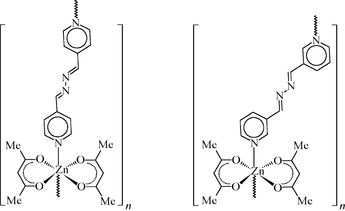

sq3002 scheme

Acta Cryst. (2006). C62, m56-m59 [ doi:10.1107/S0108270106000540 ]

Two one-dimensional zinc(II) coordination polymers: catena-poly[[bis(pentane-2,4-dionato-²O,O')zinc]--1,4-bis(x-pyridyl)-2,3-diazabuta-1,3-diene] (x = 3, 4)

J. Granifo, M. T. Garland and R. Baggio

Abstract: The structures of the two title isomeric compounds, [Zn(C₅H₇O₂)₂(C₁₂H₁₀N₄)]_n, are built up around two non-equivalent symmetry centres, one of them at the cation position and the other bisecting the N-N bond in the 1,4-bis(3/4-pyridyl)-2,3-diazabuta-1,3-diene (3pdb/4pdb) units. Both Zn cations have the Zn atoms an inversion centres and present tetragonally distorted octahedral environments, but differences in their linkage through the 3pdb and 4pdb ligands give rise to differently shaped weakly interacting chains.

Formula: Two isomers of [Zn(C₅H₇O₂)₂(C₁₂H₁₀N₄)]


	Structure factor file (CIF format) (120.7 kbytes) [ doi:10.1107/S0108270106000540/sq3002Isup2.hkl ] Contains datablock I

	Structure factor file (CIF format) (119.2 kbytes) [ doi:10.1107/S0108270106000540/sq3002IIsup3.hkl ] Contains datablock tmp
