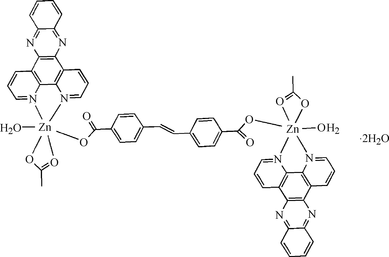

sk3269 scheme

Acta Cryst. (2008). C64, m401-m404 [ doi:10.1107/S0108270108038328 ]

Influence of nitrogen-containing chelating ligands on the structures of zinc(II) 4,4'-ethylenedibenzoates

X.-Y. Wang, J.-J. Wang and S. W. Ng

Abstract: The Zn^II compounds, [mu] -4,4'-ethylenedibenzoato-bis[acetatoaqua(dipyrido[3,2-a:2',3'-c]phenazine)zinc(II)] dihydrate, [Zn₂(C₂H₃O₂)₂(C₁₆H₁₀O₄)(C₁₈H₁₀N₄)₂(H₂O)₂]·2H₂O, (I), and catena-poly[[[aqua(pyrazino[2,3-f][1,10]phenanthroline)zinc(II)]- [mu] -4,4'-ethylenedibenzoato] N,N-dimethylformamide hemisolvate], {[Zn(C₁₆H₁₀O₄)(C₁₄H₈N₄)(H₂O)]·0.5C₃H₇NO}_n, (II), display very different structures because of the influence of the N-donor chelating ligands. In (I), the coordination geometry of each Zn^II centre is distorted octahedral, involving two N atoms from one dipyrido[3,2-a:2',3'-c]phenazine (L1) ligand, and four O atoms from one bis-chelating acetate anion, one bridging 4,4'-ethylenedibenzoate (bpea) ligand and one water molecule. Adjacent Zn^II atoms are bridged by one bpea ligand to form a dinuclear complex, and the dinuclear species is centrosymmetric. Two types of [pi] - [pi] interactions between neighbouring dinuclear species have been found: one is between the L1 ligands, and the second is between the L1 and bpea ligands. In this way, an interesting two-dimensional supramolecular layer is formed. The layers are further linked by O-HO and O-HN hydrogen bonds, generating a three-dimensional supramolecular network. In (II), each Zn^II atom is square-pyramidally coordinated by two N atoms from one pyrazino[2,3-f][1,10]phenanthroline ligand, three O atoms from two different bpea ligands and one water molecule. The two bpea dianions are situated across inversion centres. The bpea dianions bridge neighbouring Zn^II centres, giving a one-dimensional chain structure in the ab plane. As in (I), two types of [pi] - [pi] interactions between neighbouring chains complete a three-dimensional supramolecular structure. The results indicate that the structures of the N-donor chelating ligands are the dominant factors determining the final supramolecular structures of the two compounds.

Formula: [Zn₂(C₂H₃O₂)₂(C₁₆H₁₀O₄)(C₁₈H₁₀N₄)₂(H₂O)₂]·2H₂O and [Zn(C₁₆H₁₀O₄)(C₁₄H₈N₄)(H₂O)]·0.5C₃H₇NO


	Structure factor file (CIF format) (232.9 kbytes) [ doi:10.1107/S0108270108038328/sk3269Isup2.hkl ] Contains datablock I

	Structure factor file (CIF format) (270.1 kbytes) [ doi:10.1107/S0108270108038328/sk3269IIsup3.hkl ] Contains datablock II
