Acta Crystallographica Section C

Crystal Structure Communications

Volume 64, Part 12 (December 2008)

organic compounds

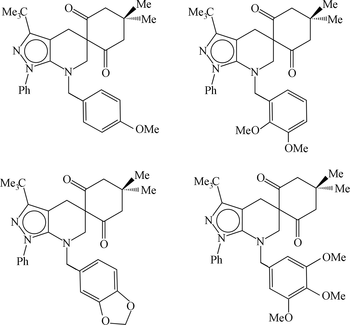

sk3276 scheme

Acta Cryst. (2008). C64, o665-o670 [ doi:10.1107/S0108270108038778 ]

Four N⁷-alkoxybenzyl-substituted 4,5,6,7-tetrahydro-1H-pyrazolo[3,4-b]pyridine-5-spiro-1'-cyclohexane-2',6'-diones: hydrogen-bonded supramolecular structures in zero, one, two or three dimensions

J. Trilleras, J. Quiroga, J. Cobo, J. N. Low and C. Glidewell

Abstract: 3-tert-Butyl-7-(4-methoxybenzyl)-4',4'-dimethyl-1-phenyl-4,5,6,7-tetrahydro-1H-pyrazolo[3,4-b]pyridine-5-spiro-1'-cyclohexane-2',6'-dione, C₃₁H₃₇N₃O₃, (I), 3-tert-butyl-7-(2,3-dimethoxybenzyl)-4',4'-dimethyl-1-phenyl-4,5,6,7-tetrahydro-1H-pyrazolo[3,4-b]pyridine-5-spiro-1'-cyclohexane-2',6'-dione, C₃₂H₃₉N₃O₄, (II), 3-tert-butyl-4',4'-dimethyl-7-(3,4-methylenedioxybenzyl)-1-phenyl-4,5,6,7-tetrahydro-1H-pyrazolo[3,4-b]pyridine-5-spiro-1'-cyclohexane-2',6'-dione, C₃₁H₃₅N₃O₄, (III), and 3-tert-butyl-4',4'-dimethyl-1-phenyl-7-(3,4,5-trimethoxybenzyl)-4,5,6,7-tetrahydro-1H-pyrazolo[3,4-b]pyridine-5-spiro-1'-cyclohexane-2',6'-dione ethanol 0.67-solvate, C₃₃H₄₁N₃O₅·0.67C₂H₆O, (IV), all contain reduced pyridine rings having half-chair conformations. The molecules of (I) and (II) are linked into centrosymmetric dimers and simple chains, respectively, by C-HO hydrogen bonds, augmented only in (I) by a C-H [pi] hydrogen bond. The molecules of (III) are linked by a combination of C-HO and C-H [pi] hydrogen bonds into a chain of edge-fused centrosymmetric rings, further linked by weak hydrogen bonds into supramolecular arrays in two or three dimensions. The heterocyclic molecules in (IV) are linked by two independent C-HO hydrogen bonds into sheets, from which the partial-occupancy ethanol molecules are pendent. The significance of this study lies in its finding of a very wide range of supramolecular aggregation modes dependent on rather modest changes in the peripheral substituents remote from the main hydrogen-bond acceptor sites.

Formula: C₃₁H₃₇N₃O₃, C₃₂H₃₉N₃O₄, C₃₁H₃₅N₃O₄ and C₃₃H₄₁N₃O₅·0.67C₂H₆O


	Structure factor file (CIF format) (293.0 kbytes) [ doi:10.1107/S0108270108038778/sk3276Isup2.hkl ] Contains datablock I

	Structure factor file (CIF format) (313.0 kbytes) [ doi:10.1107/S0108270108038778/sk3276IIsup3.hkl ] Contains datablock II

	Structure factor file (CIF format) (294.2 kbytes) [ doi:10.1107/S0108270108038778/sk3276IIIsup4.hkl ] Contains datablock III

	Structure factor file (CIF format) (355.1 kbytes) [ doi:10.1107/S0108270108038778/sk3276IVsup5.hkl ] Contains datablock IV
