Figure 4

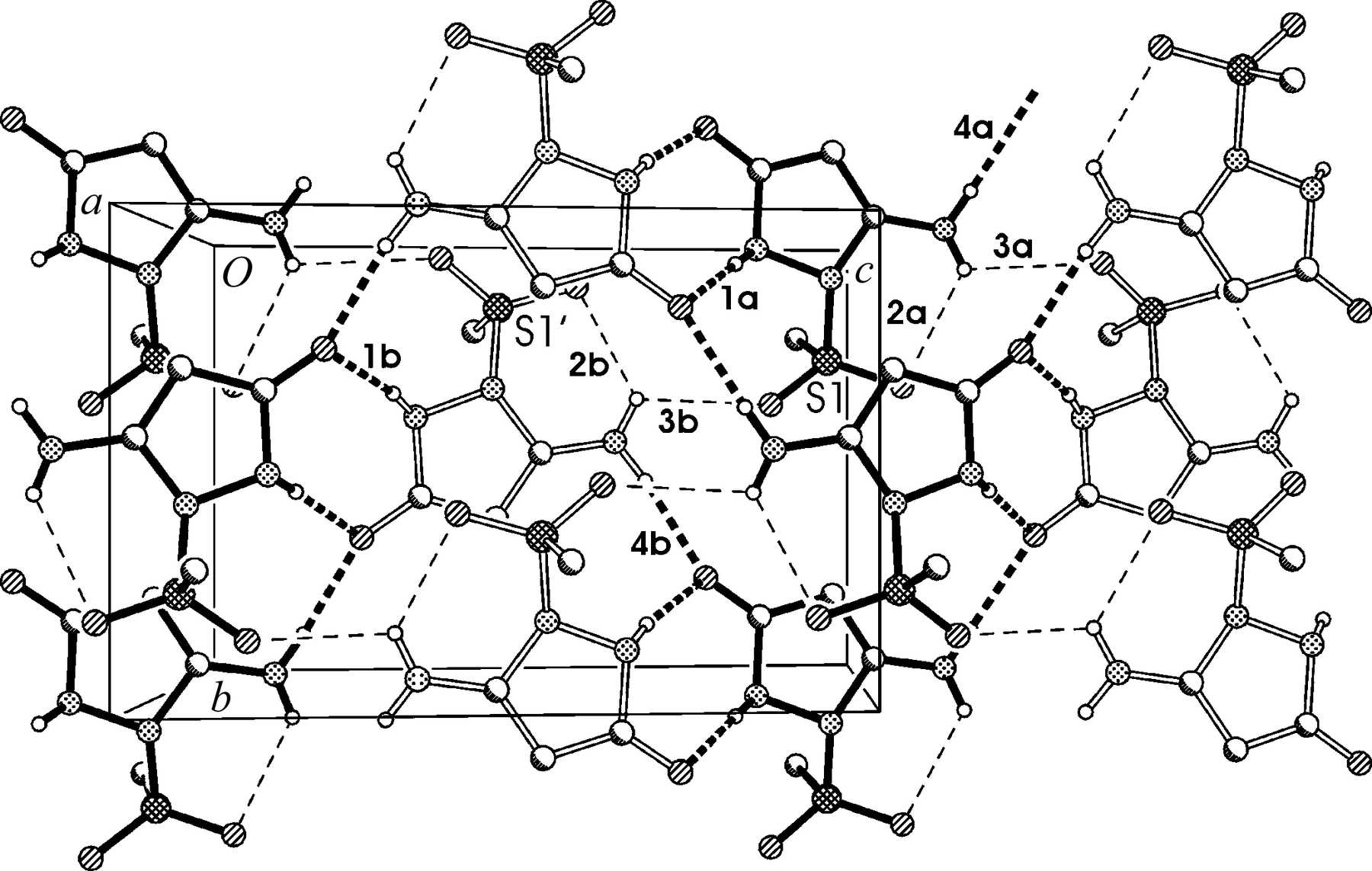

A packing diagram for (II) (Elgemeie et al., 1998BB3), viewed parallel to the a axis. The first independent mol­ecule is drawn with full bonds and the second with open bonds. For clarity, phenyl rings are reduced to the ipso-C atom, and all H atoms not involved in hydrogen bonding have also been omitted. Hydrogen bonds are indicated by thick (two-centre) or thin dashed lines (three-centre) and are numbered analogously to those of (I)[link] in Table 2[link], with an additional `a' for those with the donor in mol­ecule 1 and `b' for those with the donor in mol­ecule 2. The origin has been shifted along the b axis to be consistent with Fig. 2[link], but not along the c axis, where it would be shifted by [{1 \over 4}] with respect to (I)[link].
