Figure 7

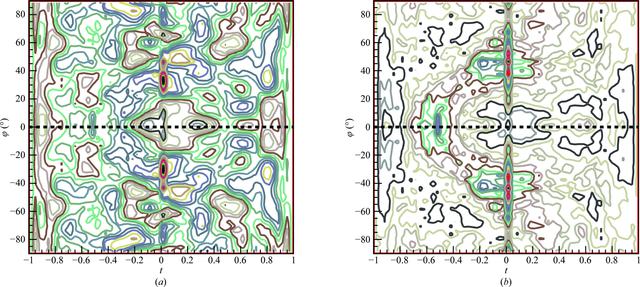

Projection in the plane (t, [varphi]) of the Patterson function (a) and the power spectrum [|G_{{\hat {\bf n}}}(\nu)|^2] (b) for 1dy5 . The horizontal dashed line indicates the restriction introduced by the space-group symmetry.  [article HTML]
