Figure 2

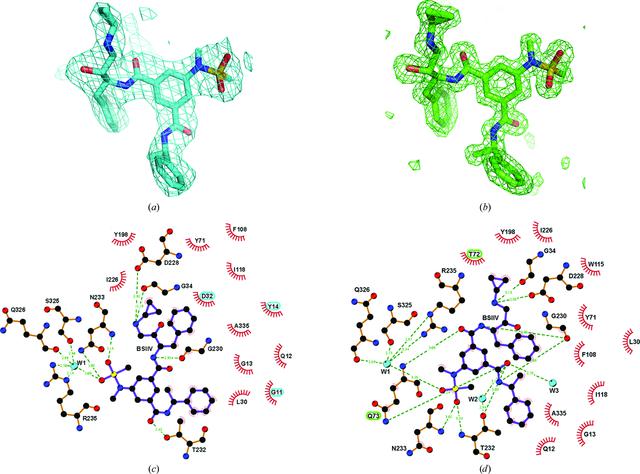

Conformations of BSIIV in the soaked and cocrystallized complexes. (a, b) (Fo - Fc) difference electron-density maps contoured at 3.0[sigma] for BSIIV in the soaked (a) and cocrystallized (b) structures. (c, d) LIGPLOT representations of the interactions of BSIIV with the enzyme in the soaked (c) and cocrystallized (d) structures.  [article HTML]
