Figure 6

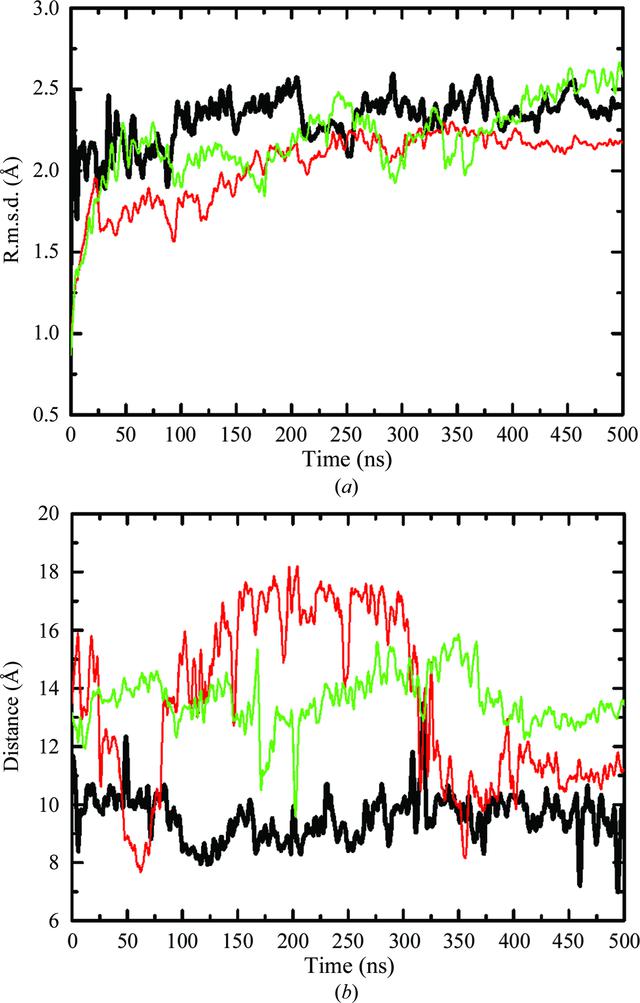

MD simulations of the BACE1 monomer and `dimer'. (a) Time-dependent r.m.s.d.s of the C[alpha] atoms with respect to their starting positions in the trajectories of BACE1 in the monomer (black) and in the two copies of the `dimer' (red and green). (b) Time-dependence of the distances between the C[alpha] atoms of flap residues 67-75 and the two carboxyl O atoms of Asp228 in the monomer (black) and in the two copies of BACE1 in the `dimer' (green and red).  [article HTML]
