Low-resolution structure determination of Na+-translocating NADH:ubiquinone oxidoreductase from Vibrio cholerae by ab initio phasing and electron microscopy

Lunin, V.Y.; Lunina, N.L.; Casutt, M.S.; Knoops, K.; Schaffitzel, C.; Steuber, J.; Fritz, G.; Baumstark, M.W.

doi:10.1107/S0907444912012012

Figure 1

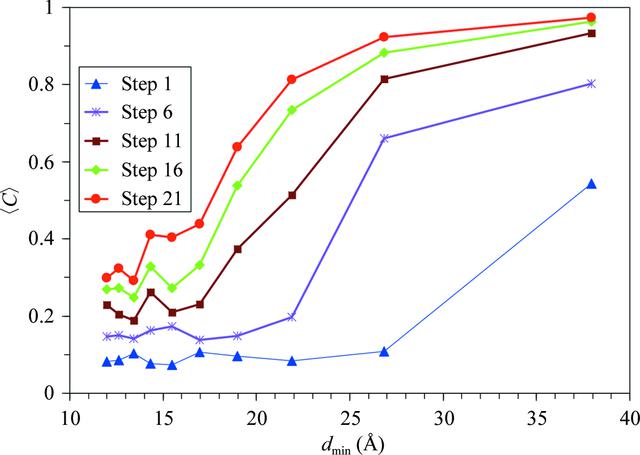

Statistics during the course of phasing. The expected value of the shell correlation coefficient <C> = $[\textstyle \sum_{{\bf h}\,\,{\rm in\,\,the\,\,shell}}[F_{\rm obs}({\bf h})]^{2}m({\bf h})/]$ $[\textstyle \sum_{{\bf h}\,\,{\rm in\,\,the\,\,shell}}[F_{\rm obs}({\bf h})]^{2}]$ versus the resolution shells is shown after one, six, 11, 16 and 21 cycles of phase calculation.
