Figure 8

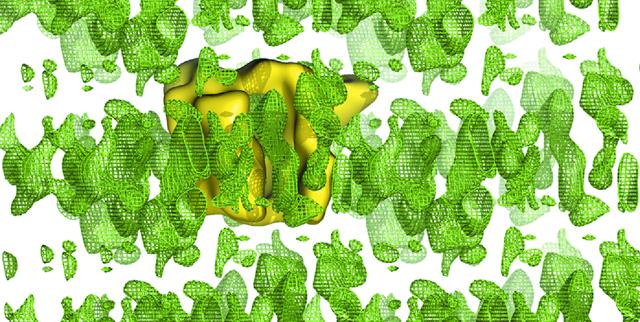

Localization of detergent layers in the crystal. The distribution of the low-density regions in the crystal is shown in green. This density corresponds to detergent regions with lower electron density than the aqueous solvent forming distinct parallel layers. Electron density for one protein particle is depicted as a yellow surface, showing that protein particles and detergent layers colocalize in the crystal.
