Figure 3

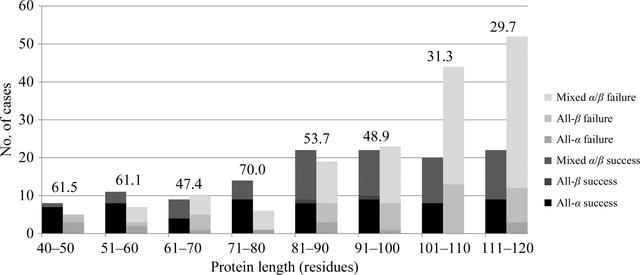

Characteristics of targets and their influence on MR success. In each of the size-range bins shown, the ensembles are divided into successes (left bars, dark colours) and failures (right bars, light colours). The percentage success rate in each size range is shown above the bars: larger targets are generally harder but successes are seen up to the upper size limit. Shades indicate secondary-structure classes derived from PSIPRED predictions and show that all-[alpha] targets are usually successful and mixed [alpha]/[beta] targets are often successful, but that all-[beta] targets generally fail.  [article HTML]
