Figure 1

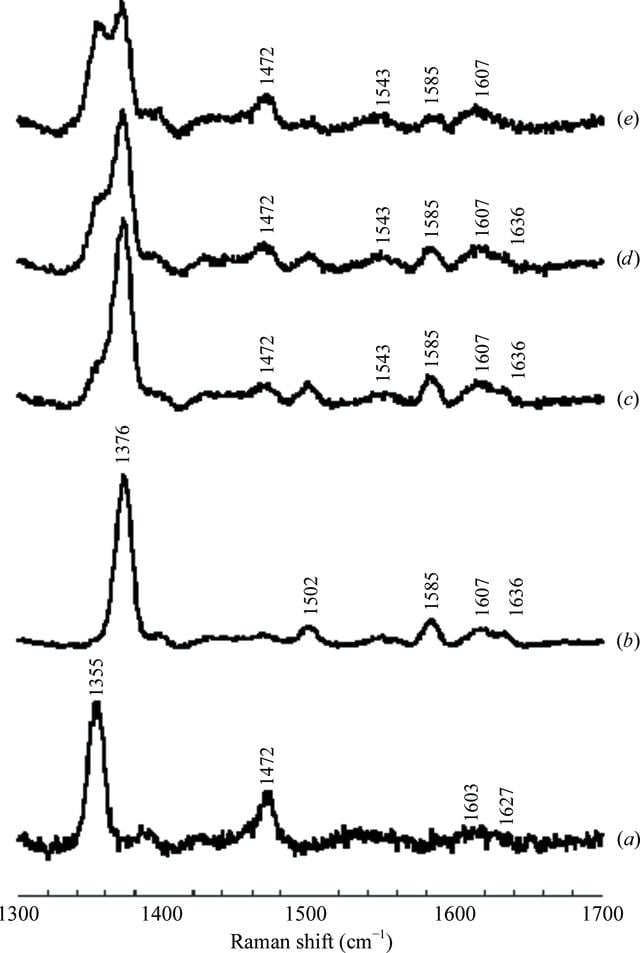

Resonance Raman spectra of HbTb crystals in the deoxygenated form (a), the fully nitrosylated form (NO-HbTb) (b) and the partially ligated forms NO_x1-HbTb (c), NO_x2-HbTb (d) and NO_x3-HbTb (e) arising from X-ray exposure at three different doses: 4.0, 7.6 and 11.2 MGy, respectively. The excitation line is 405 nm (5 mW at the sample) and the exposure time is 300 s. The spectral resolution is 8 cm-1.  [article HTML]
