Figure 7

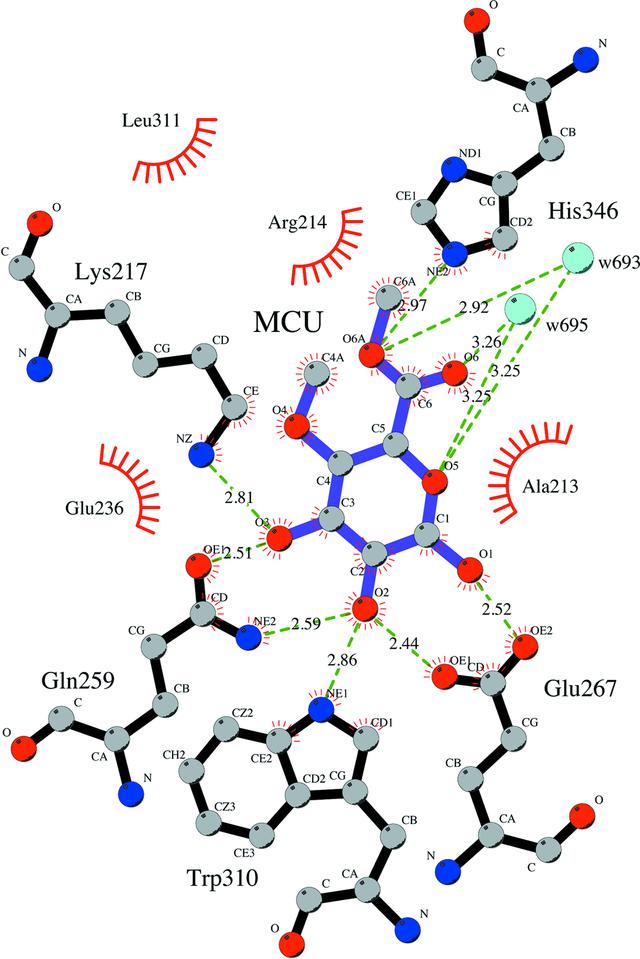

LIGPLOT diagram of MCU interacting with the active-site residue lying in the vicinity. The substrate-analogue bonds are shown in purple, while bonds of the residues lining the site are shown in black. Hydrogen bonds are shown as black dashed lines with distances indicated in Å. Additional residues forming van der Waals interactions with MCU are represented by red semicircles with radiating spokes.
