Figure 2

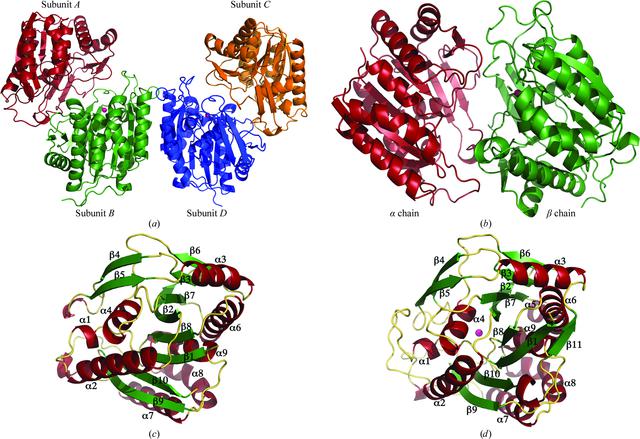

The overall structure and subunit fold of APD. (a) Ribbon model of an APD tetramer with an α2β2 assembly. (b) Ribbon model of an αβ dimer. (c) Fold of the α subunit. (d) Fold of the β subunit. The iron centre is represented by a magenta sphere.
