Acta Cryst. (2003). E59, m494-m496  [ doi:10.1107/S1600536803012868 ]

[-10,21-Di-tert-butyl-4(S),5(S),15(S),16(S)-tetraphenyl-3,6,14,17-tetraazatricyclo[17.3.1.18,12]tetracosa-1(23),2,6,8,10,12(24),13,17,19,21-decaene-23,24-diolato](-ethylene glycol)dinickel(II) diperchlorate dihydrate

J.-C. Wu, Y.-Z. Li, N. Tang and M.-Y. Tan

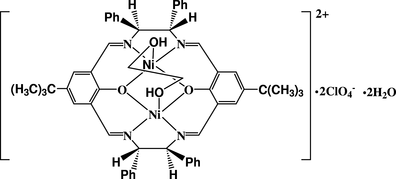

Abstract: In the title compound, [Ni₂(C₅₂H₅₀N₄O₂)(C₂H₆O₂)](ClO₄)₂·2H₂O, the two Ni atoms are bridged by two O atoms from the Robson macrocyclic ligand, forming a parallelogram, which has a twofold axis. The macrocyclic plane is formed from an Ni₂O₂ center and four N atoms from the ligand. Above the macrocyclic plane an ethylene glycol molecule bridges the two Ni atoms, and the coordination geometry around each Ni atom is square pyramidal.

Online 24 June 2003
