Acta Cryst. (2004). E60, m1314-m1316  [ doi:10.1107/S1600536804020458 ]

-Aqua-bis(-2'-carboxybiphenyl-2-carboxylato-²O:O')bis[bis(2'-carboxybiphenyl-2-carboxylato-O)(1,10-phenanthroline-²N,N')cobalt(II)]

Q. Miao, M.-L. Hu and F. Chen

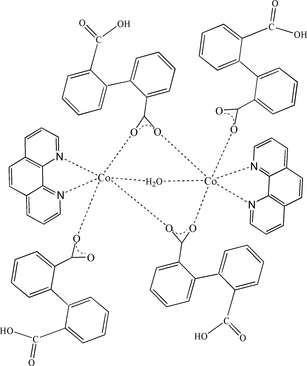

Abstract: In the title complex, [Co₂(C₁₄H₉O₄)₄(C₁₂H₈N₂)₂(H₂O)], each Co²⁺ cation is surrounded by two N atoms from a 1,10-phenanthroline (phen) ligand and four O atoms [one from a water molecule, one from a monodentate 2'-carboxybiphenyl-2-carboxylate (Hbpdc) ligand and two from two bridging Hbpdc ligands), thus forming a distorted CoO₄N₂ octahedron. The two Co²⁺ cations are bridged by two Hbpdc anions via their carboxylate groups to produce an eight-membered dinuclear ring. The Co centres are also bridged by a water molecule, this latter species lying on a twofold axis.

Online 28 August 2004
