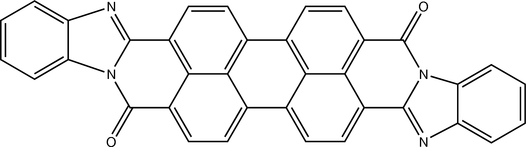

The title compound, C36H16N4O2, is the trans form of a benzimidazole perylene derivative used as a black pigment. The molecule is entirely planar and possesses a center of symmetry. The molecules are oriented in the same direction and are stacked with a considerable overlap of the perylene imide skeleton along the a axis.
Supporting information
CCDC reference: 270503
Key indicators
- Single-crystal X-ray study
- T = 93 K
- Mean (C-C) = 0.012 Å
- R factor = 0.102
- wR factor = 0.222
- Data-to-parameter ratio = 9.5
checkCIF/PLATON results
No syntax errors found
Alert level A
PLAT026_ALERT_3_A Ratio Observed / Unique Reflections too Low .... 28 Perc.
| Author Response: The single crystal of the needle was slightly curved and the
crystallinity was rather poor.
|
PLAT029_ALERT_3_A _diffrn_measured_fraction_theta_full Low ....... 0.91
| Author Response: A two-dimensional detector(IP) was used together with Cu target
as radiation.
|
Alert level B
ABSTM02_ALERT_3_B The ratio of expected to reported Tmax/Tmin(RR') is < 0.75
Tmin and Tmax reported: 0.490 0.960
Tmin' and Tmax expected: 0.716 0.960
RR' = 0.684
Please check that your absorption correction is appropriate.
PLAT061_ALERT_3_B Tmax/Tmin Range Test RR' too Large ............. 0.68
PLAT340_ALERT_3_B Low Bond Precision on C-C bonds (x 1000) Ang ... 12
Alert level C
REFLT03_ALERT_3_C Reflection count < 95% complete
From the CIF: _diffrn_reflns_theta_max 68.20
From the CIF: _diffrn_reflns_theta_full 0.00
From the CIF: _reflns_number_total 1831
TEST2: Reflns within _diffrn_reflns_theta_max
Count of symmetry unique reflns 2034
Completeness (_total/calc) 90.02%
RFACG01_ALERT_3_C The value of the R factor is > 0.10
R factor given 0.102
RINTA01_ALERT_3_C The value of Rint is greater than 0.10
Rint given 0.106
PLAT020_ALERT_3_C The value of Rint is greater than 0.10 ......... 0.11
PLAT022_ALERT_3_C Ratio Unique / Expected Reflections too Low .... 0.90
PLAT088_ALERT_3_C Poor Data / Parameter Ratio .................... 9.49
PLAT155_ALERT_4_C The Triclinic Unitcell is NOT Reduced .......... ?
PLAT333_ALERT_2_C Large Average Benzene C-C Dist. C5 -C7_a 1.43 Ang.
2 ALERT level A = In general: serious problem
3 ALERT level B = Potentially serious problem
8 ALERT level C = Check and explain
0 ALERT level G = General alerts; check
0 ALERT type 1 CIF construction/syntax error, inconsistent or missing data
1 ALERT type 2 Indicator that the structure model may be wrong or deficient
11 ALERT type 3 Indicator that the structure quality may be low
1 ALERT type 4 Improvement, methodology, query or suggestion
Data collection: PROCESS-AUTO (Rigaku, 1998); cell refinement: PROCESS-AUTO; data reduction: TEXSAN (Molecular Structure Corporation, 2001); program(s) used to solve structure: SHELXS97 (Sheldrick, 1997); program(s) used to refine structure: TEXSAN; molecular graphics: ORTEPIII (Burnett & Johnson, 1996); software used to prepare material for publication: TEXSAN.
Dibenzimidazo[2,1 - a:2',1'-a']anthra[2,1,9-def:6,5,10 - d'e'f']diisoquinoline-
10,21-dione
top
Crystal data top
C36H16N4O2 | Z = 1 |
Mr = 536.53 | F(000) = 276.00 |
Triclinic, P1 | Dx = 1.602 Mg m−3 |
Hall symbol: -P 1 | Cu Kα radiation, λ = 1.5418 Å |
a = 4.729 (2) Å | Cell parameters from 3329 reflections |
b = 8.282 (2) Å | θ = 3.0–68.2° |
c = 14.693 (4) Å | µ = 0.82 mm−1 |
α = 89.35 (2)° | T = 93 K |
β = 91.15 (3)° | Needle, black |
γ = 104.83 (3)° | 0.40 × 0.05 × 0.05 mm |
V = 556.2 (3) Å3 | |
Data collection top
Rigaku R-AXIS RAPID Imaging Plate diffractometer | 505 reflections with F2 > 2σ(F2) |
Detector resolution: 10.00 pixels mm-1 | Rint = 0.106 |
48 frames, δ ω = 15° scans | θmax = 68.2° |
Absorption correction: multi-scan (ABSCOR; Higashi, 1995) | h = −4→4 |
Tmin = 0.490, Tmax = 0.960 | k = −9→9 |
5005 measured reflections | l = −17→17 |
1831 independent reflections | |
Refinement top
Refinement on F2 | H-atom parameters not refined |
R[F2 > 2σ(F2)] = 0.102 | w = 1/[σ2(Fo2) + {0.042[max(Fo2,0) + 2Fc2]/3)2} |
wR(F2) = 0.222 | (Δ/σ)max < 0.001 |
S = 0.93 | Δρmax = 0.41 e Å−3 |
1804 reflections | Δρmin = −0.41 e Å−3 |
190 parameters | |
Special details top
Refinement. Refinement using reflections with F2 > -3.0 σ(F2). The
weighted R-factor (wR) and goodness of fit (S) are based
on F2. R-factor (gt) are based on F. The threshold
expression of F2 > σ(F2) is used only for calculating
R-factor (gt). |
Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top | x | y | z | Uiso*/Ueq | |
O1 | 0.777 (1) | 0.5903 (7) | 0.3464 (4) | 0.052 (2) | |
N1 | 0.756 (2) | 0.3442 (10) | 0.2746 (5) | 0.043 (3) | |
N2 | 0.756 (2) | 0.1001 (9) | 0.2127 (5) | 0.049 (3) | |
C1 | 0.672 (2) | 0.495 (1) | 0.2836 (6) | 0.048 (3) | |
C2 | 0.479 (2) | 0.531 (1) | 0.2123 (5) | 0.040 (3) | |
C3 | 0.382 (2) | 0.674 (1) | 0.2136 (6) | 0.046 (3) | |
C4 | 0.202 (2) | 0.715 (1) | 0.1513 (6) | 0.041 (3) | |
C5 | 0.094 (2) | 0.610 (1) | 0.0749 (6) | 0.043 (3) | |
C6 | 0.187 (2) | 0.456 (1) | 0.0687 (7) | 0.048 (3) | |
C7 | 0.097 (2) | 0.350 (1) | −0.0062 (5) | 0.041 (3) | |
C8 | 0.194 (2) | 0.206 (1) | −0.0101 (5) | 0.041 (3) | |
C9 | 0.366 (2) | 0.165 (1) | 0.0608 (6) | 0.051 (3) | |
C10 | 0.469 (2) | 0.268 (1) | 0.1351 (6) | 0.045 (3) | |
C11 | 0.649 (2) | 0.229 (1) | 0.2037 (6) | 0.045 (3) | |
C12 | 0.377 (2) | 0.421 (1) | 0.1390 (6) | 0.042 (3) | |
C13 | 0.923 (2) | 0.119 (1) | 0.2945 (6) | 0.043 (3) | |
C14 | 1.074 (2) | 0.016 (1) | 0.3319 (6) | 0.049 (3) | |
C15 | 1.236 (2) | 0.075 (1) | 0.4103 (6) | 0.052 (4) | |
C16 | 1.248 (2) | 0.229 (1) | 0.4509 (6) | 0.047 (3) | |
C17 | 1.090 (2) | 0.325 (1) | 0.4121 (6) | 0.046 (3) | |
C18 | 0.935 (2) | 0.276 (1) | 0.3311 (6) | 0.042 (3) | |
H1 | 0.4468 | 0.7492 | 0.2625 | 0.0554* | |
H2 | 0.1447 | 0.8160 | 0.1578 | 0.0487* | |
H3 | 0.1438 | 0.1349 | −0.0613 | 0.0486* | |
H4 | 0.4157 | 0.0606 | 0.0580 | 0.0609* | |
H5 | 1.0697 | −0.0892 | 0.3065 | 0.0586* | |
H6 | 1.3450 | 0.0059 | 0.4383 | 0.0626* | |
H7 | 1.3649 | 0.2642 | 0.5039 | 0.0569* | |
H8 | 1.0836 | 0.4272 | 0.4399 | 0.0548* | |
Atomic displacement parameters (Å2) top | U11 | U22 | U33 | U12 | U13 | U23 |
O1 | 0.086 (6) | 0.032 (4) | 0.033 (3) | 0.005 (4) | −0.003 (3) | −0.002 (3) |
N1 | 0.048 (6) | 0.050 (5) | 0.032 (4) | 0.015 (4) | −0.008 (4) | −0.012 (4) |
N2 | 0.060 (6) | 0.041 (5) | 0.046 (5) | 0.008 (4) | 0.018 (4) | 0.003 (4) |
C1 | 0.056 (8) | 0.037 (6) | 0.041 (6) | −0.008 (5) | 0.010 (5) | 0.013 (5) |
C2 | 0.048 (7) | 0.043 (6) | 0.026 (5) | 0.005 (5) | 0.007 (5) | −0.005 (4) |
C3 | 0.045 (7) | 0.065 (7) | 0.030 (5) | 0.016 (5) | 0.001 (5) | −0.023 (5) |
C4 | 0.049 (7) | 0.034 (5) | 0.037 (5) | 0.006 (5) | −0.001 (5) | 0.000 (4) |
C5 | 0.052 (7) | 0.043 (6) | 0.029 (5) | 0.002 (5) | 0.012 (5) | −0.006 (4) |
C6 | 0.060 (8) | 0.039 (6) | 0.049 (6) | 0.014 (5) | 0.027 (5) | 0.005 (5) |
C7 | 0.038 (7) | 0.070 (7) | 0.018 (4) | 0.021 (5) | 0.012 (4) | 0.011 (5) |
C8 | 0.053 (7) | 0.050 (6) | 0.020 (5) | 0.016 (5) | −0.001 (4) | −0.015 (4) |
C9 | 0.059 (8) | 0.046 (6) | 0.044 (6) | 0.007 (5) | 0.000 (5) | −0.018 (5) |
C10 | 0.037 (7) | 0.045 (6) | 0.044 (6) | −0.006 (5) | −0.012 (5) | −0.009 (5) |
C11 | 0.051 (7) | 0.046 (7) | 0.035 (5) | 0.009 (5) | 0.007 (5) | 0.004 (5) |
C12 | 0.045 (7) | 0.050 (6) | 0.036 (5) | 0.022 (5) | 0.004 (5) | −0.002 (5) |
C13 | 0.062 (7) | 0.050 (6) | 0.019 (4) | 0.018 (5) | 0.006 (4) | 0.001 (4) |
C14 | 0.057 (7) | 0.058 (7) | 0.030 (5) | 0.012 (5) | 0.000 (5) | −0.006 (5) |
C15 | 0.067 (8) | 0.059 (7) | 0.033 (6) | 0.021 (6) | 0.012 (6) | −0.001 (5) |
C16 | 0.055 (7) | 0.058 (7) | 0.031 (5) | 0.017 (6) | 0.011 (5) | 0.006 (5) |
C17 | 0.050 (7) | 0.041 (6) | 0.046 (6) | 0.012 (5) | 0.003 (5) | −0.006 (5) |
C18 | 0.036 (7) | 0.040 (6) | 0.051 (6) | 0.013 (5) | 0.001 (5) | −0.003 (5) |
Geometric parameters (Å, º) top
O1—C1 | 1.233 (10) | C7—C8 | 1.38 (1) |
N1—C1 | 1.41 (1) | C8—C9 | 1.40 (1) |
N1—C11 | 1.41 (1) | C8—H3 | 0.950 |
N1—C18 | 1.39 (1) | C9—C10 | 1.40 (1) |
N2—C11 | 1.30 (1) | C9—H4 | 0.950 |
N2—C13 | 1.42 (1) | C10—C11 | 1.39 (1) |
C1—C2 | 1.45 (1) | C10—C12 | 1.45 (1) |
C2—C3 | 1.38 (1) | C13—C14 | 1.35 (1) |
C2—C12 | 1.41 (1) | C13—C18 | 1.41 (1) |
C3—C4 | 1.34 (1) | C14—C15 | 1.39 (1) |
C3—H1 | 0.946 | C14—H5 | 0.950 |
C4—C5 | 1.43 (1) | C15—C16 | 1.40 (1) |
C4—H2 | 0.951 | C15—H6 | 0.952 |
C5—C6 | 1.46 (1) | C16—C17 | 1.34 (1) |
C5—C7i | 1.43 (1) | C16—H7 | 0.952 |
C6—C7 | 1.41 (1) | C17—C18 | 1.39 (1) |
C6—C12 | 1.43 (1) | C17—H8 | 0.951 |
| | | |
O1···C16ii | 3.37 (1) | C4···C8vii | 3.48 (1) |
O1···C3iii | 3.41 (1) | C5···C9vii | 3.41 (1) |
O1···C14iv | 3.45 (1) | C5···C8vii | 3.47 (1) |
O1···C4iii | 3.53 (1) | C5···C12v | 3.49 (1) |
O1···C17v | 3.57 (1) | C6···C11v | 3.41 (1) |
N1···C12iii | 3.50 (1) | C6···C7vii | 3.49 (1) |
N1···C2iii | 3.51 (1) | C6···C10v | 3.51 (2) |
N1···C15v | 3.51 (1) | C6···C6vii | 3.53 (2) |
N1···C16v | 3.52 (1) | C7···C12vii | 3.36 (1) |
N1···C3iii | 3.59 (1) | C7···C9v | 3.56 (1) |
N2···C10iii | 3.51 (1) | C7···C10v | 3.57 (1) |
N2···C3vi | 3.52 (1) | C8···C8viii | 3.45 (2) |
N2···C12iii | 3.60 (1) | C8···C9viii | 3.58 (1) |
C1···C4iii | 3.34 (1) | C10···C13v | 3.49 (1) |
C1···C17v | 3.36 (1) | C11···C14v | 3.43 (1) |
C1···C3iii | 3.47 (1) | C11···C12iii | 3.55 (1) |
C1···C16v | 3.57 (1) | C11···C13v | 3.60 (1) |
C1···C18v | 3.57 (1) | C12···C18v | 3.56 (1) |
C2···C18v | 3.38 (1) | C15···C15ix | 3.49 (2) |
C2···C5iii | 3.49 (1) | C15···C18iii | 3.52 (1) |
C2···C4iii | 3.50 (1) | C15···C16ix | 3.59 (1) |
| | | |
C1—N1—C11 | 122.7 (8) | C8—C9—H4 | 118.4 |
C1—N1—C18 | 129.4 (8) | C10—C9—H4 | 118.0 |
C11—N1—C18 | 107.7 (8) | C9—C10—C11 | 123.7 (10) |
C11—N2—C13 | 107.8 (7) | C9—C10—C12 | 116.5 (9) |
O1—C1—N1 | 119.2 (9) | C11—C10—C12 | 119.8 (8) |
O1—C1—C2 | 124.7 (9) | N1—C11—N2 | 110.3 (9) |
N1—C1—C2 | 116.0 (8) | N1—C11—C10 | 120.3 (9) |
C1—C2—C3 | 121.2 (8) | N2—C11—C10 | 129.3 (9) |
C1—C2—C12 | 122.6 (9) | C2—C12—C6 | 122.9 (9) |
C3—C2—C12 | 116.2 (9) | C2—C12—C10 | 118.5 (9) |
C2—C3—C4 | 124.6 (8) | C6—C12—C10 | 118.6 (8) |
C2—C3—H1 | 117.6 | N2—C13—C14 | 129.4 (8) |
C4—C3—H1 | 117.8 | N2—C13—C18 | 108.5 (8) |
C3—C4—C5 | 121.8 (9) | C14—C13—C18 | 122.0 (9) |
C3—C4—H2 | 119.0 | C13—C14—C15 | 115.8 (9) |
C5—C4—H2 | 119.2 | C13—C14—H5 | 122.0 |
C4—C5—C6 | 116.9 (9) | C15—C14—H5 | 122.2 |
C4—C5—C7i | 123.3 (9) | C14—C15—C16 | 124.5 (10) |
C6—C5—C7i | 119.9 (8) | C14—C15—H6 | 117.9 |
C5—C6—C7 | 119.7 (10) | C16—C15—H6 | 117.5 |
C5—C6—C12 | 117.6 (9) | C15—C16—C17 | 117.6 (9) |
C7—C6—C12 | 122.6 (9) | C15—C16—H7 | 121.2 |
C5i—C7—C6 | 120.4 (9) | C17—C16—H7 | 121.2 |
C5i—C7—C8 | 121.9 (8) | C16—C17—C18 | 120.3 (8) |
C6—C7—C8 | 117.7 (9) | C16—C17—H8 | 119.9 |
C7—C8—C9 | 120.8 (7) | C18—C17—H8 | 119.8 |
C7—C8—H3 | 119.6 | N1—C18—C13 | 105.4 (8) |
C9—C8—H3 | 119.6 | N1—C18—C17 | 134.7 (9) |
C8—C9—C10 | 123.6 (9) | C13—C18—C17 | 119.7 (8) |
| | | |
C4—C5—C7i—C8i | 0 (1) | | |
Symmetry codes: (i) −x, −y+1, −z; (ii) −x+2, −y+1, −z+1; (iii) x+1, y, z; (iv) x, y+1, z; (v) x−1, y, z; (vi) x, y−1, z; (vii) −x+1, −y+1, −z; (viii) −x, −y, −z; (ix) −x+2, −y, −z+1. |
