Acta Cryst. (2005). E61, m2052-m2054  [ doi:10.1107/S1600536805029466 ]

catena-Poly[[bis(O,O'-dicyclohexyldithiophosphato-²,S,S')zinc(II)]--1,2-bis(4-pyridylmethylene)hydrazine-²N:N']

D. Chen, C. S. Lai and E. R. T. Tiekink

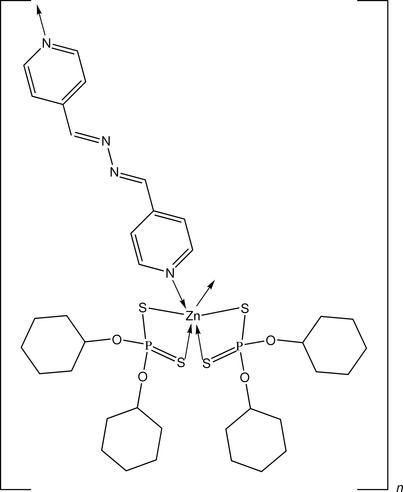

Abstract: The Zn atom in the polymeric title complex, [Zn(C₁₂H₂₂O₂PS₂)₂(C₁₂H₁₀N₄)]_n, lies on a twofold axis and exists in a distorted octahedral geometry defined by a cis-N₂O₄ donor set, provided by two S,S-chelating dithiophosphate ligands and two N atoms derived from two bridging dipyridyl-type ligands, each of which is disposed about a centre of inversion. The resultant polymeric structure has a zigzag topology.

Online 21 September 2005
