Acta Cryst. (2005). E61, m2047-m2049  [ doi:10.1107/S1600536805028631 ]

catena-Poly[[bis(-thenoyltrifluoroacetonato)copper(II)]--1,4-di-4-pyridyl-2,3-diazabuta-1,3-diene]

W. J. Perkins, T. Maxwell, A. M. Goforth, M. D. Smith, L. R. Peterson Jr and H.-C. zur Loye

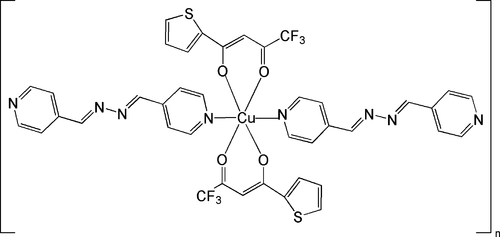

Abstract: In the one-dimensional title polymer, [Cu(C₈H₄F₃O₂S)₂(C₁₂H₁₀N₄)]_n or [Cu(L)₂(tta)₂] [tta is -thenoyltrifluoroacetonato and L is 1,4-bis(4-pyridyl)-2,3-diaza-1,3-butadiene], Cu²⁺ lies on a center of inversion. It is axially coordinated by two pyridyl N atoms from two different L ligands and equatorially coordinated by four O atoms from two chelating tta ligands. The ligand L propagates the one-dimensional chain structure by serving as a bridging ligand between two Cu octahedra via Cu-N coordinate bonds.

Online 21 September 2005
