Acta Cryst. (2006). E62, m1689-m1690  [ doi:10.1107/S1600536806023944 ]

Tetrakis[-1,3-bis(4-methyl-2-pyridylimino)isoindolinato]trimercury(II) dinitrate methanol tetrasolvate

M. Wicholas, B. L. Dietrich, O. P. Anderson and A. la Cour

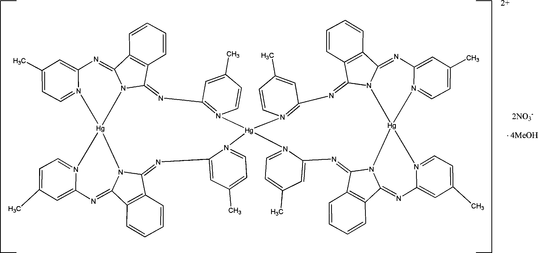

Abstract: The title compound, [Hg₃(C₂₀H₁₆N₅)₄](NO₃)₂·4CH₃OH, consists of a trinuclear Hg^II dipositive cation, [Hg₃(4'-MeL)₄]²⁺, two nitrate anions and four occluded methanol molecules. The Hg atoms of the cation lie on a crystallographic twofold axis and are tetrahedrally coordinated by nitrogen-donor atoms of the bridging 1,3-bis(4-methyl-2-pyridylimino)isoindoline ligands. The central Hg atom is coordinated by four pyridine N atoms, one from each of the 4'-MeL^- ligands, while the two outer Hg atoms are each coordinated by two pyridine and two pyrrole N atoms.

Online 30 June 2006
