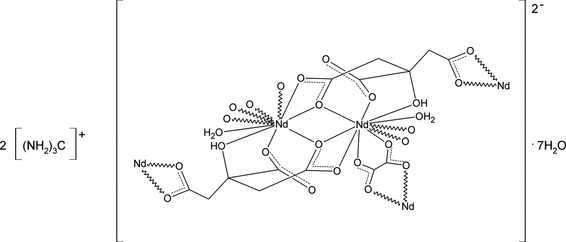

(CH6N3)2[Nd2(C6H5O7)2(C2O4)(H2O)2]·7H2O | Z = 1 |
Mr = 1037.02 | F(000) = 514 |
Triclinic, P1 | Dx = 1.980 Mg m−3 |
Hall symbol: -P 1 | Mo Kα radiation, λ = 0.71073 Å |
a = 8.2017 (4) Å | Cell parameters from 8223 reflections |
b = 10.0447 (3) Å | θ = 3.2–25.0° |
c = 11.0222 (5) Å | µ = 3.06 mm−1 |
α = 87.892 (3)° | T = 298 K |
β = 89.505 (2)° | Plate, light pink |
γ = 73.464 (3)° | 0.16 × 0.06 × 0.02 mm |
V = 869.90 (6) Å3 |
Nonius KappaCCD area-detector diffractometer | 3033 independent reflections |
Radiation source: fine-focus sealed tube | 2588 reflections with I > 2σ(I) |
Graphite monochromator | Rint = 0.055 |
φ and ω scans | θmax = 25.0°, θmin = 3.2° |
Absorption correction: multi-scan (MULABS in PLATON; Spek, 2003) | h = −9→9 |
Tmin = 0.790, Tmax = 0.922 | k = −11→11 |
8213 measured reflections | l = −12→13 |
Refinement on F2 | Primary atom site location: structure-invariant direct methods |
Least-squares matrix: full | Secondary atom site location: difference Fourier map |
R[F2 > 2σ(F2)] = 0.033 | Hydrogen site location: mixed |
wR(F2) = 0.074 | H atoms treated by a mixture of independent and constrained refinement |
S = 1.02 | w = 1/[σ2(Fo2) + (0.0305P)2] where P = (Fo2 + 2Fc2)/3 |
3033 reflections | (Δ/σ)max = 0.001 |
248 parameters | Δρmax = 1.15 e Å−3 |
34 restraints | Δρmin = −1.01 e Å−3 |
Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes. |
Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger. |
x | y | z | Uiso*/Ueq | Occ. (<1) | |
Nd | 0.39086 (3) | 0.33312 (3) | 0.54647 (3) | 0.02134 (11) | |
O1 | 0.6334 (5) | 0.1586 (3) | 0.4271 (3) | 0.0265 (9) | |
H1 | 0.609 (6) | 0.086 (3) | 0.445 (4) | 0.018 (14)* | |
H1A | 0.730 (5) | 0.318 (4) | 0.637 (5) | 0.022* | |
H1B | 0.721 (5) | 0.190 (2) | 0.675 (5) | 0.022* | |
O2 | 0.3158 (5) | 0.2488 (4) | 0.3549 (4) | 0.0325 (9) | |
O3 | 0.3757 (6) | 0.2243 (5) | 0.1602 (4) | 0.0589 (13) | |
O4 | 0.5334 (4) | 0.4418 (3) | 0.3896 (3) | 0.0245 (8) | |
O5 | 0.7276 (5) | 0.5007 (3) | 0.2791 (4) | 0.0350 (10) | |
O6 | 0.5883 (5) | −0.0848 (3) | 0.4046 (4) | 0.0394 (11) | |
O7 | 0.6572 (5) | −0.2009 (3) | 0.2389 (3) | 0.0306 (9) | |
O8 | 0.0905 (4) | 0.3351 (3) | 0.5691 (3) | 0.0286 (9) | |
O9 | −0.1821 (4) | 0.4568 (3) | 0.5463 (4) | 0.0316 (9) | |
O1W | 0.6641 (5) | 0.2722 (4) | 0.6632 (4) | 0.0333 (9) | |
O2W | 0.5457 (8) | 0.2426 (7) | −0.0481 (5) | 0.0881 (19) | |
O3W | 0.1243 (11) | −0.0616 (8) | 0.0915 (8) | 0.131 (3) | |
O4W | 0.127 (4) | 0.042 (4) | 0.345 (2) | 0.128 (6) | 0.50 |
O4W' | 0.152 (4) | 0.024 (4) | 0.296 (2) | 0.128 (6) | 0.50 |
O5W | −0.010 (2) | 0.0992 (17) | 0.5153 (18) | 0.149 (6) | 0.50 |
N1 | 0.0516 (7) | 0.4560 (6) | 0.1574 (5) | 0.0514 (15) | |
H1C | −0.0515 | 0.4677 | 0.1813 | 0.062* | |
H1D | 0.1189 | 0.3734 | 0.1514 | 0.062* | |
N2 | 0.2635 (7) | 0.5457 (6) | 0.0876 (5) | 0.0556 (16) | |
H2A | 0.3291 | 0.4631 | 0.0782 | 0.067* | |
H2B | 0.2995 | 0.6165 | 0.0696 | 0.067* | |
N3 | 0.0046 (8) | 0.6918 (6) | 0.1386 (6) | 0.0658 (18) | |
H3C | −0.0987 | 0.7048 | 0.1624 | 0.079* | |
H3D | 0.0419 | 0.7619 | 0.1204 | 0.079* | |
C1 | 0.6111 (7) | 0.1685 (5) | 0.2990 (5) | 0.0219 (11) | |
C2 | 0.4193 (7) | 0.2173 (5) | 0.2686 (5) | 0.0274 (12) | |
C3 | 0.6988 (7) | 0.2752 (5) | 0.2500 (5) | 0.0302 (13) | |
H3A | 0.8207 | 0.2352 | 0.2590 | 0.036* | |
H3B | 0.6748 | 0.2907 | 0.1638 | 0.036* | |
C4 | 0.6496 (7) | 0.4141 (5) | 0.3087 (5) | 0.0250 (12) | |
C5 | 0.6940 (7) | 0.0280 (5) | 0.2420 (5) | 0.0285 (13) | |
H5A | 0.6664 | 0.0365 | 0.1562 | 0.034* | |
H5B | 0.8165 | 0.0079 | 0.2492 | 0.034* | |
C6 | 0.6420 (7) | −0.0929 (5) | 0.2966 (5) | 0.0254 (12) | |
C7 | −0.0251 (7) | 0.4399 (5) | 0.5335 (5) | 0.0252 (12) | |
C8 | 0.1062 (9) | 0.5641 (8) | 0.1300 (6) | 0.0495 (17) |
U11 | U22 | U33 | U12 | U13 | U23 | |
Nd | 0.01783 (16) | 0.01596 (15) | 0.02981 (18) | −0.00419 (11) | 0.00271 (11) | −0.00103 (10) |
O1 | 0.032 (2) | 0.0182 (18) | 0.030 (2) | −0.0082 (16) | 0.0035 (17) | −0.0016 (15) |
O2 | 0.026 (2) | 0.038 (2) | 0.037 (2) | −0.0118 (17) | 0.0010 (19) | −0.0050 (17) |
O3 | 0.049 (3) | 0.082 (3) | 0.033 (3) | 0.003 (3) | −0.008 (2) | −0.009 (2) |
O4 | 0.024 (2) | 0.0199 (17) | 0.029 (2) | −0.0064 (15) | 0.0076 (17) | −0.0032 (15) |
O5 | 0.040 (2) | 0.0208 (19) | 0.050 (3) | −0.0169 (18) | 0.016 (2) | −0.0037 (17) |
O6 | 0.057 (3) | 0.0217 (19) | 0.041 (3) | −0.0135 (19) | 0.021 (2) | −0.0036 (16) |
O7 | 0.038 (2) | 0.0168 (18) | 0.038 (2) | −0.0089 (16) | 0.0008 (18) | −0.0060 (16) |
O8 | 0.0176 (19) | 0.0215 (18) | 0.044 (2) | −0.0017 (16) | 0.0004 (17) | 0.0065 (16) |
O9 | 0.020 (2) | 0.0267 (19) | 0.047 (3) | −0.0071 (16) | 0.0010 (18) | 0.0069 (17) |
O1W | 0.029 (2) | 0.031 (2) | 0.042 (2) | −0.0118 (17) | −0.0060 (18) | 0.0056 (18) |
O2W | 0.099 (4) | 0.128 (5) | 0.057 (3) | −0.064 (4) | −0.011 (3) | 0.004 (3) |
O3W | 0.114 (6) | 0.131 (5) | 0.144 (6) | −0.032 (5) | 0.023 (5) | 0.021 (5) |
O4W | 0.109 (8) | 0.146 (8) | 0.157 (12) | −0.080 (6) | −0.015 (9) | −0.007 (9) |
O4W' | 0.109 (8) | 0.146 (8) | 0.157 (12) | −0.080 (6) | −0.015 (9) | −0.007 (9) |
O5W | 0.145 (10) | 0.128 (9) | 0.186 (11) | −0.057 (8) | −0.022 (8) | −0.013 (8) |
N1 | 0.034 (3) | 0.063 (4) | 0.055 (4) | −0.012 (3) | 0.004 (3) | 0.006 (3) |
N2 | 0.036 (3) | 0.055 (3) | 0.074 (4) | −0.008 (3) | 0.017 (3) | −0.004 (3) |
N3 | 0.052 (4) | 0.056 (4) | 0.082 (5) | −0.002 (3) | 0.022 (4) | −0.013 (3) |
C1 | 0.027 (3) | 0.016 (2) | 0.022 (3) | −0.006 (2) | 0.005 (2) | −0.003 (2) |
C2 | 0.033 (3) | 0.023 (3) | 0.027 (3) | −0.010 (2) | −0.002 (3) | −0.001 (2) |
C3 | 0.038 (3) | 0.024 (3) | 0.033 (3) | −0.014 (2) | 0.015 (3) | −0.007 (2) |
C4 | 0.027 (3) | 0.022 (3) | 0.028 (3) | −0.009 (2) | 0.001 (2) | −0.004 (2) |
C5 | 0.035 (3) | 0.016 (2) | 0.034 (3) | −0.007 (2) | 0.011 (3) | −0.005 (2) |
C6 | 0.019 (3) | 0.025 (3) | 0.030 (3) | −0.003 (2) | 0.002 (2) | 0.000 (2) |
C7 | 0.019 (3) | 0.023 (3) | 0.034 (3) | −0.006 (2) | 0.002 (2) | −0.003 (2) |
C8 | 0.039 (4) | 0.074 (5) | 0.034 (4) | −0.012 (4) | −0.002 (3) | −0.002 (3) |
Nd—O1 | 2.626 (3) | O9—Ndiii | 2.499 (3) |
Nd—O2 | 2.451 (4) | O1W—H1A | 0.841 (19) |
Nd—O4 | 2.470 (3) | O1W—H1B | 0.832 (19) |
Nd—O8 | 2.469 (3) | O4W—O4W' | 0.59 (5) |
Nd—O6i | 2.490 (3) | N1—C8 | 1.312 (8) |
Nd—O4ii | 2.630 (3) | N1—H1C | 0.8600 |
Nd—O5ii | 2.590 (4) | N1—H1D | 0.8600 |
Nd—O6i | 2.490 (3) | N2—C8 | 1.334 (8) |
Nd—O7i | 2.751 (4) | N2—H2A | 0.8600 |
Nd—O9iii | 2.499 (3) | N2—H2B | 0.8600 |
Nd—O1w | 2.503 (4) | N3—C8 | 1.322 (9) |
O1—C1 | 1.421 (6) | N3—H3C | 0.8600 |
O1—H1 | 0.82 (2) | N3—H3D | 0.8600 |
O2—C2 | 1.257 (6) | C1—C3 | 1.532 (6) |
O3—C2 | 1.244 (7) | C1—C5 | 1.536 (7) |
O4—C4 | 1.278 (6) | C1—C2 | 1.545 (8) |
O4—Ndii | 2.630 (3) | C3—C4 | 1.506 (7) |
O5—C4 | 1.251 (6) | C3—H3A | 0.9700 |
O5—Ndii | 2.590 (4) | C3—H3B | 0.9700 |
O6—C6 | 1.264 (6) | C4—Ndii | 2.986 (5) |
O6—Ndi | 2.490 (3) | C5—C6 | 1.502 (7) |
O7—C6 | 1.252 (6) | C5—H5A | 0.9700 |
O7—Ndi | 2.751 (4) | C5—H5B | 0.9700 |
O8—C7 | 1.253 (6) | C6—Ndi | 2.990 (5) |
O9—C7 | 1.257 (6) | C7—C7iii | 1.544 (9) |
O2—Nd—O8 | 74.68 (13) | C4ii—Nd—C6i | 111.20 (14) |
O2—Nd—O4 | 75.74 (12) | C1—O1—Nd | 114.2 (3) |
O8—Nd—O4 | 131.01 (12) | C1—O1—H1 | 102 (4) |
O2—Nd—O6i | 76.40 (13) | Nd—O1—H1 | 99 (4) |
O8—Nd—O6i | 77.01 (12) | C2—O2—Nd | 122.3 (3) |
O4—Nd—O6i | 131.17 (12) | C4—O4—Nd | 142.8 (3) |
O2—Nd—O9iii | 77.03 (13) | C4—O4—Ndii | 93.1 (3) |
O8—Nd—O9iii | 65.56 (10) | Nd—O4—Ndii | 115.56 (13) |
O4—Nd—O9iii | 70.31 (11) | C4—O5—Ndii | 95.7 (3) |
O6i—Nd—O9iii | 138.52 (13) | C6—O6—Ndi | 100.5 (3) |
O2—Nd—O1W | 131.35 (13) | C6—O7—Ndi | 88.4 (3) |
O8—Nd—O1W | 140.95 (12) | C7—O8—Nd | 119.7 (3) |
O4—Nd—O1W | 87.31 (12) | C7—O9—Ndiii | 120.1 (3) |
O6i—Nd—O1W | 82.04 (13) | Nd—O1W—H1A | 112 (3) |
O9iii—Nd—O1W | 138.94 (12) | Nd—O1W—H1B | 121 (3) |
O2—Nd—O5ii | 143.69 (13) | H1A—O1W—H1B | 108 (3) |
O8—Nd—O5ii | 74.54 (12) | C8—N1—H1C | 120.0 |
O4—Nd—O5ii | 111.83 (10) | C8—N1—H1D | 120.0 |
O6i—Nd—O5ii | 114.43 (12) | H1C—N1—H1D | 120.0 |
O9iii—Nd—O5ii | 73.02 (13) | C8—N2—H2A | 120.0 |
O1W—Nd—O5ii | 84.95 (13) | C8—N2—H2B | 120.0 |
O2—Nd—O1 | 62.10 (12) | H2A—N2—H2B | 120.0 |
O8—Nd—O1 | 128.18 (11) | C8—N3—H3C | 120.0 |
O4—Nd—O1 | 65.04 (10) | C8—N3—H3D | 120.0 |
O6i—Nd—O1 | 66.60 (11) | H3C—N3—H3D | 120.0 |
O9iii—Nd—O1 | 124.78 (12) | O1—C1—C3 | 107.0 (4) |
O1W—Nd—O1 | 69.36 (12) | O1—C1—C5 | 110.9 (4) |
O5ii—Nd—O1 | 154.08 (12) | C3—C1—C5 | 109.1 (4) |
O2—Nd—O4ii | 134.82 (11) | O1—C1—C2 | 109.5 (4) |
O8—Nd—O4ii | 116.37 (11) | C3—C1—C2 | 110.3 (4) |
O4—Nd—O4ii | 64.44 (13) | C5—C1—C2 | 110.0 (4) |
O6i—Nd—O4ii | 147.12 (13) | O3—C2—O2 | 123.6 (5) |
O9iii—Nd—O4ii | 70.33 (11) | O3—C2—C1 | 118.3 (5) |
O1W—Nd—O4ii | 68.98 (12) | O2—C2—C1 | 118.1 (5) |
O5ii—Nd—O4ii | 49.72 (10) | C4—C3—C1 | 116.3 (4) |
O1—Nd—O4ii | 114.22 (10) | C4—C3—H3A | 108.2 |
O2—Nd—O7i | 119.07 (11) | C1—C3—H3A | 108.2 |
O8—Nd—O7i | 69.27 (11) | C4—C3—H3B | 108.2 |
O4—Nd—O7i | 159.32 (12) | C1—C3—H3B | 108.2 |
O6i—Nd—O7i | 48.99 (11) | H3A—C3—H3B | 107.4 |
O9iii—Nd—O7i | 124.91 (11) | O5—C4—O4 | 120.5 (4) |
O1W—Nd—O7i | 72.08 (12) | O5—C4—C3 | 118.8 (5) |
O5ii—Nd—O7i | 65.82 (10) | O4—C4—C3 | 120.7 (4) |
O1—Nd—O7i | 107.45 (10) | O5—C4—Ndii | 59.6 (3) |
O4ii—Nd—O7i | 105.20 (10) | O4—C4—Ndii | 61.6 (2) |
O2—Nd—C4ii | 144.15 (13) | C3—C4—Ndii | 169.4 (4) |
O8—Nd—C4ii | 94.10 (13) | C6—C5—C1 | 115.3 (4) |
O4—Nd—C4ii | 87.76 (13) | C6—C5—H5A | 108.4 |
O6i—Nd—C4ii | 135.08 (14) | C1—C5—H5A | 108.4 |
O9iii—Nd—C4ii | 67.42 (14) | C6—C5—H5B | 108.4 |
O1W—Nd—C4ii | 78.06 (14) | C1—C5—H5B | 108.4 |
O5ii—Nd—C4ii | 24.63 (12) | H5A—C5—H5B | 107.5 |
O1—Nd—C4ii | 137.71 (13) | O7—C6—O6 | 120.7 (4) |
O4ii—Nd—C4ii | 25.30 (12) | O7—C6—C5 | 121.3 (5) |
O7i—Nd—C4ii | 86.47 (12) | O6—C6—C5 | 117.9 (5) |
O2—Nd—C6i | 96.48 (13) | O7—C6—Ndi | 66.9 (3) |
O8—Nd—C6i | 68.71 (12) | O6—C6—Ndi | 55.0 (2) |
O4—Nd—C6i | 153.03 (13) | C5—C6—Ndi | 164.8 (4) |
O6i—Nd—C6i | 24.55 (13) | O8—C7—O9 | 125.6 (4) |
O9iii—Nd—C6i | 133.91 (13) | O8—C7—C7iii | 118.6 (6) |
O1W—Nd—C6i | 78.57 (13) | O9—C7—C7iii | 115.8 (5) |
O5ii—Nd—C6i | 89.88 (13) | N1—C8—N3 | 120.9 (6) |
O1—Nd—C6i | 88.38 (12) | N1—C8—N2 | 119.9 (7) |
O4ii—Nd—C6i | 128.66 (13) | N3—C8—N2 | 119.2 (7) |
O7i—Nd—C6i | 24.74 (12) |
Symmetry codes: (i) −x+1, −y, −z+1; (ii) −x+1, −y+1, −z+1; (iii) −x, −y+1, −z+1. |
D—H···A | D—H | H···A | D···A | D—H···A |
O1—H1···O6 | 0.82 (2) | 1.85 (3) | 2.596 (5) | 151 (5) |
O1W—H1A···O9iv | 0.84 (2) | 1.99 (2) | 2.796 (5) | 162 (4) |
N1—H1C···O5v | 0.86 | 2.05 | 2.893 (7) | 166 |
N1—H1D···O3 | 0.86 | 2.21 | 2.993 (7) | 151 |
N2—H2B···O2Wvi | 0.86 | 2.16 | 2.995 (8) | 164 |
N3—H3C···O7vii | 0.86 | 2.14 | 2.964 (7) | 161 |
Symmetry codes: (iv) x+1, y, z; (v) x−1, y, z; (vi) −x+1, −y+1, −z; (vii) x−1, y+1, z. |
