Acta Cryst. (2006). E62, m2493-m2495  [ doi:10.1107/S160053680603515X ]

catena-Poly[[bis[bis(1H-benzimidazole-N³)zinc(II)]-₄-benzene-1,2,4,5-tetracarboxylato] monohydrate]

Z. An and R.-S. Wang

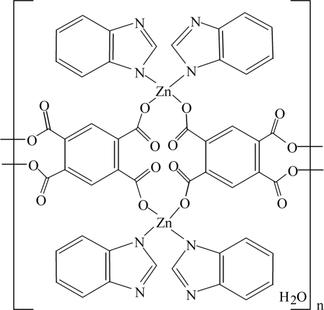

Abstract: In the title compound, {[Zn₂(C₁₀H₂O₈)(C₇H₆N₂)₄]·H₂O}_n, the Zn^II atom has a distorted tetrahedral geometry, defined by two N atoms from two benzimidazole ligands and two O atoms from two benzene-1,2,4,5-tetracarboxylate (btc) tetra-anions. The complete btc anion is generated by inversion symmetry. The polymeric structure exhibits one-dimensional double chains running along the [100] direction, which further extend into a three-dimensional supramolecular network by way of - stacking involving the benzimidazole rings. A non-coordinated water molecule completes the structure.

Online 8 September 2006
