Acta Cryst. (2006). E62, m3009-m3011  [ doi:10.1107/S1600536806042802 ]

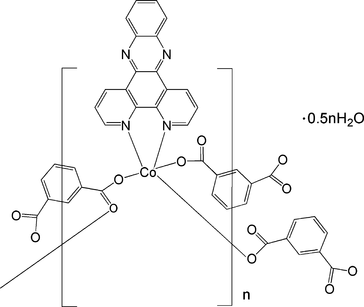

catena-Poly[[[(dipyrido[3,2-a:2',3'-c]phenazine)cobalt(II)]--benzene-1,3-dicarboxylato] hemihydrate]

Q.-W. Wang, Q.-L. Meng, Z.-X. Yu and X.-H. Zhao

Abstract: In the title compound, {[Co(C₈H₄O₄)(C₁₈H₁₀N₄)]·0.5H₂O}_n or {[Co(1,3-BDC)(L)]·0.5H₂O}_n, where 1,3-BDC is the benzene-l,3-dicarboxylate dianion and L is dipyrido[3,2-a:2',3'-c]phenazine, each Co^II atom is five-coordinated by two N atoms from one L ligand, and three O atoms from three different 1,3-BDC anions in a distorted tetragonal-pyramidal geometry. Adjacent Co^II atoms are bridged by the 1,3-BDC ligands to form a two-dimensional network. The 1,3-BDC ligands lie on twofold rotation axes.

Online 25 October 2006
