Acta Cryst. (2006). E62, m3012-m3013  [ doi:10.1107/S1600536806042656 ]

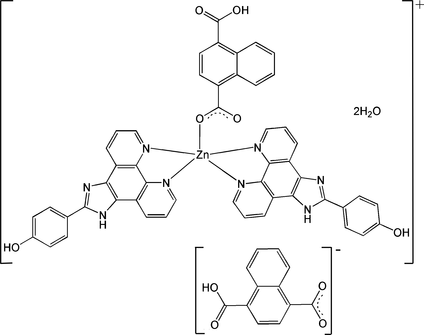

(4-Carboxynaphthalene-1-carboxylato)bis[4-(1H-1,3,7,8-tetraazacyclopenta[l]phenanthren-2-yl)phenol]zinc(II) 4-carboxynaphthalene-1-carboxylate dihydrate

Q.-W. Wang, Z.-X. Yu, Q.-L. Meng and X.-H. Zhao

Abstract: In the title compound, [Zn(C₁₂H₇O₄)(C₁₉H₁₂N₄O)₂](C₁₂H₇O₄)·2H₂O or [Zn(L)₂(HNDC)](HNDC)·2H₂O, where HNDC is the naphthalene-1,4-dicarboxylate monoanion and L is 4-(1H-1,3,7,8-tetraazacyclopenta[l]phenanthren-2-yl)phenol, the Zn^II atom is five-coordinated by four N atoms from two L ligands, and one O atom from the HNDC monoanion in an approximate trigonal-bipyramidal geometry. Aromatic - stacking interactions between L ligands, and N-HO, O-HO and N-HO hydrogen bonds, stabilize the crystal structure.

Online 25 October 2006
