Acta Cryst. (2007). E63, m1510    [ doi:10.1107/S1600536807019599 ]

Bis([mu]2-hydroxydi-2-pyridylmethanolato- [kappa]4N,O:O,N')bis[(pyridine-[kappa]N)copper(II)] bis(perchlorate)

Y.-M. Li, J.-L. Zhang and X.-W. Zhao

Abstract top

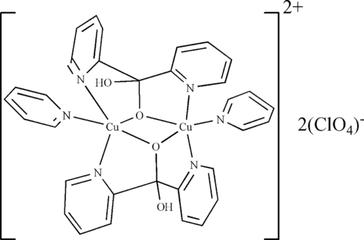

The title dinuclear compound, [Cu2(C11H9N2O2)2(C5H5N)2](ClO4)2, was obtained by the reaction of di-2-pyridyl ketone, copper(II) acetate, pyridine and sodium perchlorate. The two CuII atoms are coordinated by two hydroxydi-2-pyridylmethanolate ligands and two pyridine ligands, resulting in a distorted [CuN3O2] square-pyramidal coordination geometry. The molecular structure is stabilized by intramolecular [pi]-[pi] (face-to-face distances of about 3.40 Å) and C-H...[pi] (H...centroid distances of about 2.80 Å) interactions of aromatic rings.

Comment top

Di-2-pyridylketone [(C5H4N2)CO] and its hydrolyzed derivative, di-2-pyridylmethanediol [(C5H4N)2C(OH)2], are considered as excellent ligands because of their various coordination modes. Some complexes based on the monoanion and dianion of di-2-pyridylmethanediol have been reported (Lalioti et al., 2001; Papaefstathiou & Perlepes, 2002; Boudalis et al., 2004; Steel & Sumby, 2003; Tong et al., 2002; Serna et al., 2000; Li et al., 2006). However, it is seldom reported that these ligands chelate the metal ion in N,N',O,O-tridentate mode (Breeze et al., 1996; Boudalis et al., 2003). Herein we present the crystal structure of the dinuclear compoud, (I), containing N,N',O,O-tridentate hydroxy-di-2-pyridylmethnolato ligand.

The structure of (I) consists of the cation, [bispyridyl-bis(hydroxy-di-2-pyridylmethanolato)]dicopper, and two percholrate anions (Fig. 1). In the cation, the two copper atoms, chelated by two N,N',O,O-tridentate hydroxy-di-2-pyridylmethanolato ligands, are not crystallographically equivalent. Each copper atom is also bound to one nitrogen atom from pyridine, resulting in a distorted square pyramidal coordination geometry. The Cu···Cu distance is 3.0375 (4) Å. The Cu—N and Cu—O bond lengths are 2.002 (2)—2.034 (2) Å and 1.9208 (17)—2.2837 (18) Å, respectively.

It is also noteworthy that the dinuclear structure is stabilized by intramolecular pyridine-pyridine π···π interation (the interplanar distance of 3.40 Å) and CH···π interaction (C14—H···the pyridine N5 centroid of 2.80 Å) (Fig. 2).

Related literature top

Some complexes based on di-2-pyridylketone hydrolysed derivative have been already isolated and structurally characterized (Lalioti et al., 2001; Papaefstathiou & Perlepes, 2002; Boudalis et al., 2003, 2004; Steel & Sumby, 2003; Tong et al., 2002; Serna et al., 2000; Li et al., 2006; Breeze et al., 1996).

Experimental top

The title compound was synthesized by refluxing a 20 ml EtOH/H2O solution (3:1, v/v) of Cu(OAc)2.H2O (0.257 g, 1.3 mmol), di-2-pyridylketone (0.185 g, 1 mmol) and pyridine (2.6 ml) for 1 h with stirring. After cooing, the solid NaClO4.H2O (0.210 g, 1.5 mmol) was added and the solution filtered. Blue prism crystals of (I) were obtained by slow evaporation of the blue filtrate for several days. Yield: 47.4% based on di-2-pyridylketone (0.210 g). (Anal. Calc. for C32H28Cl2Cu2N6O12: C, 43.35; H, 3.18; N 9.48. Found: C, 43.11; H, 2.97; N 9.49%).

Refinement top

All H atoms were positioned geometrically and were treated as riding, with C—H distances of 0.93 Å and O—H distances of 0.82 Å, with Uiso(H) = 1.2 Ueq(C, N). The highest electron density peak in a difference Fourier map is located near the O11 atom from the perchlorate anion.

Computing details top

Data collection: CrystalClear (Rigaku, 2000); cell refinement: CrystalClear; data reduction: CrystalClear; program(s) used to solve structure: SHELXTL (Sheldrick, 1997); program(s) used to refine structure: SHELXTL; molecular graphics: SHELXTL; software used to prepare material for publication: SHELXTL.

Figures top
[Figure 1] Fig. 1. The molecular structure of (I), with atomic labels and 50% probability displacement ellipsoids for non-H atoms.
[Figure 2] Fig. 2. The intramolecular π···π and CH···π interactions between pyridyl rings. The Cu—Cu contact is shown as a thick dashed line.
(I) top
Crystal data top
[Cu2(C11H9N2O2)2(C5H5N)2](ClO4)2F(000) = 1800
Mr = 886.58Dx = 1.754 Mg m−3
Monoclinic, P21/nMo Kα radiation, λ = 0.71073 Å
a = 11.2269 (6) ÅCell parameters from 8489 reflections
b = 15.7136 (8) Åθ = 3.2–27.5°
c = 19.6142 (12) ŵ = 1.50 mm−1
β = 104.034 (3)°T = 293 K
V = 3357.0 (3) Å3Prism, blue
Z = 40.40 × 0.20 × 0.15 mm
Data collection top
Rigaku Mercury CCD
diffractometer		7663 independent reflections
Radiation source: fine-focus sealed tube6773 reflections with I > 2σ(I)
graphiteRint = 0.042
ω scansθmax = 27.5°, θmin = 3.2°
Absorption correction: multi-scan
(CrystalClear; Rigaku, 2000)		h = −14→13
Tmin = 0.657, Tmax = 0.798k = −20→20
25710 measured reflectionsl = −20→25
Refinement top
Refinement on F2Primary atom site location: structure-invariant direct methods
Least-squares matrix: fullSecondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.042Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.106H-atom parameters constrained
S = 1.08 w = 1/[σ2(Fo2) + (0.0526P)2 + 2.8234P]
where P = (Fo2 + 2Fc2)/3
7663 reflections(Δ/σ)max = 0.001
487 parametersΔρmax = 1.21 e Å−3
0 restraintsΔρmin = −0.72 e Å−3
Crystal data top
[Cu2(C11H9N2O2)2(C5H5N)2](ClO4)2V = 3357.0 (3) Å3
Mr = 886.58Z = 4
Monoclinic, P21/nMo Kα radiation
a = 11.2269 (6) ŵ = 1.50 mm−1
b = 15.7136 (8) ÅT = 293 K
c = 19.6142 (12) Å0.40 × 0.20 × 0.15 mm
β = 104.034 (3)°
Data collection top
Rigaku Mercury CCD
diffractometer		7663 independent reflections
Absorption correction: multi-scan
(CrystalClear; Rigaku, 2000)		6773 reflections with I > 2σ(I)
Tmin = 0.657, Tmax = 0.798Rint = 0.042
25710 measured reflectionsθmax = 27.5°
Refinement top
R[F2 > 2σ(F2)] = 0.042H-atom parameters constrained
wR(F2) = 0.106Δρmax = 1.21 e Å−3
S = 1.08Δρmin = −0.72 e Å−3
7663 reflectionsAbsolute structure: ?
487 parametersFlack parameter: ?
0 restraintsRogers parameter: ?
Special details top

Experimental. IR (KBr pellet, cm-1): v(OH) 3449, v(C–O) 1605, v(C?N, C?C) 1473, 1448, 1384, v(ClO4-)1089, 624.

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
Cu10.64841 (3)0.670160 (18)0.367839 (15)0.01667 (9)
Cu20.50841 (3)0.561750 (18)0.246451 (15)0.01642 (9)
Cl11.17153 (6)0.51344 (4)0.15172 (4)0.02879 (16)
Cl20.99762 (6)0.75509 (4)0.45799 (3)0.02225 (14)
N10.7087 (2)0.59111 (13)0.45118 (11)0.0176 (4)
N20.5160 (2)0.43867 (13)0.27837 (11)0.0181 (4)
N30.6030 (2)0.54674 (13)0.17214 (11)0.0182 (4)
N40.6705 (2)0.75622 (13)0.29634 (11)0.0182 (4)
N50.42158 (19)0.66984 (13)0.20679 (11)0.0168 (4)
N60.5364 (2)0.73951 (13)0.41114 (11)0.0175 (4)
O10.26025 (16)0.63617 (11)0.32037 (9)0.0192 (4)
H1A0.24430.59520.29380.029*
O20.46562 (16)0.60058 (10)0.33105 (9)0.0164 (3)
O30.70453 (16)0.59285 (11)0.30647 (9)0.0177 (4)
O40.88631 (16)0.62564 (12)0.27555 (10)0.0226 (4)
H3A0.91150.64930.31360.034*
O51.2489 (3)0.48847 (19)0.2173 (2)0.1021 (16)
O61.0668 (2)0.45880 (17)0.13553 (15)0.0496 (7)
O71.2369 (4)0.5094 (3)0.1002 (2)0.125 (2)
O81.1369 (2)0.59838 (14)0.16146 (16)0.0527 (7)
O91.0527 (3)0.7139 (2)0.52231 (13)0.0615 (8)
O100.8692 (2)0.77013 (15)0.45334 (13)0.0391 (5)
O111.0113 (2)0.6996 (2)0.40201 (13)0.0566 (8)
O121.0597 (2)0.83263 (15)0.4540 (2)0.0697 (10)
C10.6436 (2)0.57286 (16)0.49830 (13)0.0203 (5)
H11A0.57370.60480.49790.024*
C20.6760 (3)0.50846 (17)0.54751 (13)0.0226 (5)
H10A0.62890.49750.57950.027*
C30.7797 (3)0.46070 (17)0.54814 (14)0.0256 (6)
H28A0.80350.41690.58050.031*
C40.8474 (3)0.47919 (18)0.49981 (15)0.0264 (6)
H29A0.91720.44770.49890.032*
C50.8100 (2)0.54520 (17)0.45283 (14)0.0220 (5)
H12A0.85700.55820.42120.026*
C60.5483 (3)0.42389 (16)0.34787 (14)0.0220 (5)
H14A0.57740.46900.37800.026*
C70.5400 (3)0.34432 (17)0.37629 (16)0.0272 (6)
H13A0.56390.33600.42460.033*
C80.4958 (3)0.27754 (17)0.33183 (17)0.0293 (6)
H16A0.48680.22380.34970.035*
C90.4653 (3)0.29174 (17)0.26040 (16)0.0276 (6)
H17A0.43770.24720.22940.033*
C100.4761 (3)0.37286 (17)0.23539 (15)0.0240 (6)
H15A0.45500.38210.18710.029*
C110.5641 (3)0.50168 (16)0.11228 (13)0.0219 (5)
H9A0.48380.48160.10050.026*
C120.6394 (3)0.48436 (16)0.06794 (14)0.0231 (6)
H31A0.61040.45260.02730.028*
C130.7584 (3)0.51476 (16)0.08466 (14)0.0240 (6)
H8A0.81080.50350.05560.029*
C140.7984 (3)0.56241 (16)0.14549 (14)0.0221 (5)
H7A0.87780.58430.15740.026*
C150.7190 (2)0.57706 (15)0.18827 (13)0.0179 (5)
C160.7557 (2)0.62835 (16)0.25636 (13)0.0185 (5)
C170.7140 (2)0.72213 (15)0.24421 (13)0.0167 (5)
C180.7191 (2)0.76819 (16)0.18493 (13)0.0209 (5)
H2A0.74700.74310.14880.025*
C190.6816 (3)0.85284 (17)0.18036 (14)0.0237 (6)
H32A0.68430.88510.14100.028*
C200.6404 (3)0.88850 (17)0.23488 (15)0.0249 (6)
H4A0.61590.94520.23300.030*
C210.6363 (3)0.83846 (16)0.29222 (14)0.0229 (5)
H3B0.60910.86240.32910.027*
C220.4119 (3)0.70408 (17)0.14300 (13)0.0213 (5)
H26A0.44230.67380.11010.026*
C230.3584 (3)0.78284 (18)0.12438 (14)0.0237 (6)
H30A0.35110.80450.07940.028*
C240.3160 (3)0.82844 (17)0.17371 (14)0.0245 (6)
H27A0.28220.88230.16300.029*
C250.3242 (2)0.79327 (16)0.23946 (13)0.0196 (5)
H25A0.29550.82290.27330.024*
C260.3760 (2)0.71316 (15)0.25385 (12)0.0159 (5)
C270.3808 (2)0.66539 (15)0.32260 (13)0.0159 (5)
C280.4148 (2)0.72546 (15)0.38598 (12)0.0175 (5)
C290.3283 (3)0.76266 (16)0.41599 (13)0.0211 (5)
H20A0.24520.75160.39830.025*
C300.3675 (3)0.81696 (17)0.47304 (14)0.0244 (6)
H22A0.31090.84240.49420.029*
C310.4911 (3)0.83256 (16)0.49771 (14)0.0240 (6)
H21A0.51880.86940.53530.029*
C320.5734 (3)0.79289 (16)0.46606 (13)0.0220 (5)
H18A0.65690.80330.48310.026*
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
Cu10.02118 (17)0.01560 (15)0.01365 (15)0.00121 (11)0.00500 (12)0.00078 (11)
Cu20.02116 (17)0.01498 (15)0.01423 (15)0.00170 (11)0.00645 (12)−0.00007 (11)
Cl10.0244 (3)0.0229 (3)0.0364 (4)0.0040 (3)0.0022 (3)−0.0075 (3)
Cl20.0254 (3)0.0222 (3)0.0198 (3)0.0008 (2)0.0069 (2)0.0008 (2)
N10.0193 (11)0.0180 (10)0.0153 (10)−0.0013 (8)0.0035 (8)−0.0002 (8)
N20.0185 (11)0.0162 (10)0.0210 (11)−0.0015 (8)0.0075 (9)−0.0014 (8)
N30.0220 (11)0.0172 (10)0.0157 (10)0.0010 (8)0.0052 (8)0.0016 (8)
N40.0207 (11)0.0170 (10)0.0163 (10)−0.0020 (8)0.0035 (8)−0.0003 (8)
N50.0182 (10)0.0181 (10)0.0144 (10)−0.0006 (8)0.0047 (8)−0.0001 (8)
N60.0234 (11)0.0146 (9)0.0143 (9)0.0022 (8)0.0045 (8)0.0009 (8)
O10.0206 (9)0.0190 (8)0.0198 (9)−0.0028 (7)0.0084 (7)−0.0012 (7)
O20.0223 (9)0.0136 (8)0.0136 (8)0.0031 (7)0.0050 (7)0.0008 (6)
O30.0237 (9)0.0165 (8)0.0135 (8)0.0008 (7)0.0059 (7)0.0016 (6)
O40.0174 (9)0.0272 (9)0.0225 (9)−0.0001 (7)0.0038 (7)−0.0011 (8)
O50.078 (2)0.0474 (17)0.133 (3)−0.0171 (16)−0.067 (2)0.0420 (19)
O60.0327 (13)0.0512 (14)0.0619 (17)−0.0109 (11)0.0056 (12)−0.0258 (13)
O70.138 (4)0.130 (4)0.151 (4)−0.078 (3)0.119 (3)−0.098 (3)
O80.0483 (15)0.0254 (11)0.0778 (19)0.0152 (11)0.0027 (14)−0.0088 (12)
O90.072 (2)0.081 (2)0.0336 (13)0.0340 (16)0.0159 (13)0.0261 (14)
O100.0263 (11)0.0409 (12)0.0534 (14)0.0024 (10)0.0162 (10)0.0030 (11)
O110.0406 (14)0.093 (2)0.0338 (13)0.0099 (14)0.0051 (11)−0.0287 (14)
O120.0335 (14)0.0254 (12)0.149 (3)−0.0024 (10)0.0194 (17)0.0098 (15)
C10.0226 (13)0.0207 (12)0.0185 (12)0.0016 (10)0.0065 (10)0.0002 (10)
C20.0274 (14)0.0229 (12)0.0194 (12)−0.0041 (11)0.0093 (11)0.0012 (10)
C30.0320 (16)0.0234 (13)0.0209 (13)0.0018 (11)0.0058 (11)0.0078 (10)
C40.0230 (14)0.0280 (14)0.0292 (14)0.0067 (11)0.0081 (11)0.0067 (11)
C50.0188 (13)0.0276 (13)0.0202 (13)0.0005 (10)0.0057 (10)0.0044 (10)
C60.0261 (14)0.0184 (12)0.0237 (13)0.0013 (10)0.0101 (11)−0.0005 (10)
C70.0342 (16)0.0221 (13)0.0288 (14)0.0045 (12)0.0146 (12)0.0049 (11)
C80.0304 (15)0.0159 (12)0.0472 (18)0.0000 (11)0.0199 (14)0.0022 (12)
C90.0245 (14)0.0189 (12)0.0413 (17)−0.0015 (11)0.0115 (12)−0.0085 (12)
C100.0244 (14)0.0220 (13)0.0257 (13)−0.0004 (11)0.0064 (11)−0.0062 (11)
C110.0289 (14)0.0205 (12)0.0160 (11)−0.0015 (11)0.0050 (10)−0.0009 (10)
C120.0331 (15)0.0200 (12)0.0168 (12)0.0013 (11)0.0075 (11)−0.0009 (10)
C130.0341 (15)0.0210 (12)0.0211 (13)0.0035 (11)0.0146 (11)0.0023 (10)
C140.0274 (14)0.0188 (12)0.0237 (13)−0.0010 (10)0.0134 (11)0.0027 (10)
C150.0245 (13)0.0143 (11)0.0161 (11)0.0022 (10)0.0072 (10)0.0037 (9)
C160.0186 (12)0.0195 (11)0.0180 (12)−0.0006 (10)0.0056 (10)0.0004 (9)
C170.0150 (12)0.0170 (11)0.0173 (11)−0.0035 (9)0.0027 (9)0.0013 (9)
C180.0218 (13)0.0222 (12)0.0193 (12)−0.0040 (10)0.0063 (10)0.0028 (10)
C190.0249 (14)0.0219 (12)0.0234 (13)−0.0042 (11)0.0043 (11)0.0074 (10)
C200.0270 (14)0.0165 (11)0.0299 (14)−0.0008 (10)0.0044 (12)0.0030 (10)
C210.0260 (14)0.0182 (12)0.0233 (13)−0.0028 (10)0.0038 (11)−0.0016 (10)
C220.0249 (14)0.0243 (13)0.0160 (12)0.0015 (11)0.0074 (10)0.0027 (10)
C230.0262 (14)0.0285 (13)0.0173 (12)0.0036 (11)0.0067 (11)0.0086 (10)
C240.0277 (14)0.0213 (12)0.0239 (13)0.0044 (11)0.0053 (11)0.0061 (10)
C250.0201 (13)0.0207 (12)0.0185 (12)0.0007 (10)0.0057 (10)0.0002 (10)
C260.0148 (12)0.0180 (11)0.0151 (11)−0.0016 (9)0.0039 (9)−0.0004 (9)
C270.0190 (12)0.0144 (11)0.0149 (11)0.0011 (9)0.0055 (9)0.0007 (9)
C280.0243 (13)0.0150 (11)0.0135 (11)0.0008 (10)0.0052 (10)0.0029 (9)
C290.0257 (14)0.0210 (12)0.0176 (12)0.0031 (10)0.0073 (10)0.0011 (10)
C300.0347 (16)0.0224 (12)0.0189 (12)0.0048 (11)0.0118 (11)−0.0015 (10)
C310.0350 (15)0.0197 (12)0.0169 (12)0.0010 (11)0.0056 (11)−0.0053 (10)
C320.0260 (14)0.0201 (12)0.0177 (12)−0.0004 (10)0.0009 (10)−0.0013 (10)
Geometric parameters (Å, °) top
Cu1—O31.9208 (17)C6—C71.381 (4)
Cu1—N62.002 (2)C6—H14A0.9300
Cu1—N42.007 (2)C7—C81.378 (4)
Cu1—N12.034 (2)C7—H13A0.9300
Cu1—O22.2824 (18)C8—C91.377 (4)
Cu1—Cu23.0375 (4)C8—H16A0.9300
Cu2—O21.9348 (17)C9—C101.382 (4)
Cu2—N32.014 (2)C9—H17A0.9300
Cu2—N52.018 (2)C10—H15A0.9300
Cu2—N22.028 (2)C11—C121.379 (4)
Cu2—O32.2837 (18)C11—H9A0.9300
Cl1—O71.386 (3)C12—C131.381 (4)
Cl1—O81.416 (2)C12—H31A0.9300
Cl1—O51.421 (3)C13—C141.388 (4)
Cl1—O61.428 (2)C13—H8A0.9300
Cl2—O121.415 (2)C14—C151.384 (4)
Cl2—O91.419 (2)C14—H7A0.9300
Cl2—O111.439 (2)C15—C161.528 (3)
Cl2—O101.442 (2)C16—C171.547 (3)
N1—C11.341 (3)C17—C181.383 (3)
N1—C51.341 (3)C18—C191.391 (4)
N2—C101.341 (3)C18—H2A0.9300
N2—C61.343 (3)C19—C201.383 (4)
N3—C111.350 (3)C19—H32A0.9300
N3—C151.351 (3)C20—C211.382 (4)
N4—C211.345 (3)C20—H4A0.9300
N4—C171.346 (3)C21—H3B0.9300
N5—C221.342 (3)C22—C231.386 (4)
N5—C261.344 (3)C22—H26A0.9300
N6—C321.349 (3)C23—C241.378 (4)
N6—C281.353 (3)C23—H30A0.9300
O1—C271.420 (3)C24—C251.385 (4)
O1—H1A0.8200C24—H27A0.9300
O2—C271.377 (3)C25—C261.387 (3)
O3—C161.372 (3)C25—H25A0.9300
O4—C161.423 (3)C26—C271.533 (3)
O4—H3A0.8200C27—C281.534 (3)
C1—C21.385 (4)C28—C291.382 (4)
C1—H11A0.9300C29—C301.391 (4)
C2—C31.383 (4)C29—H20A0.9300
C2—H10A0.9300C30—C311.376 (4)
C3—C41.382 (4)C30—H22A0.9300
C3—H28A0.9300C31—C321.381 (4)
C4—C51.383 (4)C31—H21A0.9300
C4—H29A0.9300C32—H18A0.9300
C5—H12A0.9300
O3—Cu1—N6160.98 (8)C7—C6—H14A118.7
O3—Cu1—N482.71 (8)C8—C7—C6118.9 (3)
N6—Cu1—N497.27 (9)C8—C7—H13A120.5
O3—Cu1—N191.24 (8)C6—C7—H13A120.5
N6—Cu1—N196.45 (8)C9—C8—C7118.9 (3)
N4—Cu1—N1154.14 (9)C9—C8—H16A120.6
O3—Cu1—O284.57 (7)C7—C8—H16A120.6
N6—Cu1—O277.64 (8)C8—C9—C10119.3 (3)
N4—Cu1—O2110.87 (7)C8—C9—H17A120.4
N1—Cu1—O293.44 (7)C10—C9—H17A120.4
O3—Cu1—Cu248.71 (5)N2—C10—C9122.2 (3)
N6—Cu1—Cu2112.28 (6)N2—C10—H15A118.9
N4—Cu1—Cu287.62 (6)C9—C10—H15A118.9
N1—Cu1—Cu2107.19 (6)N3—C11—C12122.3 (3)
O2—Cu1—Cu239.54 (4)N3—C11—H9A118.9
O2—Cu2—N3160.32 (8)C12—C11—H9A118.9
O2—Cu2—N582.41 (8)C11—C12—C13119.2 (2)
N3—Cu2—N596.30 (8)C11—C12—H31A120.4
O2—Cu2—N292.09 (8)C13—C12—H31A120.4
N3—Cu2—N296.99 (8)C12—C13—C14118.9 (3)
N5—Cu2—N2154.38 (9)C12—C13—H8A120.5
O2—Cu2—O384.22 (7)C14—C13—H8A120.5
N3—Cu2—O377.68 (8)C15—C14—C13119.3 (3)
N5—Cu2—O3109.50 (7)C15—C14—H7A120.4
N2—Cu2—O394.70 (7)C13—C14—H7A120.4
O2—Cu2—Cu148.68 (5)N3—C15—C14121.7 (2)
N3—Cu2—Cu1111.69 (6)N3—C15—C16115.5 (2)
N5—Cu2—Cu186.55 (6)C14—C15—C16122.7 (2)
N2—Cu2—Cu1108.53 (6)O3—C16—O4112.5 (2)
O3—Cu2—Cu139.19 (4)O3—C16—C15109.9 (2)
O7—Cl1—O8110.6 (2)O4—C16—C15104.9 (2)
O7—Cl1—O5109.3 (3)O3—C16—C17109.5 (2)
O8—Cl1—O5105.4 (2)O4—C16—C17108.9 (2)
O7—Cl1—O6111.3 (2)C15—C16—C17111.1 (2)
O8—Cl1—O6111.02 (16)N4—C17—C18121.8 (2)
O5—Cl1—O6108.96 (18)N4—C17—C16114.5 (2)
O12—Cl2—O9109.1 (2)C18—C17—C16123.7 (2)
O12—Cl2—O11109.6 (2)C17—C18—C19118.8 (2)
O9—Cl2—O11107.33 (18)C17—C18—H2A120.6
O12—Cl2—O10110.69 (15)C19—C18—H2A120.6
O9—Cl2—O10110.15 (16)C20—C19—C18119.4 (2)
O11—Cl2—O10109.94 (15)C20—C19—H32A120.3
C1—N1—C5118.0 (2)C18—C19—H32A120.3
C1—N1—Cu1123.64 (18)C21—C20—C19118.8 (2)
C5—N1—Cu1117.58 (17)C21—C20—H4A120.6
C10—N2—C6118.1 (2)C19—C20—H4A120.6
C10—N2—Cu2123.97 (19)N4—C21—C20122.0 (3)
C6—N2—Cu2117.32 (17)N4—C21—H3B119.0
C11—N3—C15118.6 (2)C20—C21—H3B119.0
C11—N3—Cu2125.09 (19)N5—C22—C23122.4 (2)
C15—N3—Cu2115.90 (16)N5—C22—H26A118.8
C21—N4—C17119.2 (2)C23—C22—H26A118.8
C21—N4—Cu1127.41 (19)C24—C23—C22118.7 (2)
C17—N4—Cu1113.06 (16)C24—C23—H30A120.6
C22—N5—C26118.6 (2)C22—C23—H30A120.6
C22—N5—Cu2128.24 (18)C23—C24—C25119.3 (2)
C26—N5—Cu2112.97 (16)C23—C24—H27A120.3
C32—N6—C28118.7 (2)C25—C24—H27A120.3
C32—N6—Cu1125.03 (18)C24—C25—C26118.8 (2)
C28—N6—Cu1116.01 (16)C24—C25—H25A120.6
C27—O1—H1A109.5C26—C25—H25A120.6
C27—O2—Cu2116.00 (14)N5—C26—C25122.0 (2)
C27—O2—Cu1103.08 (13)N5—C26—C27114.7 (2)
Cu2—O2—Cu191.77 (7)C25—C26—C27123.2 (2)
C16—O3—Cu1116.75 (15)O2—C27—O1113.01 (19)
C16—O3—Cu2103.70 (14)O2—C27—C26110.1 (2)
Cu1—O3—Cu292.10 (7)O1—C27—C26107.54 (19)
C16—O4—H3A109.5O2—C27—C28109.19 (19)
N1—C1—C2122.8 (2)O1—C27—C28105.80 (19)
N1—C1—H11A118.6C26—C27—C28111.12 (19)
C2—C1—H11A118.6N6—C28—C29121.8 (2)
C3—C2—C1118.8 (3)N6—C28—C27115.3 (2)
C3—C2—H10A120.6C29—C28—C27122.9 (2)
C1—C2—H10A120.6C28—C29—C30119.0 (3)
C4—C3—C2118.8 (2)C28—C29—H20A120.5
C4—C3—H28A120.6C30—C29—H20A120.5
C2—C3—H28A120.6C31—C30—C29119.2 (3)
C3—C4—C5119.1 (3)C31—C30—H22A120.4
C3—C4—H29A120.5C29—C30—H22A120.4
C5—C4—H29A120.5C30—C31—C32119.3 (2)
N1—C5—C4122.6 (3)C30—C31—H21A120.4
N1—C5—H12A118.7C32—C31—H21A120.4
C4—C5—H12A118.7N6—C32—C31122.0 (3)
N2—C6—C7122.5 (3)N6—C32—H18A119.0
N2—C6—H14A118.7C31—C32—H18A119.0
Hydrogen-bond geometry (Å, °) top
D—H···AD—HH···AD···AD—H···A
O1—H1A···O5i0.822.263.060 (5)165
O4—H3A···O110.821.992.790 (3)166
Symmetry codes: (i) x−1, y, z.
Acknowledgements top

The authors thank Henan University for financial support and Professors X.-T. Wu, T.-L. Sheng, and J.-J. Zhang for their help.

references
References top

Boudalis, A. K., Dahan, F., Bousseksou, A., Tuchagues, J.-P. & Perlepes, S. P. (2003). J. Chem. Soc. Dalton Trans. pp. 3411–3418.

Boudalis, A. K., Donnadieu, B., Nastopoulos, V., Clemente-Juan, J. M., Mari, A., Sanakis, Y., Tuchagues, J.-P. & Perlepes, S. P. (2004). Angew. Chem. Int. Ed. 43, 2266–2270.

Breeze, S. R., Wang, S., Greedan, J. E. & Raju, N. P. (1996). Inorg. Chem. 35, 6944–6951.

Lalioti, N., Raptopoulou, C. P., Terzis, A., Aliev, A. E., Gerothanassis, I. P., Manessi-Zoupa, E. & Perlepes, S. P. (2001). Angew. Chem. Int. Ed. 40, 3211–3214.

Li, Y.-M., Zhang, J.-J., Fu, R.-B., Xiang, S.-C., Sheng, T.-L., Yuan, D.-Q., Huang, X.-H. & Wu, X.-T. (2006). Polyhedron, 25, 1618–1624.

Papaefstathiou, G. S. & Perlepes, S. P. (2002). Comments on Inorganic Chemistry 23, 249–274.

Rigaku (2000). CrystalClear Version 1.3, Rigaku Corporation, 3-9-12 Akishima, Tokyo, Japan.

Serna, Z. E., Barandika, M. G., Cortés, R., Urtiaga, M. K., Barberis, G. E. & Rojo, T. (2000). J. Chem. Soc. Dalton Trans. pp. 29–34.

Sheldrick, G. M. (1997). SHELXTL97. Bruker AXS Inc., Madison, Wisconsin, USA.

Steel, P. J. & Sumby, C. J. (2003). J. Chem. Soc. Dalton Trans. pp. 4505–4515.

Tong, M.-L., Zheng, S.-L., Shi, J.-X., Tong, Y.-X., Lee, H. K. & Chen, X.-M. (2002). J. Chem. Soc., Dalton Trans. pp. 1727–1734.
