Supporting information
Crystallographic Information File (CIF) https://doi.org/10.1107/S1600536807022908/lh2380sup1.cif | |
Structure factor file (CIF format) https://doi.org/10.1107/S1600536807022908/lh2380Isup2.hkl |
CCDC reference: 650680
Key indicators
- Single-crystal X-ray study
- T = 298 K
- R factor = 0.059
- wR factor = 0.155
- Data-to-parameter ratio = 15.3
checkCIF/PLATON results
No syntax errors found No errors found in this datablock
Cd(CH3COO)2 ˙ 2(H2 O)(0.266 g, 1 mmol), NaClO4 (0.14 g, 1 mmol) phen (0.396 g, 2 mmol) were dissolved in a water-methanol solution (40 ml, 1:1). The mixture was refluxed for 4 h, and then filtered after cooling to room temperature. Single crystals of (I) were obtained after two weeks.
H atoms bonded to O atoms were located in difference maps and then included in the refinement with bond-length restraints of O – H = 0.82 (2) Å, with Uiso (H) = 1.5Ueq (O). H atoms bonded to C atoms were placed in calculated positions and included in the riding-model approximation, with C–H = 0.93—0.96 Å and U iso(H) = 1.2U eq (C of aromatic) or 1.5U eq(C of methyl). Atoms O2/O3/O4 of the perchlorate anion are disordered over a twofold axis with equal occupancies. The largest peak of 1.18 Å-3 in the final differnce Fourier is close to atom Cl1.

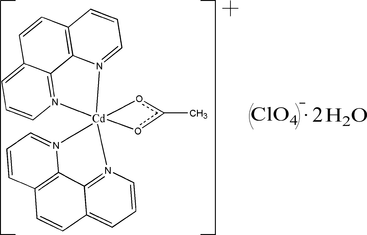

The formula unit of (I) comprises a monnuclear [Cd(phen)2(CH 3COO)]+ cation (Fig. 1), a perchlorate anion and a hydrate. The Cd II ion is in a distorted octahedral CdN4O2 geometry coordinated by four N atoms of phen ligands and two O atoms of a chelating bidentate acetato anion. By virtue of the twofold symmetry, atoms C13, C14, O1, O1b atoms are exactly planar (Zhang et al., 2003)[symmety code: (b) -x, y, 1/2 - z]. In the crystal structure, one-dimensional chains along [100] are formed by intermolecular Owater—H···Operchlorate and Owater –H···Owater hydrogen bonds (Fig. 2. and Table 2). In addition weak π-π stacking interactions form chains along [001] as shown in Fig.3. Cg1 and Cg2 are the centroids defined by atoms C4/C5/C6/C7/C11/C12 and N2/C7/C8/C9/C10/C11, respectively. The relevant centroid–centroid and perpendicular distances defining these interactions are 3.746 (2), and 3.623 and 3.602 Å for Cg1··· Cg2i [symmety code:(i) -x,1 - y,1 - z].
The structure of a related Cd complex has been published (Zhang et al. 2003).
Data collection: SMART (Bruker, 2000); cell refinement: SAINT (Bruker, 2000); data reduction: SAINT; program(s) used to solve structure: SHELXTL (Bruker, 2000); program(s) used to refine structure: SHELXTL; molecular graphics: SHELXTL; software used to prepare material for publication: SHELXTL.
[Cd(C2H4O2)(C12H8N2)2]ClO4·2H2O | F(000) = 672 |
Mr = 667.33 | Dx = 1.626 Mg m−3 |
Monoclinic, P2/c | Mo Kα radiation, λ = 0.71073 Å |
Hall symbol: -P 2yc | Cell parameters from 3241 reflections |
a = 9.887 (4) Å | θ = 2.2–23.0° |
b = 8.177 (4) Å | µ = 0.96 mm−1 |
c = 17.791 (7) Å | T = 298 K |
β = 108.612 (19)° | Block, colorless |
V = 1363.1 (10) Å3 | 0.32 × 0.30 × 0.30 mm |
Z = 2 |
Bruker SMART CCD diffractometer | 2584 reflections with I > 2σ(I) |
Radiation source: fine-focus sealed tube | Rint = 0.058 |
Graphite monochromator | θmax = 27.5°, θmin = 2.2° |
φ and ω scans | h = −12→12 |
8986 measured reflections | k = −10→10 |
3118 independent reflections | l = −23→17 |
Refinement on F2 | Primary atom site location: structure-invariant direct methods |
Least-squares matrix: full | Secondary atom site location: difference Fourier map |
R[F2 > 2σ(F2)] = 0.059 | Hydrogen site location: inferred from neighbouring sites |
wR(F2) = 0.155 | H atoms treated by a mixture of independent and constrained refinement |
S = 1.05 | w = 1/[σ2(Fo2) + (0.0965P)2] where P = (Fo2 + 2Fc2)/3 |
3118 reflections | (Δ/σ)max < 0.001 |
204 parameters | Δρmax = 1.27 e Å−3 |
64 restraints | Δρmin = −0.59 e Å−3 |
[Cd(C2H4O2)(C12H8N2)2]ClO4·2H2O | V = 1363.1 (10) Å3 |
Mr = 667.33 | Z = 2 |
Monoclinic, P2/c | Mo Kα radiation |
a = 9.887 (4) Å | µ = 0.96 mm−1 |
b = 8.177 (4) Å | T = 298 K |
c = 17.791 (7) Å | 0.32 × 0.30 × 0.30 mm |
β = 108.612 (19)° |
Bruker SMART CCD diffractometer | 2584 reflections with I > 2σ(I) |
8986 measured reflections | Rint = 0.058 |
3118 independent reflections |
R[F2 > 2σ(F2)] = 0.059 | 64 restraints |
wR(F2) = 0.155 | H atoms treated by a mixture of independent and constrained refinement |
S = 1.05 | Δρmax = 1.27 e Å−3 |
3118 reflections | Δρmin = −0.59 e Å−3 |
204 parameters |
Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes. |
Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger. |
x | y | z | Uiso*/Ueq | Occ. (<1) | |
Cd1 | 0.0000 | 0.53861 (6) | 0.2500 | 0.0522 (2) | |
O1 | −0.1072 (4) | 0.2850 (5) | 0.2079 (2) | 0.0759 (10) | |
N1 | −0.1344 (4) | 0.6807 (5) | 0.1392 (2) | 0.0553 (9) | |
N2 | 0.1397 (4) | 0.5700 (5) | 0.1676 (2) | 0.0551 (9) | |
C1 | −0.2671 (6) | 0.7337 (7) | 0.1252 (3) | 0.0695 (13) | |
H1 | −0.3124 | 0.7125 | 0.1626 | 0.083* | |
C2 | −0.3405 (7) | 0.8187 (8) | 0.0577 (4) | 0.0831 (16) | |
H2 | −0.4324 | 0.8569 | 0.0504 | 0.100* | |
C3 | −0.2761 (7) | 0.8454 (7) | 0.0025 (4) | 0.0840 (17) | |
H3 | −0.3252 | 0.9008 | −0.0439 | 0.101* | |
C4 | −0.1383 (6) | 0.7917 (6) | 0.0134 (3) | 0.0657 (13) | |
C5 | −0.0647 (8) | 0.8114 (8) | −0.0436 (3) | 0.0844 (17) | |
H5 | −0.1112 | 0.8633 | −0.0914 | 0.101* | |
C6 | 0.0664 (8) | 0.7584 (8) | −0.0305 (3) | 0.0829 (18) | |
H6 | 0.1110 | 0.7770 | −0.0685 | 0.099* | |
C7 | 0.1428 (6) | 0.6720 (7) | 0.0411 (3) | 0.0663 (13) | |
C8 | 0.2802 (7) | 0.6092 (8) | 0.0557 (4) | 0.0798 (17) | |
H8 | 0.3280 | 0.6230 | 0.0189 | 0.096* | |
C9 | 0.3412 (7) | 0.5300 (9) | 0.1227 (5) | 0.0847 (19) | |
H9 | 0.4324 | 0.4875 | 0.1324 | 0.102* | |
C10 | 0.2714 (6) | 0.5085 (8) | 0.1795 (4) | 0.0730 (14) | |
H10 | 0.3166 | 0.4511 | 0.2258 | 0.088* | |
C11 | 0.0762 (5) | 0.6493 (5) | 0.0986 (3) | 0.0531 (10) | |
C12 | −0.0698 (5) | 0.7090 (5) | 0.0842 (2) | 0.0519 (10) | |
C13 | 0.0000 | 0.2084 (9) | 0.2500 | 0.0667 (19) | |
C14 | 0.0000 | 0.0252 (12) | 0.2500 | 0.130 (5) | |
H14A | −0.0764 | −0.0139 | 0.2053 | 0.195* | 0.50 |
H14B | −0.0130 | −0.0139 | 0.2981 | 0.195* | 0.50 |
H14C | 0.0894 | −0.0139 | 0.2466 | 0.195* | 0.50 |
O1W | 0.6176 (5) | 0.2737 (11) | 0.1119 (3) | 0.130 (2) | |
O2 | 0.487 (2) | 0.9428 (11) | 0.3240 (6) | 0.155 (6) | 0.50 |
O3 | 0.6310 (13) | 0.9327 (13) | 0.2453 (14) | 0.280 (14) | 0.50 |
O4 | 0.3858 (18) | 0.9310 (14) | 0.1877 (9) | 0.68 (6) | 0.50 |
O5 | 0.5000 | 1.1640 (7) | 0.2500 | 0.414 (15) | |
Cl1 | 0.5000 | 0.9901 (4) | 0.2500 | 0.1092 (10) | |
H1WA | 0.593 (9) | 0.231 (12) | 0.148 (4) | 0.164* | |
H1WB | 0.700 (6) | 0.312 (12) | 0.138 (4) | 0.164* |
U11 | U22 | U33 | U12 | U13 | U23 | |
Cd1 | 0.0537 (3) | 0.0570 (3) | 0.0476 (3) | 0.000 | 0.0184 (2) | 0.000 |
O1 | 0.078 (2) | 0.070 (2) | 0.071 (2) | −0.0126 (19) | 0.0116 (19) | −0.0031 (19) |
N1 | 0.053 (2) | 0.057 (2) | 0.055 (2) | −0.0023 (17) | 0.0175 (17) | −0.0029 (17) |
N2 | 0.048 (2) | 0.061 (2) | 0.057 (2) | −0.0040 (16) | 0.0187 (17) | −0.0046 (17) |
C1 | 0.058 (3) | 0.075 (3) | 0.073 (3) | 0.007 (2) | 0.018 (3) | 0.001 (3) |
C2 | 0.072 (4) | 0.081 (4) | 0.086 (4) | 0.014 (3) | 0.011 (3) | 0.010 (3) |
C3 | 0.089 (4) | 0.075 (4) | 0.070 (4) | 0.010 (3) | 0.000 (3) | 0.009 (3) |
C4 | 0.081 (3) | 0.058 (3) | 0.052 (3) | −0.008 (2) | 0.012 (2) | −0.001 (2) |
C5 | 0.113 (5) | 0.084 (4) | 0.053 (3) | −0.013 (4) | 0.022 (3) | 0.006 (3) |
C6 | 0.117 (5) | 0.087 (4) | 0.058 (3) | −0.026 (4) | 0.047 (3) | −0.011 (3) |
C7 | 0.082 (3) | 0.067 (3) | 0.059 (3) | −0.022 (3) | 0.035 (3) | −0.018 (2) |
C8 | 0.080 (4) | 0.093 (4) | 0.082 (4) | −0.024 (3) | 0.049 (3) | −0.027 (4) |
C9 | 0.057 (3) | 0.101 (5) | 0.105 (5) | −0.004 (3) | 0.038 (3) | −0.024 (4) |
C10 | 0.056 (3) | 0.085 (3) | 0.081 (4) | 0.002 (3) | 0.026 (3) | −0.004 (3) |
C11 | 0.058 (3) | 0.052 (2) | 0.050 (2) | −0.0127 (19) | 0.019 (2) | −0.0140 (19) |
C12 | 0.063 (3) | 0.046 (2) | 0.045 (2) | −0.0106 (19) | 0.0150 (19) | −0.0072 (17) |
C13 | 0.098 (6) | 0.052 (4) | 0.055 (4) | 0.000 | 0.032 (4) | 0.000 |
C14 | 0.194 (16) | 0.055 (5) | 0.131 (11) | 0.000 | 0.039 (11) | 0.000 |
O1W | 0.069 (3) | 0.202 (7) | 0.113 (4) | 0.007 (4) | 0.020 (3) | 0.048 (4) |
O2 | 0.145 (9) | 0.180 (10) | 0.145 (9) | −0.008 (7) | 0.050 (7) | 0.058 (7) |
O3 | 0.285 (16) | 0.296 (17) | 0.277 (16) | 0.038 (10) | 0.114 (11) | −0.010 (10) |
O4 | 0.68 (6) | 0.69 (6) | 0.68 (6) | −0.009 (11) | 0.22 (2) | −0.015 (11) |
O5 | 0.424 (17) | 0.394 (17) | 0.439 (17) | 0.000 | 0.158 (11) | 0.000 |
Cl1 | 0.155 (3) | 0.0983 (16) | 0.101 (2) | 0.000 | 0.078 (2) | 0.000 |
Cd1—N1i | 2.308 (4) | C8—C9 | 1.320 (10) |
Cd1—N1 | 2.308 (4) | C8—H8 | 0.9300 |
Cd1—N2i | 2.327 (4) | C9—C10 | 1.405 (9) |
Cd1—N2 | 2.327 (4) | C9—H9 | 0.9300 |
Cd1—O1 | 2.341 (4) | C10—H10 | 0.9300 |
Cd1—O1i | 2.341 (4) | C11—C12 | 1.467 (6) |
Cd1—C13 | 2.700 (7) | C13—O1i | 1.253 (5) |
O1—C13 | 1.253 (5) | C13—C14 | 1.498 (11) |
N1—C1 | 1.328 (6) | C14—H14A | 0.9600 |
N1—C12 | 1.348 (6) | C14—H14B | 0.9600 |
N2—C10 | 1.348 (7) | C14—H14C | 0.9600 |
N2—C11 | 1.352 (6) | O1W—H1WA | 0.84 (2) |
C1—C2 | 1.376 (8) | O1W—H1WB | 0.86 (2) |
C1—H1 | 0.9300 | O2—O4ii | 1.345 (17) |
C2—C3 | 1.349 (9) | O2—O3ii | 1.403 (15) |
C2—H2 | 0.9300 | O2—Cl1 | 1.419 (5) |
C3—C4 | 1.385 (8) | O3—O4ii | 1.254 (16) |
C3—H3 | 0.9300 | O3—O2ii | 1.403 (15) |
C4—C12 | 1.399 (7) | O3—Cl1 | 1.405 (6) |
C4—C5 | 1.434 (8) | O4—O3ii | 1.254 (16) |
C5—C6 | 1.315 (9) | O4—O2ii | 1.345 (17) |
C5—H5 | 0.9300 | O4—Cl1 | 1.392 (6) |
C6—C7 | 1.442 (9) | O5—Cl1 | 1.422 (6) |
C6—H6 | 0.9300 | Cl1—O4ii | 1.392 (6) |
C7—C11 | 1.395 (6) | Cl1—O3ii | 1.405 (6) |
C7—C8 | 1.397 (9) | Cl1—O2ii | 1.419 (5) |
N1i—Cd1—N1 | 119.55 (19) | C10—C9—H9 | 119.2 |
N1i—Cd1—N2i | 72.68 (14) | N2—C10—C9 | 120.8 (6) |
N1—Cd1—N2i | 100.75 (14) | N2—C10—H10 | 119.6 |
N1i—Cd1—N2 | 100.75 (14) | C9—C10—H10 | 119.6 |
N1—Cd1—N2 | 72.68 (14) | N2—C11—C7 | 122.5 (5) |
N2i—Cd1—N2 | 167.32 (19) | N2—C11—C12 | 117.7 (4) |
N1i—Cd1—O1 | 142.90 (14) | C7—C11—C12 | 119.8 (5) |
N1—Cd1—O1 | 95.42 (14) | N1—C12—C4 | 122.1 (5) |
N2i—Cd1—O1 | 89.99 (14) | N1—C12—C11 | 118.9 (4) |
N2—Cd1—O1 | 101.29 (13) | C4—C12—C11 | 119.0 (4) |
N1i—Cd1—O1i | 95.42 (14) | O1i—C13—O1 | 120.0 (7) |
N1—Cd1—O1i | 142.90 (14) | O1i—C13—C14 | 120.0 (3) |
N2i—Cd1—O1i | 101.29 (13) | O1—C13—C14 | 120.0 (3) |
N2—Cd1—O1i | 89.99 (14) | O1i—C13—Cd1 | 60.0 (3) |
O1—Cd1—O1i | 55.2 (2) | O1—C13—Cd1 | 60.0 (3) |
N1i—Cd1—C13 | 120.22 (10) | C14—C13—Cd1 | 180.000 (1) |
N1—Cd1—C13 | 120.22 (10) | C13—C14—H14A | 109.5 |
N2i—Cd1—C13 | 96.34 (9) | C13—C14—H14B | 109.5 |
N2—Cd1—C13 | 96.34 (9) | H14A—C14—H14B | 109.5 |
O1—Cd1—C13 | 27.62 (10) | C13—C14—H14C | 109.5 |
O1i—Cd1—C13 | 27.62 (10) | H14A—C14—H14C | 109.5 |
C13—O1—Cd1 | 92.4 (4) | H14B—C14—H14C | 109.5 |
C1—N1—C12 | 118.4 (4) | H1WA—O1W—H1WB | 100 (3) |
C1—N1—Cd1 | 126.2 (3) | O4ii—O2—O3ii | 114.5 (10) |
C12—N1—Cd1 | 115.5 (3) | O4ii—O2—Cl1 | 60.4 (5) |
C10—N2—C11 | 117.9 (4) | O3ii—O2—Cl1 | 59.7 (4) |
C10—N2—Cd1 | 126.7 (4) | O4ii—O3—O2ii | 120.8 (10) |
C11—N2—Cd1 | 115.3 (3) | O4ii—O3—Cl1 | 62.8 (5) |
N1—C1—C2 | 122.9 (5) | O2ii—O3—Cl1 | 60.7 (4) |
N1—C1—H1 | 118.5 | O3ii—O4—O2ii | 124.2 (10) |
C2—C1—H1 | 118.5 | O3ii—O4—Cl1 | 63.9 (5) |
C3—C2—C1 | 118.5 (6) | O2ii—O4—Cl1 | 62.4 (5) |
C3—C2—H2 | 120.7 | O4ii—Cl1—O4 | 139.3 (10) |
C1—C2—H2 | 120.7 | O4ii—Cl1—O3 | 53.3 (7) |
C2—C3—C4 | 121.2 (5) | O4—Cl1—O3 | 111.5 (5) |
C2—C3—H3 | 119.4 | O4ii—Cl1—O3ii | 111.5 (5) |
C4—C3—H3 | 119.4 | O4—Cl1—O3ii | 53.3 (7) |
C3—C4—C12 | 116.8 (5) | O3—Cl1—O3ii | 141.0 (10) |
C3—C4—C5 | 124.3 (5) | O4ii—Cl1—O2ii | 110.6 (5) |
C12—C4—C5 | 118.8 (5) | O4—Cl1—O2ii | 57.2 (7) |
C6—C5—C4 | 122.1 (5) | O3—Cl1—O2ii | 59.6 (6) |
C6—C5—H5 | 118.9 | O3ii—Cl1—O2ii | 108.9 (5) |
C4—C5—H5 | 118.9 | O4ii—Cl1—O2 | 57.2 (7) |
C5—C6—C7 | 121.8 (5) | O4—Cl1—O2 | 110.6 (5) |
C5—C6—H6 | 119.1 | O3—Cl1—O2 | 108.9 (5) |
C7—C6—H6 | 119.1 | O3ii—Cl1—O2 | 59.6 (6) |
C11—C7—C8 | 118.3 (5) | O2ii—Cl1—O2 | 148.3 (8) |
C11—C7—C6 | 118.5 (5) | O4ii—Cl1—O5 | 110.3 (5) |
C8—C7—C6 | 123.2 (5) | O4—Cl1—O5 | 110.3 (5) |
C9—C8—C7 | 119.0 (5) | O3—Cl1—O5 | 109.5 (5) |
C9—C8—H8 | 120.5 | O3ii—Cl1—O5 | 109.5 (5) |
C7—C8—H8 | 120.5 | O2ii—Cl1—O5 | 105.8 (4) |
C8—C9—C10 | 121.5 (6) | O2—Cl1—O5 | 105.8 (4) |
C8—C9—H9 | 119.2 | ||
N1i—Cd1—O1—C13 | −43.4 (3) | C1—N1—C12—C4 | −0.1 (7) |
N1—Cd1—O1—C13 | 155.4 (2) | Cd1—N1—C12—C4 | 179.1 (3) |
N2i—Cd1—O1—C13 | −103.8 (2) | C1—N1—C12—C11 | −179.3 (4) |
N2—Cd1—O1—C13 | 82.0 (2) | Cd1—N1—C12—C11 | 0.0 (5) |
O1i—Cd1—O1—C13 | 0.0 | C3—C4—C12—N1 | 0.7 (7) |
N1i—Cd1—N1—C1 | −87.6 (4) | C5—C4—C12—N1 | −177.5 (5) |
N2i—Cd1—N1—C1 | −11.5 (4) | C3—C4—C12—C11 | 179.8 (4) |
N2—Cd1—N1—C1 | 179.7 (4) | C5—C4—C12—C11 | 1.7 (7) |
O1—Cd1—N1—C1 | 79.5 (4) | N2—C11—C12—N1 | −0.9 (6) |
O1i—Cd1—N1—C1 | 114.1 (4) | C7—C11—C12—N1 | 177.6 (4) |
C13—Cd1—N1—C1 | 92.4 (4) | N2—C11—C12—C4 | 179.9 (4) |
N1i—Cd1—N1—C12 | 93.3 (3) | C7—C11—C12—C4 | −1.6 (6) |
N2i—Cd1—N1—C12 | 169.3 (3) | Cd1—O1—C13—O1i | 0.0 |
N2—Cd1—N1—C12 | 0.5 (3) | Cd1—O1—C13—C14 | 180.0 |
O1—Cd1—N1—C12 | −99.7 (3) | N1i—Cd1—C13—O1i | −28.7 (2) |
O1i—Cd1—N1—C12 | −65.1 (4) | N1—Cd1—C13—O1i | 151.3 (2) |
C13—Cd1—N1—C12 | −86.7 (3) | N2i—Cd1—C13—O1i | −102.3 (2) |
N1i—Cd1—N2—C10 | 65.9 (5) | N2—Cd1—C13—O1i | 77.7 (2) |
N1—Cd1—N2—C10 | −176.3 (5) | O1—Cd1—C13—O1i | 180.0 |
N2i—Cd1—N2—C10 | 123.5 (4) | N1i—Cd1—C13—O1 | 151.3 (2) |
O1—Cd1—N2—C10 | −84.0 (4) | N1—Cd1—C13—O1 | −28.7 (2) |
O1i—Cd1—N2—C10 | −29.6 (4) | N2i—Cd1—C13—O1 | 77.7 (2) |
C13—Cd1—N2—C10 | −56.5 (4) | N2—Cd1—C13—O1 | −102.3 (2) |
N1i—Cd1—N2—C11 | −118.8 (3) | O1i—Cd1—C13—O1 | 180.0 |
N1—Cd1—N2—C11 | −1.0 (3) | O3ii—O4—Cl1—O4ii | 80.3 (7) |
N2i—Cd1—N2—C11 | −61.3 (3) | O2ii—O4—Cl1—O4ii | −83.8 (6) |
O1—Cd1—N2—C11 | 91.2 (3) | O3ii—O4—Cl1—O3 | 138.4 (12) |
O1i—Cd1—N2—C11 | 145.7 (3) | O2ii—O4—Cl1—O3 | −25.7 (10) |
C13—Cd1—N2—C11 | 118.7 (3) | O2ii—O4—Cl1—O3ii | −164.2 (12) |
C12—N1—C1—C2 | −1.2 (8) | O3ii—O4—Cl1—O2ii | 164.2 (12) |
Cd1—N1—C1—C2 | 179.7 (5) | O3ii—O4—Cl1—O2 | 17.1 (12) |
N1—C1—C2—C3 | 1.9 (10) | O2ii—O4—Cl1—O2 | −147.1 (9) |
C1—C2—C3—C4 | −1.2 (10) | O3ii—O4—Cl1—O5 | −99.7 (7) |
C2—C3—C4—C12 | 0.0 (9) | O2ii—O4—Cl1—O5 | 96.2 (6) |
C2—C3—C4—C5 | 178.1 (6) | O2ii—O3—Cl1—O4ii | 161.4 (12) |
C3—C4—C5—C6 | 180.0 (6) | O4ii—O3—Cl1—O4 | −136.3 (12) |
C12—C4—C5—C6 | −2.0 (9) | O2ii—O3—Cl1—O4 | 25.0 (10) |
C4—C5—C6—C7 | 2.1 (10) | O4ii—O3—Cl1—O3ii | −78.7 (8) |
C5—C6—C7—C11 | −2.0 (9) | O2ii—O3—Cl1—O3ii | 82.7 (6) |
C5—C6—C7—C8 | 177.8 (6) | O4ii—O3—Cl1—O2ii | −161.4 (12) |
C11—C7—C8—C9 | 0.6 (8) | O4ii—O3—Cl1—O2 | −14.0 (11) |
C6—C7—C8—C9 | −179.2 (6) | O2ii—O3—Cl1—O2 | 147.4 (9) |
C7—C8—C9—C10 | −0.4 (10) | O4ii—O3—Cl1—O5 | 101.3 (8) |
C11—N2—C10—C9 | 1.6 (8) | O2ii—O3—Cl1—O5 | −97.3 (6) |
Cd1—N2—C10—C9 | 176.7 (4) | O3ii—O2—Cl1—O4ii | −152.0 (10) |
C8—C9—C10—N2 | −0.7 (10) | O4ii—O2—Cl1—O4 | 136.2 (12) |
C10—N2—C11—C7 | −1.4 (7) | O3ii—O2—Cl1—O4 | −15.9 (11) |
Cd1—N2—C11—C7 | −177.1 (3) | O4ii—O2—Cl1—O3 | 13.4 (11) |
C10—N2—C11—C12 | 177.1 (4) | O3ii—O2—Cl1—O3 | −138.7 (11) |
Cd1—N2—C11—C12 | 1.3 (5) | O4ii—O2—Cl1—O3ii | 152.0 (10) |
C8—C7—C11—N2 | 0.3 (7) | O4ii—O2—Cl1—O2ii | 75.7 (7) |
C6—C7—C11—N2 | −179.9 (5) | O3ii—O2—Cl1—O2ii | −76.3 (6) |
C8—C7—C11—C12 | −178.1 (5) | O4ii—O2—Cl1—O5 | −104.3 (7) |
C6—C7—C11—C12 | 1.7 (7) | O3ii—O2—Cl1—O5 | 103.7 (6) |
Symmetry codes: (i) −x, y, −z+1/2; (ii) −x+1, y, −z+1/2. |
D—H···A | D—H | H···A | D···A | D—H···A |
O1W—H1WA···O5iii | 0.84 (2) | 2.34 (3) | 3.165 (6) | 168 (10) |
O1W—H1WA···O2iv | 0.84 (2) | 2.58 (8) | 3.230 (13) | 135 (9) |
O1W—H1WB···O1v | 0.86 (2) | 1.93 (6) | 2.713 (6) | 152 (10) |
Symmetry codes: (iii) x, y−1, z; (iv) −x+1, y−1, −z+1/2; (v) x+1, y, z. |
Experimental details
Crystal data | |
Chemical formula | [Cd(C2H4O2)(C12H8N2)2]ClO4·2H2O |
Mr | 667.33 |
Crystal system, space group | Monoclinic, P2/c |
Temperature (K) | 298 |
a, b, c (Å) | 9.887 (4), 8.177 (4), 17.791 (7) |
β (°) | 108.612 (19) |
V (Å3) | 1363.1 (10) |
Z | 2 |
Radiation type | Mo Kα |
µ (mm−1) | 0.96 |
Crystal size (mm) | 0.32 × 0.30 × 0.30 |
Data collection | |
Diffractometer | Bruker SMART CCD |
Absorption correction | – |
No. of measured, independent and observed [I > 2σ(I)] reflections | 8986, 3118, 2584 |
Rint | 0.058 |
(sin θ/λ)max (Å−1) | 0.650 |
Refinement | |
R[F2 > 2σ(F2)], wR(F2), S | 0.059, 0.155, 1.05 |
No. of reflections | 3118 |
No. of parameters | 204 |
No. of restraints | 64 |
H-atom treatment | H atoms treated by a mixture of independent and constrained refinement |
Δρmax, Δρmin (e Å−3) | 1.27, −0.59 |
Computer programs: SMART (Bruker, 2000), SAINT (Bruker, 2000), SAINT, SHELXTL (Bruker, 2000), SHELXTL.
D—H···A | D—H | H···A | D···A | D—H···A |
O1W—H1WA···O5i | 0.84 (2) | 2.34 (3) | 3.165 (6) | 168 (10) |
O1W—H1WA···O2ii | 0.84 (2) | 2.58 (8) | 3.230 (13) | 135 (9) |
O1W—H1WB···O1iii | 0.86 (2) | 1.93 (6) | 2.713 (6) | 152 (10) |
Symmetry codes: (i) x, y−1, z; (ii) −x+1, y−1, −z+1/2; (iii) x+1, y, z. |
The formula unit of (I) comprises a monnuclear [Cd(phen)2(CH 3COO)]+ cation (Fig. 1), a perchlorate anion and a hydrate. The Cd II ion is in a distorted octahedral CdN4O2 geometry coordinated by four N atoms of phen ligands and two O atoms of a chelating bidentate acetato anion. By virtue of the twofold symmetry, atoms C13, C14, O1, O1b atoms are exactly planar (Zhang et al., 2003)[symmety code: (b) -x, y, 1/2 - z]. In the crystal structure, one-dimensional chains along [100] are formed by intermolecular Owater—H···Operchlorate and Owater –H···Owater hydrogen bonds (Fig. 2. and Table 2). In addition weak π-π stacking interactions form chains along [001] as shown in Fig.3. Cg1 and Cg2 are the centroids defined by atoms C4/C5/C6/C7/C11/C12 and N2/C7/C8/C9/C10/C11, respectively. The relevant centroid–centroid and perpendicular distances defining these interactions are 3.746 (2), and 3.623 and 3.602 Å for Cg1··· Cg2i [symmety code:(i) -x,1 - y,1 - z].
