Acta Cryst. (2007). E63, m1972-m1973    [ doi:10.1107/S1600536807029819 ]

Di-[mu]-chlorido-bis{aqua[5-ethyl-2-(5-isopropyl-5-methyl-4-oxo-4,5-dihydro-1H-imidazol-2-yl)nicotinato]copper(II)}

Y. Zhao, K. Qian, Y.-G. Tu, J.-K. Li and W. Liu

Abstract top

In the title centrosymmetric complex, [Cu2(C15H18N3O3)2(H2O)2Cl2], the bridging Cu2Cl2 ring, which is exactly planar by virtue of a crystallographic inversion center, has two different Cu-Cl distances. The dihedral angle between the pyridine and imidazole ring planes is 2.49 (4)°. In the crystal structure, intermolecular O-H...O hydrogen bonds link dimer molecules into a one-dimensional chain in the c-axis direction. The atoms of the isopropyl and ethyl groups are disordered over two sites with approximate occupancies of 0.75:0.25 and 0.5:0.5, respectively.

Comment top

The synthesis and characterization of binuclear copper(II) complexes has made an impact on bio-inorganic chemistry (Solomon et al., 1996). The exchange mechanism of bridged copper(II) complexes has been published (Johnson et al., 1984). An excellent treatise on the orbital interaction in metal dimer complexes was also published (Hoffman et al., 1975).

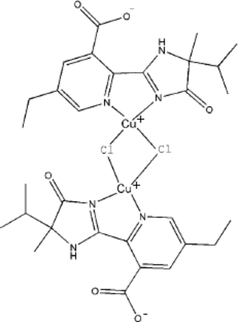

The molecular structure is shown in Fig. 1. The bridging Cu2Cl2 unit is exactly planar. The Cu1—Cl1 and Cu1—Cl1i [symmetry code: (i) 1 − x, 1 − y, 1 − z] distances are not equal [2.2301 (11) and 2.7249 (11) Å]. The distance between Cu and Cu1i is less than the value in di-u-chloro- bis{chloro[1,2-diphenyl-2-(phenylamino)ethanoximato]copper(II)} (Puschmann, Batsanov et al., 2001) [3.4275 (4) versus 3.5172 (4) Å] and is longer than that in di-[µ]-chloro-bis{chloro[1,2-diphenyl-2-(4-chlorophenylamino) ethanoximato]copper(II)} [3.3514 (3) Å] [Puschmann, Howard et al., 2001]. In the asymmetric unit, the dihedral angle between the plane of the pyridine ring and the imidazole group plane is 2.49 (4) °. In the crystal structure, there is a O4—H4B···O1ii [symmetry code: (ii) x, y, z + 1] hydrogen bond (H4B···O1 = 1.70 Å), which links molecules into chains in the c axis direction.

Related literature top

For background information, see: Solomon et al. (1996); Hay et al. (1995); Johnson et al. (1984). For related structures, see: Puschmann, Batsanov et al. (2001); Puschmann, Howard et al. (2001).

Experimental top

A heavy-walled Pyrex tube containing a mixture of CuCl2·2H2O (0.02 g), 5-Ethyl-2-(5-isopropyl-5-methyl-4-oxo-4,5-dihydro-1H-imidazol-2-yl)- nicotinic acid (0.03 g), 0.65 mol/l NaOH solution (0.3 ml) and H2O (2 ml) was frozen in liquid N2, sealed under vacuum and placed in an oven at 423 K. Blue single crystals suitable for X-ray analysis were then obtained after heating for one month.

Refinement top

The water H atoms were located in a difference Fourier map and included in the 'as found' positions with with Uiso(H)= 1.5Ueq(O); All other H atoms were included in calculated positions and refined as riding (C—H= 0.93–0.98 Å; N—H = 0.86 Å), with Uiso(H)= 1.5 Ueq(C) for methyl and 1.2 Ueq(C,N) for all other H atoms. Atoms C9 and C10 of the ethyl group are disordered over two sites with refined occupancies of 0.503 (7) and 0.497 (7) for the major and minor components, respectively. Atoms C13, C14 and C15 of the isopropyl group are disordered, with the ratio between the major and minor components refining to 75 (3):25 (3).

Computing details top

Data collection: SMART (Bruker, 1998); cell refinement: SAINT (Bruker, 1998); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 1997); program(s) used to refine structure: SHELXL97 (Sheldrick, 1997); molecular graphics: DIAMOND (Brandenburg & Berndt (2005); software used to prepare material for publication: SHELXTL (Bruker, 1998).

Figures top
[Figure 1] Fig. 1. : The molecular structure, showing 30% probability displacement ellipsoids. Hydrogen atoms and the minor components of disorder have been omitted [Symmetry code: (A) 1 − x, 1 − y, 1 − z].
[Figure 2] Fig. 2. : The crystal packing, viewed approximately along the a axis, showing the hydrogen bonded chain formed along the c axis. Hydrogen bonds are shown as dashed lines.
Di-µ-chloro-bis{aqua[5-ethyl-2-(5-isopropyl-5-methyl-4-oxo-4,5-dihydro- 1H-imidazol-2-yl)nicotinato]copper(II)} top
