Acta Cryst. (2007). E63, m1915-m1916    [ doi:10.1107/S1600536807028462 ]

Di-[mu]2-aqua-bis[aqua(2,2'-diamino-4,4'-bi-1,3-thiazole-[kappa]2N,N')(4-nitrobenzoato-[kappa]O)cadmium(II)] bis(4-nitrobenzoate)

G.-H. Chen, Y.-Y. Lin, Y.-P. Yu and B.-X. Liu

Abstract top

The title compound, [Cd2(C7H4NO4)2(C6H10N4O2S2)2](C7H4NO4)2, consists of dimeric CdII complex cations and uncoordinated 4-nitrobenzoate anions. Within the complex cation, each CdII cation assumes a distorted octahedral coordination geometry, formed by a diaminobithiazole (DABT) ligand, a 4-nitrobenzoate anion and two coordinated water molecules. Two coordinated water molecules bridge two CdII cations to form the dimeric complex cation across an inversion centre. The two thiazole rings of the chelating DABT ligand are twisted with respect to each other, forming a dihedral angle of 3.91 (18)°. The centroid-to-centroid separation of 3.7601 (19) Å indicates the existence of [pi]-[pi] stacking between nearly parallel thiazole rings in the crystal structure. O-H...O and N-H...O hydrogen bonding between complex cations and uncoordinated 4-nitrobenzoate anions, and between complex cations, helps to stabilize the crystal structure.

Comment top

Transition metal complexes of 2,2'-diamino-4,4'-bi-1,3-thiazole (DABT) have shown potential application in the field of soft magnetic material (Sun et al., 1997) and biological activities, such as the effective inhibitors of DNA synthesis of the tumor cells (Waring, 1981; Fisher et al., 1985). As part of serial structural investigation of metal complexes with DABT (Liu & Xu, 2004), the title CdII complex was recently prepared and its X-ray structure is presented here.

The molecular structure of the title compound is shown in Fig. 1. The crystal of the title compound consists of the dimeric CdII complex cations and uncoordinated 4-nitrobenzoate anions. Within the complex cation, each CdII cation assumes a distorted octahedral coordination geometry (Table 1), formed by DABT, 4-nitrobenzoate anion and two coordinated water molecules. Two coordinated water molecules bridges two CdII cations to form the dimeric complex cation across on an inversion center.

Whithin the complex, the DABT molecule shows approximately coplanar configuration with the dihedral angle 3.91 (18)° between two thiazole rings, which comparable to 2.6 (1)° found in [Mn(C6H6N4S2)(C8H4O4)(H2O)2]·2H2O (Liu et al., 2006) and 4.57 (7)° in [Mn(DABT)(oxydiacetate)] (Luo et al., 2004), but different from 17.23 (7)° found in [Cr(C4H5NO4)(C6H6N4S2)(H2O)]Cl·H2O, (Liu et al., 2004) and 20.02 (8)° found in [Ni(DABT)(iminodiacetate)] (Liu & Xu, 2005).

One oxygen atom O21 of carboxyl group of the 4-nitrobenzoate anion chelates to CdII atom, and hydrogen bonded to the amino group of DABT within the complex, another uncoordinated oxygen atom(O22) is hydrogen bonded to the coordinated water within the complex (Table 2), which helps to stabilize the crystal structure.

The separations of 3.7601 (19) Å between nearly parallel thiazole rings (1 − x,-y,1 − z) suggests the existence of π-π stacking (Fig. 2).

Related literature top

For general background, see: Sun et al. (1997); Waring (1981); Fisher et al. (1985); Liu & Xu (2004). For related structures, see: Luo et al. (2004); Liu et al. (2004, 2006); Liu & Xu (2005).

Experimental top

An ethanol solution (20 ml) containing DABT (0.20 g, 1 mmol) and CdCl2·2.5(H2O) (0.22 g, 1 mmol) was mixed with an aqueous solution (10 ml) of 4-nitrobenzoic acid (0.34 g, 2 mmol) and NaOH (0.08 g, 2 mmol). The mixture was refluxed for 6 h. After cooling to room temperature the solution was filtered. Single crystals of the title compound were obtained from the filtrate after 7 d.

Refinement top

H atoms on carbon atoms were placed in calculated positions with C—H distances = 0.93 Å (aromatic), and were included in the final cycles of refinement in riding mode with Uiso(H) = 1.2Ueq(C). H atoms of amino groups and water molecules were located in a difference Fourier map and included in the structure factor calculations with fixed positional and Uiso(H) = 0.05 Å2.

Computing details top

Data collection: PROCESS-AUTO (Rigaku, 1998); cell refinement: PROCESS-AUTO; data reduction: CrystalStructure (Rigaku/MSC and Rigaku, 2002); program(s) used to solve structure: SIR92 (Altomare et al., 1993); program(s) used to refine structure: SHELXL97 (Sheldrick, 1997); molecular graphics: ORTEP-3 for Windows (Farrugia, 1997); software used to prepare material for publication: WinGX (Farrugia, 1999).

Figures top

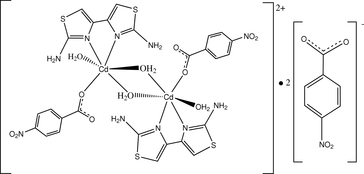

[Figure 1] Fig. 1. The molecular structure of the title compound with 30% probability displacement ellipsoids (arbitrary spheres for H atoms), dashed lines showing the hydrogen bonding.
[Figure 2] Fig. 2. The unit cell packing diagram showing π-π stacking between the S11-thiazole and S12i-thiazole rings [symmetry code: (i) 1 − x,-y,1 − z]. H atoms have been omitted for clarity.
Di-µ2-aqua-bis[aqua(2,2'-diamino-4,4'-bi-1,3-thiazole-κ2N,N')(4- nitrobenzoato-κO)cadmium(II)] bis(4-nitrobenzoate) top
Crystal data top
[Cd2(C7H4NO4)2(C6H10N4O2S2)2](C7H4NO4)2Z = 1
Mr = 1357.85F000 = 680
Triclinic, P1Dx = 1.810 Mg m−3
Hall symbol: -P 1Mo Kα radiation
λ = 0.71073 Å
a = 7.6045 (10) ÅCell parameters from 4280 reflections
b = 10.7869 (14) Åθ = 2.0–25.0º
c = 16.118 (2) ŵ = 1.11 mm−1
α = 97.741 (1)ºT = 295 (2) K
β = 102.600 (1)ºPrism, red
γ = 100.817 (1)º0.30 × 0.26 × 0.17 mm
V = 1245.9 (3) Å3
Data collection top
Rigaku R-AXIS RAPID IP
diffractometer		4310 independent reflections
Radiation source: fine-focus sealed tube3751 reflections with I > 2σ(I)
Monochromator: graphiteRint = 0.019
Detector resolution: 10.0 pixels mm-1θmax = 25.0º
T = 295(2) Kθmin = 1.9º
ω scansh = −8→9
Absorption correction: multi-scan
(ABSCOR; Higashi, 1995)		k = −12→12
Tmin = 0.710, Tmax = 0.825l = −14→19
6467 measured reflections
Refinement top
Refinement on F2Secondary atom site location: difference Fourier map
Least-squares matrix: fullHydrogen site location: inferred from neighbouring sites
R[F2 > 2σ(F2)] = 0.032H-atom parameters constrained
wR(F2) = 0.072  w = 1/[σ2(Fo2) + (0.027P)2 + 0.7682P]
where P = (Fo2 + 2Fc2)/3
S = 1.05(Δ/σ)max = 0.001
4310 reflectionsΔρmax = 0.32 e Å−3
352 parametersΔρmin = −0.40 e Å−3
Primary atom site location: structure-invariant direct methodsExtinction correction: none
Crystal data top
[Cd2(C7H4NO4)2(C6H10N4O2S2)2](C7H4NO4)2γ = 100.817 (1)º
Mr = 1357.85V = 1245.9 (3) Å3
Triclinic, P1Z = 1
a = 7.6045 (10) ÅMo Kα
b = 10.7869 (14) ŵ = 1.11 mm−1
c = 16.118 (2) ÅT = 295 (2) K
α = 97.741 (1)º0.30 × 0.26 × 0.17 mm
β = 102.600 (1)º
Data collection top
Rigaku R-AXIS RAPID IP
diffractometer		4310 independent reflections
Absorption correction: multi-scan
(ABSCOR; Higashi, 1995)		3751 reflections with I > 2σ(I)
Tmin = 0.710, Tmax = 0.825Rint = 0.019
6467 measured reflections
Refinement top
R[F2 > 2σ(F2)] = 0.032352 parameters
wR(F2) = 0.072H-atom parameters constrained
S = 1.05Δρmax = 0.32 e Å−3
4310 reflectionsΔρmin = −0.40 e Å−3
Special details top

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
Cd0.57818 (3)0.34675 (2)0.481336 (15)0.03068 (9)
O10.6890 (3)0.56396 (19)0.52648 (14)0.0318 (5)
H1A0.73000.59380.48770.050*
H1B0.77720.58900.57500.050*
O20.8663 (3)0.3128 (2)0.50161 (16)0.0460 (6)
H2A0.90320.28980.45780.050*
H2B0.95500.34910.54320.050*
O210.5914 (3)0.3862 (2)0.34503 (14)0.0425 (6)
O220.7996 (3)0.5726 (2)0.38119 (14)0.0419 (6)
O230.8204 (5)0.5367 (3)−0.0475 (2)0.0797 (10)
O240.6407 (6)0.3528 (4)−0.0772 (2)0.0953 (12)
O311.1054 (3)0.3710 (2)0.32199 (15)0.0488 (7)
O320.9237 (4)0.2072 (2)0.35451 (16)0.0506 (7)
O330.6588 (5)−0.0802 (4)−0.0749 (2)0.0964 (13)
O340.8323 (6)0.0790 (4)−0.1054 (2)0.0932 (12)
N110.3961 (4)0.1488 (2)0.42375 (17)0.0316 (6)
N120.3833 (5)0.1243 (3)0.27703 (19)0.0543 (9)
H12A0.33110.08150.22570.050*
H12B0.46300.19920.28580.050*
N130.5098 (3)0.2598 (2)0.59931 (16)0.0301 (6)
N140.6762 (4)0.4014 (3)0.72924 (18)0.0460 (8)
H14A0.68240.42450.78320.050*
H14B0.72250.45570.70000.050*
N210.7267 (5)0.4480 (4)−0.0264 (2)0.0540 (9)
N310.7664 (6)0.0236 (4)−0.0541 (2)0.0660 (11)
S110.16984 (14)−0.05631 (9)0.33490 (6)0.0464 (2)
S120.44067 (14)0.18707 (9)0.73631 (6)0.0455 (2)
C110.3181 (4)0.0854 (3)0.4812 (2)0.0321 (8)
C120.1944 (5)−0.0249 (3)0.4448 (2)0.0436 (9)
H120.1305−0.07740.47490.052*
C130.3308 (5)0.0853 (3)0.3445 (2)0.0358 (8)
C140.3819 (4)0.1423 (3)0.5736 (2)0.0320 (8)
C150.3295 (5)0.0901 (3)0.6382 (2)0.0424 (9)
H150.24500.01250.63080.051*
C160.5543 (5)0.2946 (3)0.6835 (2)0.0314 (7)
C210.7022 (4)0.4717 (3)0.2335 (2)0.0315 (7)
C220.8271 (5)0.5632 (3)0.2099 (2)0.0427 (9)
H220.90640.62960.25200.051*
C230.8349 (5)0.5569 (4)0.1256 (2)0.0483 (10)
H230.91920.61810.11000.058*
C240.7163 (5)0.4590 (4)0.0644 (2)0.0409 (9)
C250.5894 (5)0.3676 (4)0.0844 (2)0.0462 (10)
H250.51030.30190.04180.055*
C260.5824 (5)0.3758 (4)0.1701 (2)0.0436 (9)
H260.49550.31570.18510.052*
C270.6992 (5)0.4782 (3)0.3278 (2)0.0339 (8)
C310.9354 (5)0.2001 (3)0.2088 (2)0.0357 (8)
C321.0135 (5)0.2538 (4)0.1488 (2)0.0475 (10)
H321.10440.32940.16660.057*
C330.9584 (6)0.1967 (4)0.0623 (3)0.0544 (11)
H331.00990.23390.02180.065*
C340.8269 (6)0.0847 (4)0.0378 (2)0.0492 (10)
C350.7478 (6)0.0278 (4)0.0956 (3)0.0634 (12)
H350.6596−0.04920.07770.076*
C360.8020 (6)0.0875 (4)0.1808 (3)0.0554 (11)
H360.74710.05110.22070.067*
C370.9909 (5)0.2639 (3)0.3028 (2)0.0368 (8)
