Acta Cryst. (2007). E63, m2091-m2092    [ doi:10.1107/S1600536807032540 ]

{[mu]-6,6'-Diethoxy-2,2'-[ethane-1,2-diylbis(nitrilomethylidyne)]diphenolato}trinitratopraseodymium(III)zinc(II)

J.-R. Chen, Y. Sui, Q.-Y. Luo and R.-Q. Jiang

Abstract top

In the title heteronuclear ZnII-PrIII complex (systematic name: {6,6'-diethoxy-2,2'-[ethane-1,2-diylbis(nitrilomethylidyne)]diphenolato-1[kappa]4O1,O1',O6,O6':2[kappa]4O1,N,N',O1'}trinitrato-1[kappa]6O,O'-praseodymium(III)zinc(II)), [PrZn(C20H22N2O4)(NO3)3], with the hexadentate Schiff base compartmental ligand N,N'-bis(3-ethoxysalicylidene)ethylenediamine (H22L), the ZnII and PrIII atoms are doubly bridged by two phenolate O atoms provided by the Schiff base ligand. The coordination of the ZnII atom is approximately square planar, involving the two imine N atoms and the two phenolate O atoms. The PrIII centre has a decacoordination environment of O atoms, formed by the phenolate ligands, the two ethoxy O atoms and two O atoms from each of the three nitrates. Some weak C-H...O and O...Zn [3.159 (4) Å] interactions generate a two-dimensional zigzag sheet.

Comment top

The potential applications of trivalent lanthanide complexes as contrast agent for magnetic resonance imaging and stains for fluorescence imaging have prompted considerable interest in the preparation, magnetic and optical properties of 3 d–4f hetorometallic dinuclear complexes (Baggio et al., 2000; Caravan et al., 1999; Edder et al., 2000; Knoer et al., 2005). As part of our investigations into the structure and applications of 3 d-4f hetorometallic Schiff base complexes (Sui et al., 2006), we report here the synthesis and X-ray crystal structure analysis of the title complex, (I), a new ZnII–PrIII complex with salen-type Schiff base N,N'-bis(3-ethoxysalicylidene) ethylenediamine(H2L).

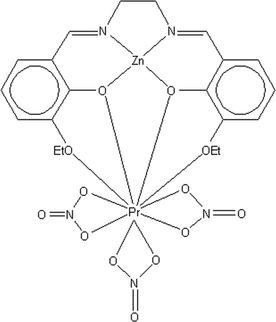

Complex (I) crystallizes in the space group P212121, with zinc and praseodymium doubly bridged by two phenolate O atoms provided by a salen-type Schiff base ligand. The inner salen-type cavity is occupied by zinc(II), while praseodymium(III) is present in the open and larger portion of the dinucleating compartmental Schiff base ligand. The dihedral angles between the mean planes of Zn1/O1/O2 and Pr1/O1/O2 is 3.45 (15)° suggesting that the bridging moiety is almost planar; the deviation of atoms from the least squares Zn1/O1/O2/Pr1 plane being 0.0293 (3)Å for Zn, 0.0199 (3)Å for Pr, -0.0244 (4)Å for O1 and -0.0248 (4)Å for O2.

The praseodymium(III) center in (I) has a decacoordination environment of O atoms. In addition to the phenolate ligands, two ethoxy O atoms coordinate to this metal center, two O atoms from each of the three nitrates chelate to praseodymium to complete the decacoordination. The three kinds of Pr—O bond distances are significantly different, the shortest being the Pr—O(phenolate) and longest being the Pr—O(ethoxy) separations.

The coordination of zinc(II) is approximately square planar. The donor centers are alternatively above and below the mean N2O2 plane with an average deviation from the plane of 0.0901 (3) Å, while Zn1 is 0.0437 (3)Å below this square plane.

Adjacent molecules are held together by weak interactions (O10···Zn1 = 3.159 (5) Å, C7—H7···O7i = 3.276 (5), C9—H9A···O7ii = 3.266 (5) and C17—H17A···O8iii = 3.528 (5); symmetry codes: (i) 1 - x, y - 1/2, 1/2 - z; (ii) x - 1, y, z; (iii) x - 1/2, 5/2 - y, z.) these link the molecules into a two-dimensional zigzag sheet (Fig. 2).

Related literature top

For related literature, see: Baggio et al. (2000); Caravan et al. (1999); Edder et al. (2000); Knoer et al. (2005); Sui et al. (2006).

Experimental top

H2L was prepared by the 2:1 condensation of 3-ethoxysalicylaldehyde and ethylenediamine in methanol. Complex (I) was obtained by the treatment of zinc(II) acetate dihydrate (0.188 g, 1 mmol) with H2L(0.356 g, 1 mmol) in methanol solution (100 ml) under reflux for 3 h and then for another 3 h after the addition of praseodymium(III) nitrate hexahydrate (0.435 g, 1 mmol). The reaction mixture was cooled and the resulting precipitate was filtered off, washed with diethyl ether and dried in vacuo. Single crystals of (I) suitable for X-ray analysis were obtained by slow evaporation at room temperature of a methanol solution. Analysis calculated for C20H22N5O13PrZn: C 32.17, H 2.97, N 9.38, Pr 18.87, Zn 8.76%; found: C 32.28, H 2.95, N 9.31, Pr 19.05, Zn 8.78%. IR (KBr, cm-1): 1643 (C=N), 1385, 1491 (nitrate).

Refinement top

The H atoms were positioned geometrically and treated as riding on their parent atoms, with C—H distances of 0.97 (methylene) and 0.96 Å (methyl), and with Uiso(H) = 1.5Ueq(C) for methyl H atoms and 1.2Ueq(C) for other H atoms.

Computing details top

Data collection: APEX2 (Bruker, 2004); cell refinement: APEX2; data reduction: APEX2; program(s) used to solve structure: SHELXS97 (Sheldrick, 1997); program(s) used to refine structure: SHELXL97 (Sheldrick, 1997); molecular graphics: APEX2; software used to prepare material for publication: APEX2 and publCIF (Westrip, 2007).

Figures top
[Figure 1] Fig. 1. The molecular structure of (I), showing 30% probability displacement ellipsoids. All the H atoms on carbon have been omitted for clarity.
[Figure 2] Fig. 2. The packing diagram of (I), viewed along the b axis; hydrogen bonds are shown as dashed lines.
{6,6'-diethoxy-2,2'-[ethane-1,2-diylbis(nitrilomethylidyne)]diphenolato-\ 1κ4O1,O1',O6,O6':2κ4O1,\ N,N',O1'}trinitrato-1κ6O,O'-\ praseodymium(III)zinc(II)) top
Crystal data top
[PrZn(C20H22N2O4)(NO3)3]F(000) = 1480
Mr = 746.71Dx = 1.960 Mg m−3
Orthorhombic, P212121Mo Kα radiation, λ = 0.71073 Å
Hall symbol: P 2ac 2abCell parameters from 19198 reflections
a = 8.6317 (7) Åθ = 1.9–28.2°
b = 13.8782 (11) ŵ = 2.93 mm−1
c = 21.1267 (16) ÅT = 293 K
V = 2530.8 (3) Å3Block, yellow
Z = 40.21 × 0.15 × 0.13 mm
Data collection top
Bruker APEXII area-detector
diffractometer		6058 independent reflections
Radiation source: fine-focus sealed tube4803 reflections with I > 2σ(I)
Graphite monochromatorRint = 0.031
Detector resolution: 0 pixels mm-1θmax = 28.2°, θmin = 1.9°
φ and ω scansh = −11→11
Absorption correction: multi-scan
(SADABS; Bruker, 2004)		k = −18→17
Tmin = 0.605, Tmax = 0.683l = −27→28
19198 measured reflections
Refinement top
Refinement on F2Secondary atom site location: difference Fourier map
Least-squares matrix: fullHydrogen site location: inferred from neighbouring sites
R[F2 > 2σ(F2)] = 0.027H-atom parameters constrained
wR(F2) = 0.061 w = 1/[σ2(Fo2) + (0.0273P)2]
where P = (Fo2 + 2Fc2)/3
S = 1.01(Δ/σ)max = 0.002
6058 reflectionsΔρmax = 0.50 e Å−3
363 parametersΔρmin = −0.62 e Å−3
0 restraintsAbsolute structure: Flack (1983), with how many Friedel pairs?
Primary atom site location: structure-invariant direct methodsFlack parameter: 0.021 (12)
Crystal data top
[PrZn(C20H22N2O4)(NO3)3]V = 2530.8 (3) Å3
Mr = 746.71Z = 4
Orthorhombic, P212121Mo Kα radiation
a = 8.6317 (7) ŵ = 2.93 mm−1
b = 13.8782 (11) ÅT = 293 K
c = 21.1267 (16) Å0.21 × 0.15 × 0.13 mm
Data collection top
Bruker APEXII area-detector
diffractometer		6058 independent reflections
Absorption correction: multi-scan
(SADABS; Bruker, 2004)		4803 reflections with I > 2σ(I)
Tmin = 0.605, Tmax = 0.683Rint = 0.031
19198 measured reflectionsθmax = 28.2°
Refinement top
R[F2 > 2σ(F2)] = 0.027H-atom parameters constrained
wR(F2) = 0.061Δρmax = 0.50 e Å−3
S = 1.01Δρmin = −0.62 e Å−3
6058 reflectionsAbsolute structure: Flack (1983), with how many Friedel pairs?
363 parametersFlack parameter: 0.021 (12)
0 restraints
Special details top

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
O70.9052 (4)1.0762 (3)0.27853 (15)0.0806 (12)
O101.2389 (4)1.0397 (3)0.07303 (19)0.0945 (13)
O130.5733 (4)1.0012 (3)−0.08812 (14)0.0756 (9)
O10.5859 (3)0.87492 (16)0.13666 (12)0.0373 (6)
Pr10.758724 (19)0.999692 (14)0.094892 (8)0.03144 (5)
Zn10.43316 (5)0.94378 (3)0.18296 (2)0.03984 (11)
O20.5377 (3)1.05631 (17)0.15394 (11)0.0344 (6)
C160.4779 (4)1.1447 (2)0.15604 (17)0.0324 (8)
N20.3000 (3)1.0138 (2)0.23919 (15)0.0399 (8)
C20.7087 (4)0.7432 (2)0.08988 (17)0.0328 (8)
N10.3204 (4)0.8318 (2)0.20905 (16)0.0372 (8)
O30.8110 (3)0.81322 (18)0.06945 (13)0.0377 (6)
C10.5866 (4)0.7798 (2)0.12626 (18)0.0326 (8)
C150.5382 (4)1.2125 (2)0.11381 (18)0.0333 (9)
O40.6539 (3)1.17627 (17)0.07518 (12)0.0365 (6)
C100.2792 (4)1.1050 (3)0.23906 (18)0.0389 (9)
H100.21041.13050.26860.047*
C110.3548 (5)1.1715 (3)0.19636 (19)0.0381 (10)
C60.4752 (4)0.7162 (3)0.15047 (18)0.0362 (9)
C80.1862 (5)0.8551 (3)0.2493 (2)0.0450 (10)
H8A0.16780.80360.27940.054*
H8B0.09410.86300.22350.054*
C70.3493 (4)0.7452 (3)0.1915 (2)0.0402 (10)
H70.28370.69710.20630.048*
C90.2226 (4)0.9483 (3)0.28391 (18)0.0432 (9)
H9A0.12780.97740.29950.052*
H9B0.28970.93550.31980.052*
O110.7691 (3)1.0125 (2)−0.02391 (13)0.0544 (7)
N50.6277 (4)0.9941 (3)−0.03462 (16)0.0501 (8)
O60.8208 (4)0.9677 (2)0.21236 (15)0.0540 (9)
O50.8639 (3)1.1122 (2)0.18006 (15)0.0514 (7)
O81.0052 (4)1.0817 (3)0.04956 (16)0.0674 (10)
O91.0450 (3)0.9619 (2)0.11152 (15)0.0542 (8)
O120.5486 (3)0.9684 (2)0.01210 (14)0.0600 (9)
N30.8645 (4)1.0526 (3)0.22519 (19)0.0494 (9)
N41.1002 (4)1.0277 (3)0.07785 (18)0.0536 (11)
C30.7170 (5)0.6468 (3)0.07493 (19)0.0439 (10)
H30.79850.62340.05060.053*
C170.7260 (5)1.2413 (3)0.02942 (18)0.0425 (9)
H17A0.64641.28070.00990.051*
H17B0.77481.2035−0.00360.051*
C190.9463 (4)0.7813 (3)0.03462 (19)0.0441 (10)
H19A0.98880.83510.01100.053*
H19B0.91580.73210.00450.053*
C40.6018 (5)0.5849 (3)0.0968 (2)0.0499 (11)
H40.60480.52000.08590.060*
C50.4870 (5)0.6179 (3)0.1333 (2)0.0448 (10)
H50.41250.57490.14780.054*
C201.0685 (5)0.7415 (3)0.0778 (2)0.0585 (12)
H20A1.09600.78920.10870.088*
H20B1.15840.72440.05350.088*
H20C1.02920.68520.09890.088*
C140.4813 (4)1.3053 (3)0.1114 (2)0.0417 (10)
H140.52161.34970.08290.050*
C120.3023 (5)1.2676 (3)0.1951 (2)0.0468 (11)
H120.22621.28760.22330.056*
C130.3623 (5)1.3311 (3)0.1527 (2)0.0507 (11)
H130.32291.39350.15120.061*
C180.8445 (5)1.3056 (3)0.0590 (2)0.0572 (13)
H18A0.79411.35030.08700.086*
H18B0.89841.34050.02650.086*
H18C0.91701.26730.08260.086*
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
O70.086 (3)0.112 (3)0.0432 (18)0.047 (2)−0.0212 (19)−0.025 (2)
O100.0346 (17)0.142 (4)0.107 (3)−0.021 (2)0.0064 (19)0.004 (3)
O130.103 (2)0.074 (2)0.0496 (18)−0.005 (2)−0.0228 (18)0.000 (2)
O10.0430 (15)0.0200 (12)0.0490 (16)−0.0035 (11)0.0155 (13)0.0011 (11)
Pr10.03149 (9)0.02595 (9)0.03689 (9)−0.00118 (11)0.00386 (8)0.00233 (10)
Zn10.0393 (2)0.0319 (2)0.0484 (2)−0.00127 (19)0.0103 (2)0.0038 (2)
O20.0319 (13)0.0252 (12)0.0461 (14)0.0024 (11)0.0110 (12)0.0032 (12)
C160.035 (2)0.0256 (18)0.037 (2)0.0001 (14)−0.0055 (17)0.0018 (16)
N20.0380 (15)0.046 (2)0.0360 (17)−0.0022 (14)0.0057 (13)0.0045 (16)
C20.0385 (19)0.0280 (18)0.0318 (19)−0.0010 (13)−0.0040 (17)0.0032 (16)
N10.0367 (18)0.0365 (19)0.0385 (19)−0.0051 (14)0.0046 (15)0.0092 (15)
O30.0353 (13)0.0325 (14)0.0455 (16)0.0012 (11)0.0085 (12)−0.0013 (12)
C10.035 (2)0.0272 (19)0.035 (2)−0.0006 (15)−0.0058 (18)0.0001 (16)
C150.032 (2)0.0285 (19)0.040 (2)−0.0009 (14)−0.0042 (17)−0.0023 (16)
O40.0435 (15)0.0250 (13)0.0411 (16)−0.0022 (11)0.0063 (12)0.0077 (11)
C100.037 (2)0.040 (2)0.040 (2)0.0069 (17)0.0043 (18)0.0001 (18)
C110.036 (2)0.037 (2)0.042 (3)0.0026 (16)0.0013 (19)0.0026 (18)
C60.044 (2)0.0284 (19)0.036 (2)−0.0056 (15)−0.0051 (18)0.0051 (17)
C80.036 (2)0.054 (3)0.045 (2)−0.0030 (18)0.0102 (19)0.012 (2)
C70.038 (2)0.035 (2)0.047 (3)−0.0098 (16)−0.003 (2)0.0125 (19)
C90.042 (2)0.044 (2)0.043 (2)0.0011 (18)0.0110 (19)0.0094 (19)
O110.0550 (17)0.062 (2)0.0461 (15)−0.0113 (17)0.0047 (13)0.0002 (14)
N50.065 (2)0.0392 (18)0.046 (2)0.001 (2)−0.0037 (18)−0.011 (2)
O60.059 (2)0.056 (2)0.0468 (18)0.0084 (15)0.0059 (15)0.0152 (15)
O50.0562 (18)0.0475 (17)0.0505 (18)0.0016 (14)−0.0056 (16)−0.0008 (16)
O80.0447 (18)0.086 (3)0.072 (2)−0.0162 (16)−0.0007 (17)0.033 (2)
O90.0414 (16)0.0446 (16)0.077 (2)0.0007 (13)0.0054 (16)0.0056 (15)
O120.0477 (16)0.084 (3)0.0482 (17)−0.0121 (15)0.0016 (15)−0.0030 (16)
N30.0357 (19)0.064 (3)0.049 (2)0.0208 (19)−0.0028 (17)−0.010 (2)
N40.038 (2)0.069 (3)0.054 (2)−0.0086 (17)0.0078 (18)−0.0151 (19)
C30.058 (3)0.031 (2)0.044 (2)0.0052 (18)0.001 (2)−0.0029 (17)
C170.054 (2)0.0320 (19)0.041 (2)−0.0025 (17)0.009 (2)0.0081 (16)
C190.039 (2)0.041 (2)0.052 (3)0.0045 (17)0.008 (2)−0.004 (2)
C40.065 (3)0.028 (2)0.057 (3)−0.0013 (17)−0.006 (2)0.001 (2)
C50.057 (3)0.024 (2)0.053 (2)−0.0102 (17)−0.003 (2)0.0066 (18)
C200.050 (3)0.050 (3)0.075 (3)0.012 (2)−0.004 (3)−0.008 (2)
C140.043 (2)0.035 (2)0.048 (2)−0.0004 (16)−0.004 (2)0.0052 (19)
C120.046 (2)0.037 (2)0.058 (3)0.0104 (17)0.007 (2)−0.006 (2)
C130.059 (3)0.027 (2)0.066 (3)0.0111 (18)−0.002 (2)0.001 (2)
C180.063 (3)0.040 (3)0.069 (3)−0.011 (2)0.020 (2)−0.003 (2)
Geometric parameters (Å, º) top
O7—N31.225 (5)C6—C51.417 (5)
O10—N41.213 (4)C6—C71.447 (6)
O13—N51.228 (4)C8—C91.519 (6)
O1—C11.339 (4)C8—H8A0.9700
O1—Zn11.900 (2)C8—H8B0.9700
O1—Pr12.450 (2)C7—H70.9300
Pr1—O22.411 (2)C9—H9A0.9700
Pr1—O112.518 (3)C9—H9B0.9700
Pr1—O52.549 (3)O11—N51.267 (4)
Pr1—O92.550 (3)N5—O121.252 (4)
Pr1—O122.557 (3)O6—N31.266 (5)
Pr1—O62.578 (3)O5—N31.262 (5)
Pr1—O82.596 (3)O8—N41.262 (4)
Pr1—O42.645 (2)O9—N41.252 (4)
Pr1—O32.681 (2)C3—C41.394 (6)
Zn1—O21.905 (2)C3—H30.9300
Zn1—N11.915 (3)C17—C181.494 (6)
Zn1—N21.917 (3)C17—H17A0.9700
O2—C161.332 (4)C17—H17B0.9700
C16—C151.397 (5)C19—C201.500 (6)
C16—C111.411 (5)C19—H19A0.9700
N2—C101.279 (5)C19—H19B0.9700
N2—C91.471 (5)C4—C51.335 (5)
C2—C31.376 (5)C4—H40.9300
C2—O31.383 (4)C5—H50.9300
C2—C11.400 (5)C20—H20A0.9600
N1—C71.282 (5)C20—H20B0.9600
N1—C81.473 (5)C20—H20C0.9600
O3—C191.449 (4)C14—C131.394 (6)
C1—C61.401 (5)C14—H140.9300
C15—C141.379 (5)C12—C131.360 (6)
C15—O41.384 (4)C12—H120.9300
O4—C171.462 (4)C13—H130.9300
C10—C111.446 (5)C18—H18A0.9600
C10—H100.9300C18—H18B0.9600
C11—C121.409 (5)C18—H18C0.9600
C1—O1—Zn1125.7 (2)N2—C10—C11124.7 (4)
C1—O1—Pr1129.5 (2)N2—C10—H10117.6
Zn1—O1—Pr1104.62 (9)C11—C10—H10117.6
O2—Pr1—O164.04 (8)C12—C11—C16118.7 (4)
O2—Pr1—O11121.38 (9)C12—C11—C10118.1 (4)
O1—Pr1—O11115.51 (9)C16—C11—C10123.3 (3)
O2—Pr1—O573.57 (9)C1—C6—C5117.6 (4)
O1—Pr1—O5113.29 (9)C1—C6—C7124.0 (3)
O11—Pr1—O5130.36 (10)C5—C6—C7118.4 (3)
O2—Pr1—O9139.68 (9)N1—C8—C9107.6 (3)
O1—Pr1—O9113.26 (9)N1—C8—H8A110.2
O11—Pr1—O996.75 (10)C9—C8—H8A110.2
O5—Pr1—O971.56 (9)N1—C8—H8B110.2
O2—Pr1—O1281.25 (9)C9—C8—H8B110.2
O1—Pr1—O1272.21 (10)H8A—C8—H8B108.5
O11—Pr1—O1249.85 (9)N1—C7—C6125.5 (4)
O5—Pr1—O12147.08 (10)N1—C7—H7117.3
O9—Pr1—O12138.30 (10)C6—C7—H7117.3
O2—Pr1—O673.90 (9)N2—C9—C8108.1 (3)
O1—Pr1—O670.01 (10)N2—C9—H9A110.1
O11—Pr1—O6164.72 (10)C8—C9—H9A110.1
O5—Pr1—O649.60 (10)N2—C9—H9B110.1
O9—Pr1—O668.31 (10)C8—C9—H9B110.1
O12—Pr1—O6140.99 (10)H9A—C9—H9B108.4
O2—Pr1—O8134.14 (11)N5—O11—Pr197.5 (2)
O1—Pr1—O8160.35 (10)O13—N5—O12122.7 (4)
O11—Pr1—O864.67 (10)O13—N5—O11121.1 (4)
O5—Pr1—O872.54 (11)O12—N5—O11116.2 (3)
O9—Pr1—O849.23 (10)N3—O6—Pr196.2 (2)
O12—Pr1—O8113.79 (10)N3—O5—Pr197.7 (2)
O6—Pr1—O8105.08 (11)N4—O8—Pr195.6 (2)
O2—Pr1—O460.58 (8)N4—O9—Pr198.1 (2)
O1—Pr1—O4120.21 (8)N5—O12—Pr196.0 (2)
O11—Pr1—O477.86 (9)O7—N3—O5121.4 (4)
O5—Pr1—O470.47 (9)O7—N3—O6122.1 (5)
O9—Pr1—O4122.93 (8)O5—N3—O6116.5 (4)
O12—Pr1—O478.87 (9)O10—N4—O9121.6 (4)
O6—Pr1—O4112.47 (9)O10—N4—O8121.3 (4)
O8—Pr1—O479.40 (10)O9—N4—O8117.1 (3)
O2—Pr1—O3123.47 (8)C2—C3—C4119.1 (4)
O1—Pr1—O359.51 (7)C2—C3—H3120.5
O11—Pr1—O382.10 (9)C4—C3—H3120.5
O5—Pr1—O3132.26 (9)O4—C17—C18112.5 (3)
O9—Pr1—O370.49 (8)O4—C17—H17A109.1
O12—Pr1—O379.54 (9)C18—C17—H17A109.1
O6—Pr1—O389.53 (9)O4—C17—H17B109.1
O8—Pr1—O3102.19 (10)C18—C17—H17B109.1
O4—Pr1—O3156.94 (9)H17A—C17—H17B107.8
O1—Zn1—O285.30 (10)O3—C19—C20111.7 (3)
O1—Zn1—N195.31 (12)O3—C19—H19A109.3
O2—Zn1—N1177.18 (13)C20—C19—H19A109.3
O1—Zn1—N2171.90 (13)O3—C19—H19B109.3
O2—Zn1—N293.89 (12)C20—C19—H19B109.3
N1—Zn1—N285.89 (15)H19A—C19—H19B107.9
C16—O2—Zn1124.1 (2)C5—C4—C3120.6 (4)
C16—O2—Pr1128.6 (2)C5—C4—H4119.7
Zn1—O2—Pr1105.91 (10)C3—C4—H4119.7
O2—C16—C15117.0 (3)C4—C5—C6122.1 (4)
O2—C16—C11123.6 (3)C4—C5—H5118.9
C15—C16—C11119.3 (3)C6—C5—H5118.9
C10—N2—C9123.3 (3)C19—C20—H20A109.5
C10—N2—Zn1125.8 (3)C19—C20—H20B109.5
C9—N2—Zn1110.9 (3)H20A—C20—H20B109.5
C3—C2—O3125.3 (3)C19—C20—H20C109.5
C3—C2—C1121.2 (3)H20A—C20—H20C109.5
O3—C2—C1113.4 (3)H20B—C20—H20C109.5
C7—N1—C8121.7 (3)C15—C14—C13118.7 (4)
C7—N1—Zn1125.4 (3)C15—C14—H14120.7
C8—N1—Zn1112.8 (3)C13—C14—H14120.7
C2—O3—C19117.3 (3)C13—C12—C11120.3 (4)
C2—O3—Pr1120.5 (2)C13—C12—H12119.9
C19—O3—Pr1122.2 (2)C11—C12—H12119.9
O1—C1—C2116.8 (3)C12—C13—C14121.7 (4)
O1—C1—C6123.9 (3)C12—C13—H13119.2
C2—C1—C6119.3 (3)C14—C13—H13119.2
C14—C15—O4125.1 (3)C17—C18—H18A109.5
C14—C15—C16121.3 (3)C17—C18—H18B109.5
O4—C15—C16113.7 (3)H18A—C18—H18B109.5
C15—O4—C17118.2 (3)C17—C18—H18C109.5
C15—O4—Pr1119.4 (2)H18A—C18—H18C109.5
C17—O4—Pr1122.0 (2)H18B—C18—H18C109.5
Hydrogen-bond geometry (Å, º) top
D—H···AD—HH···AD···AD—H···A
C20—H20A···O90.962.443.148 (5)131
C17—H17A···O8i0.972.593.528 (5)163
C9—H9A···O7ii0.972.403.266 (5)148
C7—H7···O7iii0.932.363.276 (5)168
Symmetry codes: (i) x−1/2, −y+5/2, −z; (ii) x−1, y, z; (iii) −x+1, y−1/2, −z+1/2.
Hydrogen-bond geometry (Å, º) top
D—H···AD—HH···AD···AD—H···A
C20—H20A···O90.962.443.148 (5)130.6
C17—H17A···O8i0.972.593.528 (5)162.7
C9—H9A···O7ii0.972.403.266 (5)148.3
C7—H7···O7iii0.932.363.276 (5)167.6
Symmetry codes: (i) x−1/2, −y+5/2, −z; (ii) x−1, y, z; (iii) −x+1, y−1/2, −z+1/2.
Acknowledgements top

The authors gratefully acknowledge financial support from the Department of Education, JiangXi Province (grant Nos. 2007317 and 05YB195).

references
References top

Baggio, R., Garland, M. T., Moreno, Y., Pena, O., Perec, M. & Spodine, E. (2000). J. Chem. Soc. Dalton Trans. pp. 2061–2066.

Bruker (2004). APEX2. Version 1.22. Bruker AXS Inc., Madison, Wisconsin, USA

Caravan, P., Ellison, J. J., McMurry, T. J. & Lauffer, R. B. (1999). Chem. Rev. 99, 2293–2352.

Edder, C., Piguet, C., Bernardinelli, G., Mareda, J., Bochet, C. G., Bunzli, J.-C. G. & Hopfgartner, G. (2000). Inorg. Chem. 39, 5059–5073.

Flack, H. D. (1983). Acta Cryst. A39, 876–881.

Knoer, R., Lin, H.-H., Wei, H.-H. & Mohanta, S. (2005). Inorg. Chem. 44, 3524–3536.

Sheldrick, G. M. (1997). SHELXS97 and SHELXL97. University of Göttingen, Germany

Sui, Y., Fang, X.-N., Xiao, Y.-A., Luo, Q.-Y. & Li, M.-H. (2006). Acta Cryst. E62, m2230–m2232.

Westrip, S. P. (2007). publCIF. In preparation.
