Acta Cryst. (2007). E63, m2196-m2197    [ doi:10.1107/S1600536807035349 ]

Tetrakis[[mu]-(2-pyridyloxy)acetato-[kappa]2O:O']bis{(1,10-phenanthroline-[kappa]2N,N')[(2-pyridyloxy)acetato-[kappa]O]neodymium(III)}

T. Liu, Z.-W. Wang, Y.-X. Wang and Z.-P. Xie

Abstract top

The molecule of the title compound, [Nd2(C7H6NO3)6(C12H8N2)2], has an inversion centre midway between the two NdIII ions, which are bridged by two tridentate and two bidentate carboxylate groups. Each Nd atom is seven-coordinated by two N atoms of a 1,10-phenanthroline ligand and five O atoms of (2-pyridyloxy)acetate ligands. In the crystal structure, intermolecular C-H...O hydrogen bonds lead to a supramolecular network.

Comment top

The crystal structures of tetrakis(µ-(2-pyridyloxy)acetato)bis[(1,10-phenanthroline)((2-pyridyloxy)acetato) lanthanum(III)], (II), (Liu et al., 2007a) and tetrakis(µ-(2-pyridyloxy)acetato) bis[(1,10-phenanthroline)((2-pyridyloxy)acetato)praseodymium(III)], (III), (Liu et al., 2007b) have previously been reported. The crystal structure determination of the title compound, (I), has been carried out in order to elucidate the molecular conformation and to compare it with those of (II) and (III).

In the molecule of (I) (Fig. 1), the ligand bond lengths and angles are within normal ranges (Allen et al., 1987). It has an inversion centre between the two NdIII ions, in which they are bridged by the two terdentate and the two bidentate carboxylate groups. Each Nd atom is seven-coordinated by the two N atoms of 1,10-phenanthroline (phen) ligand and the five O atoms of 2-pyridyloxy- acetic acid ligands. The Nd—O and Nd—N bonds are in the range of [2.387 (3)–2.784 (4) Å] and [2.701 (4)–2.742 (4) Å], respectively (Table 1), as in (II) and (III).

In the crystal structure, intermolecular C—H···O hydrogen bonds (Table 2) lead to a supramolecular network structure (Fig. 2), in which they may be effective in the stabilization of the structure, as in (II) and (III).

The compounds, (I), (II) and (III), are isostructural.

Related literature top

For related structures, see: Liu et al. (2007a,b). For bond-length data, see: Allen et al. (1987).

Experimental top

Crystals of the title compound were synthesized using hydrothermal method in a 23 ml Teflon-lined Parr bomb. Neodymium (III) chloride hexahydrate (143.4 mg, 0.4 mmol), phen (79.2 mg, 0.4 mmol), phenoxyacetic acid (182.6 mg, 1.2 mmol) and distilled water (6 g) were placed into the bomb and sealed. The bomb was then heated under autogenous pressure for 7 d at 433 K and allowed to cool at room temperature for 24 h. Upon opening the bomb, a clear colorless solution was decanted from small colorless crystals. These crystals were washed with distilled water followed by ethanol, and allowed to air-dry at room temperature.

Refinement top

H atoms were positioned geometrically, with C—H = 0.93 and 0.97 Å, for aromatic and methylene H atoms, and constrained to ride on their parent atoms, with Uiso(H) = 1.2Ueq(C).

Computing details top

Data collection: SMART (Siemens, 1996); cell refinement: SAINT (Siemens, 1996); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 1997); program(s) used to refine structure: SHELXL97 (Sheldrick, 1997); molecular graphics: SHELXTL (Siemens, 1996); software used to prepare material for publication: SHELXTL.

Figures top
[Figure 1] Fig. 1. The molecular structure of the title molecule, with the atom-numbering scheme. Displacement ellipsoids are drawn at the 30% probability level [symmetry code (A): 2 - x, -y, 2 - z]. H atoms have been omited for clarity.
[Figure 2] Fig. 2. Packing diagram for (I). Hydrogen bonds are shown as dashed lines.

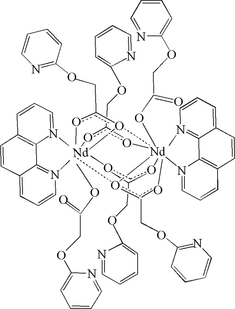

Tetrakis[µ-(2-pyridyloxy)acetato-κ2O:O']bis{(1,10-phenanthroline-\k2N,N')[(2-pyridyloxy)acetato-κO]neodymium(III)} top
Crystal data top
[Nd2(C7H6NO3)6(C12H8N2)2]F(000) = 1564
Mr = 1561.66Dx = 1.553 Mg m−3
Monoclinic, P21/nMo Kα radiation, λ = 0.71073 Å
Hall symbol: -P 2ynCell parameters from 8971 reflections
a = 20.1233 (11) Åθ = 2.6–26.0°
b = 8.3987 (12) ŵ = 1.62 mm−1
c = 20.6864 (13) ÅT = 273 K
β = 107.207 (6)°Plate, colourless
V = 3339.7 (6) Å30.33 × 0.13 × 0.08 mm
Z = 2
Data collection top
Bruker SMART CCD area-detector
diffractometer		6771 independent reflections
Radiation source: fine-focus sealed tube4723 reflections with I > 2σ(I)
Graphite monochromatorRint = 0.041
φ and ω scansθmax = 26.4°, θmin = 2.1°
Absorption correction: multi-scan
(SADABS; Sheldrick, 1996)		h = −25→24
Tmin = 0.620, Tmax = 0.880k = −10→10
25069 measured reflectionsl = −25→25
Refinement top
Refinement on F2Primary atom site location: structure-invariant direct methods
Least-squares matrix: fullSecondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.042Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.128H-atom parameters constrained
S = 0.99 w = 1/[σ2(Fo2) + (0.0839P)2]
where P = (Fo2 + 2Fc2)/3
6771 reflections(Δ/σ)max = 0.002
403 parametersΔρmax = 1.67 e Å−3
3 restraintsΔρmin = −0.67 e Å−3
Crystal data top
[Nd2(C7H6NO3)6(C12H8N2)2]V = 3339.7 (6) Å3
Mr = 1561.66Z = 2
Monoclinic, P21/nMo Kα radiation
a = 20.1233 (11) ŵ = 1.62 mm−1
b = 8.3987 (12) ÅT = 273 K
c = 20.6864 (13) Å0.33 × 0.13 × 0.08 mm
β = 107.207 (6)°
Data collection top
Bruker SMART CCD area-detector
diffractometer		6771 independent reflections
Absorption correction: multi-scan
(SADABS; Sheldrick, 1996)		4723 reflections with I > 2σ(I)
Tmin = 0.620, Tmax = 0.880Rint = 0.041
25069 measured reflectionsθmax = 26.4°
Refinement top
R[F2 > 2σ(F2)] = 0.042H-atom parameters constrained
wR(F2) = 0.128Δρmax = 1.67 e Å−3
S = 0.99Δρmin = −0.67 e Å−3
6771 reflectionsAbsolute structure: ?
403 parametersFlack parameter: ?
3 restraintsRogers parameter: ?
Special details top

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
Nd10.931198 (12)0.19065 (3)0.964296 (11)0.03913 (11)
O10.84635 (15)−0.0360 (4)0.91890 (15)0.0436 (7)
O20.94655 (17)−0.1384 (4)0.97708 (16)0.0493 (8)
O30.93994 (17)0.4208 (4)1.03403 (15)0.0473 (8)
O40.97062 (17)0.0607 (4)0.87489 (15)0.0466 (8)
O51.06707 (17)−0.0828 (4)0.92160 (15)0.0487 (8)
O61.11849 (19)−0.0172 (5)0.82196 (18)0.0659 (10)
O70.7848 (2)−0.3263 (4)0.8976 (2)0.0616 (10)
O81.00768 (19)0.6128 (4)1.09070 (16)0.0556 (9)
O90.9869 (2)0.5278 (4)1.20624 (16)0.0612 (10)
N10.7969 (2)0.2338 (5)0.9666 (2)0.0474 (10)
N20.8341 (2)0.3065 (4)0.8546 (2)0.0478 (10)
N31.1131 (4)0.1068 (9)0.7156 (3)0.113 (2)
N40.7850 (5)−0.2799 (8)1.0109 (5)0.1287 (16)
N50.9273 (3)0.3784 (9)1.2711 (3)0.0954 (18)
C10.7784 (3)0.1916 (6)1.0202 (3)0.0624 (15)
H10.81300.16951.06030.075*
C20.7091 (3)0.1788 (8)1.0193 (4)0.081 (2)
H20.69780.14791.05790.097*
C30.6580 (3)0.2123 (9)0.9608 (4)0.089 (2)
H30.61160.20420.95970.106*
C40.6741 (3)0.2567 (9)0.9048 (4)0.0740 (18)
C50.7462 (3)0.2669 (6)0.9090 (3)0.0519 (13)
C60.6226 (4)0.2959 (11)0.8403 (5)0.109 (3)
H60.57540.28660.83610.131*
C70.6423 (4)0.3443 (10)0.7882 (4)0.102 (3)
H70.60830.37280.74860.122*
C80.7131 (3)0.3546 (8)0.7900 (3)0.0695 (17)
C90.7665 (3)0.3093 (5)0.8510 (3)0.0520 (13)
C100.7361 (4)0.4039 (8)0.7369 (3)0.085 (2)
H100.70400.43950.69730.102*
C110.8034 (4)0.4016 (8)0.7411 (3)0.0791 (19)
H110.81790.43440.70450.095*
C120.8525 (3)0.3495 (7)0.8009 (3)0.0627 (15)
H120.89920.34520.80280.075*
C130.8839 (3)−0.1511 (6)0.9390 (2)0.0435 (11)
C140.8574 (3)−0.3142 (6)0.9194 (3)0.0545 (13)
H14A0.8753−0.35130.88340.065*
H14B0.8753−0.38430.95790.065*
C150.7520 (7)−0.3150 (9)0.9438 (7)0.1287 (16)
C160.6802 (6)−0.3400 (10)0.9208 (6)0.1287 (16)
H160.6594−0.36150.87520.154*
C170.6397 (6)−0.3341 (10)0.9629 (6)0.1287 (16)
H170.5923−0.35560.94790.154*
C180.6728 (6)−0.2943 (10)1.0291 (6)0.1287 (16)
H180.6457−0.28521.05830.154*
C190.7388 (6)−0.2688 (11)1.0536 (6)0.1287 (16)
H190.7572−0.24291.09910.154*
C200.9695 (3)0.4990 (6)1.0865 (2)0.0435 (11)
C210.9488 (3)0.4452 (7)1.1475 (2)0.0559 (13)
H21A0.89950.46401.13960.067*
H21B0.95720.33181.15410.067*
C220.9747 (3)0.4893 (6)1.2653 (2)0.0540 (13)
C231.0147 (3)0.5696 (8)1.3221 (3)0.0700 (16)
H231.04820.64231.31830.084*
C241.0049 (4)0.5417 (9)1.3835 (3)0.090 (2)
H241.03130.59671.42140.108*
C250.9566 (4)0.4339 (11)1.3898 (3)0.102 (3)
H250.94930.41681.43160.123*
C260.9193 (5)0.3518 (11)1.3346 (4)0.104 (3)
H260.88760.27551.33940.125*
C271.0287 (3)0.0030 (5)0.8773 (2)0.0426 (11)
C281.0524 (3)0.0515 (7)0.8172 (3)0.0551 (13)
H28B1.01850.01650.77580.066*
H28A1.05570.16660.81570.066*
C291.1461 (3)0.0138 (7)0.7707 (3)0.0615 (14)
C301.2081 (3)−0.0571 (8)0.7763 (3)0.0766 (18)
H301.2291−0.11930.81410.092*
C311.2402 (4)−0.0377 (9)0.7267 (5)0.093 (2)
H311.2827−0.08690.73080.111*
C321.2103 (5)0.0519 (9)0.6726 (5)0.104 (3)
H321.23240.06510.63940.125*
C331.1489 (5)0.1231 (11)0.6652 (4)0.108 (3)
H331.12910.18420.62680.130*
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
Nd10.04630 (17)0.03256 (17)0.03352 (16)−0.00149 (11)0.00407 (10)0.00062 (10)
O10.0453 (17)0.0325 (18)0.0453 (18)0.0007 (14)0.0014 (14)−0.0035 (14)
O20.0472 (19)0.0473 (19)0.0442 (19)−0.0032 (16)−0.0004 (15)0.0077 (15)
O30.069 (2)0.0305 (17)0.0406 (18)−0.0048 (16)0.0131 (15)−0.0036 (14)
O40.058 (2)0.0430 (19)0.0386 (17)0.0057 (17)0.0135 (15)0.0010 (15)
O50.061 (2)0.047 (2)0.0393 (18)0.0069 (17)0.0160 (15)0.0100 (15)
O60.068 (2)0.081 (3)0.055 (2)0.018 (2)0.0287 (19)0.0201 (19)
O70.059 (2)0.044 (2)0.070 (3)−0.0138 (17)−0.0001 (19)−0.0070 (17)
O80.083 (3)0.047 (2)0.0369 (18)−0.026 (2)0.0179 (17)−0.0040 (15)
O90.087 (3)0.058 (2)0.0380 (19)−0.027 (2)0.0185 (18)−0.0061 (16)
N10.048 (2)0.037 (2)0.049 (2)0.0042 (18)0.0030 (19)−0.0083 (18)
N20.062 (3)0.036 (2)0.036 (2)0.0044 (19)0.0001 (18)0.0002 (17)
N30.143 (6)0.116 (5)0.100 (5)−0.007 (5)0.069 (5)0.020 (4)
N40.154 (4)0.086 (2)0.172 (4)0.015 (3)0.088 (4)0.028 (3)
N50.098 (4)0.115 (5)0.077 (4)−0.034 (4)0.031 (3)0.001 (4)
C10.059 (3)0.071 (4)0.056 (3)0.008 (3)0.015 (3)−0.003 (3)
C20.060 (4)0.107 (6)0.083 (5)0.002 (4)0.031 (4)−0.013 (4)
C30.046 (3)0.105 (6)0.114 (7)−0.005 (3)0.021 (4)−0.017 (5)
C40.052 (3)0.081 (4)0.073 (4)0.006 (3)−0.007 (3)−0.017 (4)
C50.053 (3)0.036 (3)0.057 (3)0.008 (2)0.002 (2)−0.009 (2)
C60.064 (5)0.139 (9)0.098 (7)0.016 (5)−0.017 (4)−0.035 (6)
C70.077 (5)0.108 (6)0.084 (5)0.039 (4)−0.033 (4)−0.023 (5)
C80.074 (4)0.060 (4)0.050 (4)0.018 (3)−0.019 (3)−0.011 (3)
C90.059 (3)0.033 (3)0.046 (3)0.007 (2)−0.012 (2)−0.004 (2)
C100.116 (6)0.068 (5)0.044 (4)0.016 (4)−0.019 (4)0.000 (3)
C110.118 (6)0.072 (5)0.035 (3)0.001 (4)0.003 (3)0.011 (3)
C120.081 (4)0.048 (3)0.049 (3)−0.002 (3)0.005 (3)0.008 (2)
C130.048 (3)0.048 (3)0.031 (2)−0.005 (2)0.006 (2)−0.003 (2)
C140.062 (3)0.044 (3)0.052 (3)0.002 (2)0.009 (3)−0.008 (2)
C150.154 (4)0.086 (2)0.172 (4)0.015 (3)0.088 (4)0.028 (3)
C160.154 (4)0.086 (2)0.172 (4)0.015 (3)0.088 (4)0.028 (3)
C170.154 (4)0.086 (2)0.172 (4)0.015 (3)0.088 (4)0.028 (3)
C180.154 (4)0.086 (2)0.172 (4)0.015 (3)0.088 (4)0.028 (3)
C190.154 (4)0.086 (2)0.172 (4)0.015 (3)0.088 (4)0.028 (3)
C200.060 (3)0.032 (3)0.038 (3)−0.001 (2)0.014 (2)0.001 (2)
C210.077 (4)0.049 (3)0.043 (3)−0.020 (3)0.020 (2)−0.004 (2)
C220.072 (3)0.052 (3)0.039 (3)−0.005 (3)0.018 (2)0.003 (2)
C230.086 (4)0.071 (4)0.050 (3)−0.020 (3)0.016 (3)−0.011 (3)
C240.122 (6)0.100 (5)0.039 (3)−0.019 (5)0.011 (3)−0.011 (3)
C250.127 (6)0.138 (7)0.050 (4)−0.028 (6)0.039 (4)0.009 (4)
C260.128 (7)0.132 (7)0.066 (5)−0.054 (6)0.048 (5)−0.002 (4)
C270.055 (3)0.033 (3)0.038 (3)−0.006 (2)0.011 (2)−0.003 (2)
C280.065 (3)0.055 (3)0.047 (3)0.005 (3)0.019 (2)0.012 (2)
C290.073 (4)0.064 (4)0.056 (3)−0.008 (3)0.032 (3)0.005 (3)
C300.079 (4)0.090 (5)0.071 (4)0.001 (4)0.038 (3)0.000 (4)
C310.093 (5)0.091 (6)0.113 (6)−0.006 (4)0.060 (5)−0.008 (5)
C320.140 (7)0.081 (5)0.131 (7)−0.018 (5)0.100 (6)−0.007 (5)
C330.163 (8)0.099 (6)0.093 (6)0.010 (6)0.083 (6)0.028 (5)
Geometric parameters (Å, º) top
Nd1—O12.544 (3)C6—H60.9300
Nd1—O22.784 (4)C7—C81.418 (11)
Nd1—O2i2.439 (3)C7—H70.9300
Nd1—O32.387 (3)C8—C101.376 (10)
Nd1—O42.471 (3)C8—C91.444 (7)
Nd1—O5i2.519 (3)C10—C111.332 (9)
Nd1—O8ii2.522 (3)C10—H100.9300
Nd1—N12.742 (4)C11—C121.406 (8)
Nd1—N22.701 (4)C11—H110.9300
O1—C131.222 (6)C12—H120.9300
O2—C131.278 (6)C13—C141.482 (7)
O2—Nd1i2.439 (3)C14—H14A0.9700
O3—C201.258 (5)C14—H14B0.9700
O4—C271.252 (5)C15—C161.398 (15)
O5—C271.239 (5)C16—C171.358 (12)
O5—Nd1i2.519 (3)C16—H160.9300
O6—C291.360 (6)C17—C181.374 (15)
O6—C281.427 (6)C17—H170.9300
O7—C151.316 (11)C18—C191.292 (14)
O7—C141.399 (6)C18—H180.9300
O8—C201.213 (6)C19—H190.9300
O8—Nd1ii2.522 (3)C20—C211.509 (6)
O9—C221.354 (6)C21—H21A0.9700
O9—C211.413 (6)C21—H21B0.9700
N1—C11.318 (7)C22—C231.388 (7)
N1—C51.348 (6)C23—C241.362 (8)
N2—C121.321 (7)C23—H230.9300
N2—C91.340 (7)C24—C251.363 (10)
N3—C291.380 (9)C24—H240.9300
N3—C331.439 (9)C25—C261.355 (10)
N4—C151.382 (14)C25—H250.9300
N4—C191.462 (12)C26—H260.9300
N5—C221.365 (8)C27—C281.514 (7)
N5—C261.387 (8)C28—H28B0.9700
C1—C21.394 (8)C28—H28A0.9700
C1—H10.9300C29—C301.356 (8)
C2—C31.365 (10)C30—C311.375 (9)
C2—H20.9300C30—H300.9300
C3—C41.345 (10)C31—C321.336 (11)
C3—H30.9300C31—H310.9300
C4—C51.431 (8)C32—C331.339 (11)
C4—C61.464 (10)C32—H320.9300
C5—C91.422 (8)C33—H330.9300
C6—C71.318 (12)
O1—Nd1—O248.39 (9)C5—C9—C8118.6 (5)
O1—Nd1—O3138.63 (11)C11—C10—C8121.3 (6)
O1—Nd1—O473.88 (11)C11—C10—H10119.4
O2—Nd1—O3139.46 (10)C8—C10—H10119.4
O2—Nd1—O465.28 (10)C10—C11—C12119.9 (6)
O3—Nd1—O4145.80 (11)C10—C11—H11120.1
O1—Nd1—N163.12 (11)C12—C11—H11120.1
O2—Nd1—N1102.23 (11)N2—C12—C11121.7 (6)
O3—Nd1—N177.25 (12)N2—C12—H12119.1
O4—Nd1—N1127.42 (11)C11—C12—H12119.1
O1—Nd1—N273.72 (11)O1—C13—O2122.8 (4)
O2—Nd1—N2118.03 (10)O1—C13—C14120.1 (4)
O3—Nd1—N296.98 (11)O2—C13—C14117.1 (5)
O4—Nd1—N280.97 (11)O7—C14—C13114.4 (4)
N1—Nd1—N259.65 (13)O7—C14—H14A108.7
O3—Nd1—O2i87.83 (12)C13—C14—H14A108.7
O2i—Nd1—O478.04 (11)O7—C14—H14B108.7
O3—Nd1—O5i75.33 (10)C13—C14—H14B108.7
O2i—Nd1—O5i74.76 (11)H14A—C14—H14B107.6
O4—Nd1—O5i128.61 (11)O7—C15—N4123.3 (11)
O3—Nd1—O8ii77.52 (11)O7—C15—C16115.6 (12)
O2i—Nd1—O8ii77.72 (12)N4—C15—C16121.1 (11)
O4—Nd1—O8ii69.15 (11)C17—C16—C15122.1 (13)
O5i—Nd1—O8ii141.70 (11)C17—C16—H16118.9
O2i—Nd1—O1121.12 (12)C15—C16—H16118.9
O5i—Nd1—O184.18 (11)C16—C17—C18116.2 (12)
O8ii—Nd1—O1133.38 (10)C16—C17—H17121.9
O2i—Nd1—N2148.81 (12)C18—C17—H17121.9
O5i—Nd1—N2136.30 (12)C19—C18—C17124.8 (12)
O8ii—Nd1—N273.35 (12)C19—C18—H18117.6
O2i—Nd1—N1150.42 (12)C17—C18—H18117.6
O5i—Nd1—N176.80 (12)C18—C19—N4121.1 (12)
O8ii—Nd1—N1122.43 (13)C18—C19—H19119.5
O2i—Nd1—O272.96 (13)N4—C19—H19119.5
O5i—Nd1—O265.40 (10)O8—C20—O3126.9 (4)
O8ii—Nd1—O2129.58 (11)O8—C20—C21120.2 (4)
C13—O1—Nd1100.8 (3)O3—C20—C21112.8 (4)
C13—O2—Nd1i163.1 (3)O9—C21—C20111.0 (4)
C13—O2—Nd187.9 (3)O9—C21—H21A109.4
Nd1i—O2—Nd1107.04 (12)C20—C21—H21A109.4
C20—O3—Nd1151.1 (3)O9—C21—H21B109.4
C27—O4—Nd1130.0 (3)C20—C21—H21B109.4
C27—O5—Nd1i137.2 (3)H21A—C21—H21B108.0
C29—O6—C28117.2 (4)O9—C22—N5124.1 (5)
C15—O7—C14117.4 (7)O9—C22—C23115.7 (5)
C20—O8—Nd1ii150.1 (3)N5—C22—C23120.2 (5)
C22—O9—C21117.5 (4)C24—C23—C22119.9 (6)
C1—N1—C5118.2 (5)C24—C23—H23120.0
C1—N1—Nd1120.2 (3)C22—C23—H23120.0
C5—N1—Nd1120.2 (3)C23—C24—C25120.5 (6)
C12—N2—C9118.8 (4)C23—C24—H24119.7
C12—N2—Nd1119.4 (4)C25—C24—H24119.7
C9—N2—Nd1121.6 (3)C26—C25—C24119.3 (6)
C29—N3—C33115.5 (7)C26—C25—H25120.3
C15—N4—C19114.6 (10)C24—C25—H25120.3
C22—N5—C26118.3 (6)C25—C26—N5121.8 (7)
N1—C1—C2122.6 (6)C25—C26—H26119.1
N1—C1—H1118.7N5—C26—H26119.1
C2—C1—H1118.7O5—C27—O4128.7 (4)
C3—C2—C1119.0 (6)O5—C27—C28119.0 (4)
C3—C2—H2120.5O4—C27—C28112.3 (4)
C1—C2—H2120.5O6—C28—C27110.4 (4)
C4—C3—C2120.7 (6)O6—C28—H28B109.6
C4—C3—H3119.6C27—C28—H28B109.6
C2—C3—H3119.6O6—C28—H28A109.6
C3—C4—C5117.6 (6)C27—C28—H28A109.6
C3—C4—C6124.1 (7)H28B—C28—H28A108.1
C5—C4—C6118.3 (7)C30—C29—O6115.3 (5)
N1—C5—C9117.9 (5)C30—C29—N3121.7 (6)
N1—C5—C4121.9 (5)O6—C29—N3123.0 (5)
C9—C5—C4120.2 (5)C29—C30—C31120.5 (7)
C7—C6—C4120.7 (8)C29—C30—H30119.8
C7—C6—H6119.6C31—C30—H30119.8
C4—C6—H6119.6C32—C31—C30119.8 (7)
C6—C7—C8122.7 (7)C32—C31—H31120.1
C6—C7—H7118.6C30—C31—H31120.1
C8—C7—H7118.6C31—C32—C33121.3 (7)
C10—C8—C7124.8 (6)C31—C32—H32119.4
C10—C8—C9116.0 (6)C33—C32—H32119.4
C7—C8—C9119.3 (7)C32—C33—N3121.2 (8)
N2—C9—C5119.2 (4)C32—C33—H33119.4
N2—C9—C8122.2 (5)N3—C33—H33119.4
Symmetry codes: (i) −x+2, −y, −z+2; (ii) −x+2, −y+1, −z+2.
Hydrogen-bond geometry (Å, º) top
D—H···AD—HH···AD···AD—H···A
C10—H10···O1iii0.932.323.198 (7)157
C14—H14B···O3iv0.972.373.317 (6)164
C12—H12···O8ii0.932.463.051 (7)122
C1—H1···O5i0.932.443.120 (7)130
Symmetry codes: (i) −x+2, −y, −z+2; (ii) −x+2, −y+1, −z+2; (iii) −x+3/2, y+1/2, −z+3/2; (iv) x, y−1, z.
Selected geometric parameters (Å, º) top
Nd1—O12.544 (3)Nd1—O5i2.519 (3)
Nd1—O22.784 (4)Nd1—O8ii2.522 (3)
Nd1—O2i2.439 (3)Nd1—N12.742 (4)
Nd1—O32.387 (3)Nd1—N22.701 (4)
Nd1—O42.471 (3)
O1—Nd1—O248.39 (9)O3—Nd1—N177.25 (12)
O1—Nd1—O3138.63 (11)O4—Nd1—N1127.42 (11)
O1—Nd1—O473.88 (11)O1—Nd1—N273.72 (11)
O2—Nd1—O3139.46 (10)O2—Nd1—N2118.03 (10)
O2—Nd1—O465.28 (10)O3—Nd1—N296.98 (11)
O3—Nd1—O4145.80 (11)O4—Nd1—N280.97 (11)
O1—Nd1—N163.12 (11)N1—Nd1—N259.65 (13)
O2—Nd1—N1102.23 (11)
Symmetry codes: (i) −x+2, −y, −z+2; (ii) −x+2, −y+1, −z+2.
Hydrogen-bond geometry (Å, º) top
D—H···AD—HH···AD···AD—H···A
C10—H10···O1iii0.932.323.198 (7)157
C14—H14B···O3iv0.972.373.317 (6)164
C12—H12···O8ii0.932.463.051 (7)122
C1—H1···O5i0.932.443.120 (7)130
Symmetry codes: (i) −x+2, −y, −z+2; (ii) −x+2, −y+1, −z+2; (iii) −x+3/2, y+1/2, −z+3/2; (iv) x, y−1, z.
Acknowledgements top

The authors thank the Youth Programme of Jinggangshan University for financial support of this work.

references
References top

Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987). J. Chem. Soc. Perkin Trans. 2, pp. S1–19.

Liu, T., Wang, Z.-W., Wang, Y.-X. & Xie, Z.-P. (2007a). Acta Cryst. E63, m2020–m2021.

Liu, T., Wang, Z.-W., Wang, Y.-X. & Xie, Z.-P. (2007b). Acta Cryst. E63, m2080–m2081.

Sheldrick, G. M. (1996). SADABS. University of Göttingen, Germany.

Sheldrick, G. M. (1997). SHELXS97 and SHELXL97. University of Göttingen, Germany.

Siemens (1996). SMART, SAINT and SHELXTL. Siemens Analytical X-ray Instruments Inc., Madison, Wisconsin, USA.
