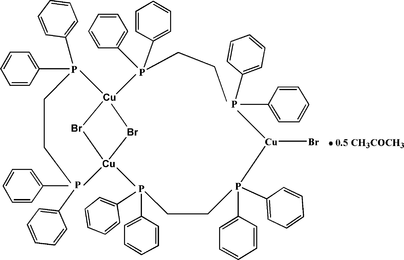

[Contents scheme]

Acta Cryst. (2008). E64, m1411 [ doi:10.1107/S1600536808032789 ]

Tris[-1,2-bis(diphenylphosphino)ethane]-1:2²P:P';1:3²P:P';2:3²P:P'-di--bromido-1:2⁴Br:Br-bromido-3Br-tricopper(I) acetone hemisolvate

W.-J. Shi

Abstract: In the crystal structure of the title compound, [Cu₃Br₃(C₂₆H₂₄P₂)₃]·0.5CH₃COCH₃, two of the Cu centers are bridged by two bromide anions forming a Cu( [mu] -Br)₂Cu core, which is further bridged by a 1,2-bis(diphenylphosphino)ethane (dppe) ligand. The third Cu center is terminally bound to another bromide ligand and is connected to the other two Cu atoms by bridging dppe ligands, forming a triangular cluster unit. The acetone solvent molecule exhibits twofold disorder about an inversion centre at ( $1\\over2$ , 1, 0). The crystal structure is stabilized by intermolecular C-HBr hydrogen bonds.

Online 15 October 2008

Tris[-1,2-bis(diphenylphosphino)ethane]-1:22P:P';1:32P:P';2:32P:P'-di--bromido-1:24Br:Br-bromido-3Br-tricopper(I) acetone hemisolvate

W.-J. Shi

Tris[-1,2-bis(diphenylphosphino)ethane]-1:2²P:P';1:3²P:P';2:3²P:P'-di--bromido-1:2⁴Br:Br-bromido-3Br-tricopper(I) acetone hemisolvate
