Acta Cryst. (2009). E65, m349-m350  [ doi:10.1107/S1600536809006722 ]

catena-Poly[[[bis[2,2'-(propane-1,3-diyldithio)bis(1,3,4-thiadiazole)-N⁴]copper(II)]-bis[-2,2'-(propane-1,3-diyldithio)bis(1,3,4-thiadiazole)-²N⁴:N^4']] bis(perchlorate)]

J.-H. Qin, J.-G. Wang and P.-Z. Hu

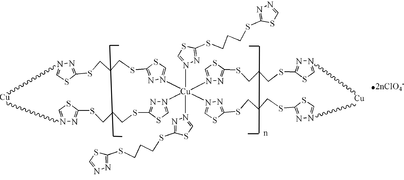

Abstract: In the title compound, {[Cu(C₇H₈N₄S₄)₄](ClO₄)₂}_n, the Cu^II atom, occupying a crystallographic inversion centre, is six-coordinated by six N atoms of three symmetry-related 2,2'-(propane-1,3-diyldithio)bis(1,3,4-thiadiazole) (L) ligands in a slightly distorted octahedral geometry. The ligand L adopts two kinds of coordination modes in the crystal structure; one is a monodentate coordination mode and serves to complete the octahedral coordination of the Cu atom and the other is an N:N'-bidentate bridging mode in a trans configuration, bridging Cu atoms via translation symmetry along the b axis into a chain structure. The perchlorate ions serve as acceptors for intermolecular C-HO hydrogen bonds, which link the chains into a three-dimensional network.

Online 28 February 2009

Copyright © International Union of Crystallography
