Acta Cryst. (2009). E65, m1470  [ doi:10.1107/S1600536809044092 ]

Bis(ethylenediamine-²N,N')bis(phenytoinato-N)cobalt(II)

X.-L. Hu, X.-Y. Xu, D.-Q. Wang and Y.-Q. Zhou

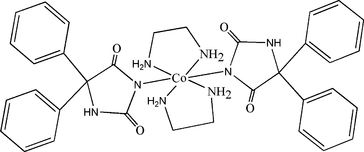

Abstract: The title compound [systematic name: bis(2,5-dioxo-4,4-diphenylimidazolidin-1-ido-N¹)bis(ethylenediamine-²N,N')cobalt(II)], [Co(C₁₅H₁₁N₂O₂)₂(C₂H₈N₂)₂], has site symmetry . The Co^II cation is located on an inversion center and coordinated by two phenytoin anions and two ethylenediamine ligands in a distorted octahedral geometry. In the phenytoin anion, the two phenyl rings are twisted with respect to the central hydantoin ring, making dihedral angles of 77.49 (16) and 64.55 (15)°. Intramolecular and intermolecular N-HO hydrogen bonding is present in the crystal structure.

Online 31 October 2009
