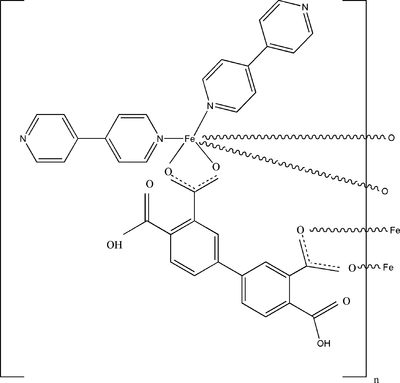

rz2381 scheme

Acta Cryst. (2009). E65, m1537-m1538    [ doi:10.1107/S1600536809046273 ]

Poly[bis(4,4'-bipyridine)([mu]3-4,4'-dicarboxybiphenyl-3,3'-dicarboxylato)iron(II)]

Q.-H. Meng, H.-L. Lai, H. Lu, Y.-F. Luo and R.-H. Zeng

Abstract top

In the polymeric title complex, [Fe(C16H8O8)(C10H8N2)2]n, the iron(II) cation is coordinated by four O atoms from three different 4,4'-dicarboxybiphenyl-3,3'-dicarboxylate ligands and two N atoms from two 4,4'-bipyridine ligands in a distorted octahedral geometry. The 4,4'-dicarboxybiphenyl-3,3'-dicarboxylate ligands bridge adjacent cations, forming chains parallel to the c axis. The chains are further connected by intermolecular O-H...N hydrogen bonds, forming two-dimensional supramolecular layers parallel to (010).

Comment top

The construction of self-assembling coordination polymers is of current interest in the fields of supramolecular chemistry and crystal engineering, because of their potential applications in gas storage, molecular sieves, ion exchange, catalysis, magnetism, nonlinearoptics, and molecular sensing (Li et al., 2008; Yaghi et al., 2003). Due to the presence of four carboxylic groups, 4,4'-dicarboxybiphenyl-3,3'-dicarboxylate ligands are promising building blocks for the construction of novel metal-organic coordination polymers (Li et al., 2009; Liu et al., 2009; Wang et al., 2007). Herein, we report the title new metal-organic framework, which was synthesized under hydrothermal conditions.

In the title complex (Fig. 1), each iron(II) atom exhibits a distorted octahedral geometry, defined by four oxygen atoms from three different 4,4'-dicarboxybiphenyl-3,3'-dicarboxylate ligands and two nitrogen atoms from two different 4,4'-bipyridine ligands. The Fe—O and Fe—N distances range from 2.0244 (1) to 2.3327 (1) Å and 2.2201 (1) to 2.2615 (1) Å, respectively, while the O—Fe—O angles and N—Fe—O angles fall in the range from 58.64 (6) to 160.43 (7) %A and 82.29 (6) to 102.91 (7) %A, respectively. The dihedral angles between the N1/C1–C5 and N2/C6–C10, N3/C11–C15 and N4/C16–C20, C22/C23/C25–c28 and C29–C32/C33/C34 are 25.74 (8), 26.91 (9) and 37.39 (7)°, respectively. Adjacent metal centres are connected by the 4,4'-dicarboxybiphenyl-3,3'-dicarboxylate ligands to form chains (Fig. 2) running parallel to the c axis. Intermolecular O—H···N hydrogen bonds (Table 1) link the chains into two-dimensional supramolecular layers parallel to (0 1 0) (Fig. 3).

Related literature top

For general background to self-assembling coordination polymers, see: Li et al. (2008); Yaghi et al. (2003). For related structures, see: Li et al. (2009); Liu et al. (2009); Wang et al. (2007).

Experimental top

A mixture of FeSO4.7H2O (0.139 g, 0.5mmol), 4,4'-bipyridine (0.078 g; 0.5 mmol), biphenyl-3,3',-4,4'-tetracarboxylic acid (0.165 g; 0.5 mmol), water (10mL) were stirred vigorously for 30 min and then sealed in a Teflon-lined stainless-steel autoclave (25 mL capacity). The autoclave was heated and maintained at 423K for 3 days, then cooled to room temperature at 5Kh-1. Red block crystals suitable for X-ray analysis were obtained.

Refinement top

Carboxy H atoms were located in a difference Fourier map and refined using a riding model approximation, with O–H = 0.82 Å and with 1.5 Ueq(O). All other H atoms were placed at calculated positions and treated as riding on parent atoms with C—H = 0.93 Å, and with Uiso(H) = 1.2 Ueq(C).

Computing details top

Data collection: APEX2 (Bruker, 2005); cell refinement: SAINT (Bruker, 2005); data reduction: SAINT (Bruker, 2005); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: SHELXTL (Sheldrick, 2008); software used to prepare material for publication: SHELXTL (Sheldrick, 2008).

Figures top
[Figure 1] Fig. 1. The molecular structure of the title compound showing the atomic-numbering scheme. Displacement ellipsoids drawn at the 30% probability level. H atoms are omitted for clarity. [Symmetry codes: (#1) x, y, 1+z; (#2) 1-x, 2-y, 1-z]
[Figure 2] Fig. 2. Partial crystal packing of the title compound showing a one-dimensional chain running parallel to the c axis. 4,4'-Bipyridine ligands are omitted for clarity.
[Figure 3] Fig. 3. Partial crystal packing of the title compound showing the two-dimensional supramolecular layers parallel to (0 1 0). Hydrogen bonds are shown as dashed lines.
Poly[bis(4,4'-bipyridine)(µ3-4,4'-dicarboxybiphenyl-3,3'- dicarboxylato)iron(II)] top
Crystal data top
[Fe(C16H8O8)(C10H8N2)2]F(000) = 1432
Mr = 696.44Dx = 1.555 Mg m−3
Monoclinic, P21/cMo Kα radiation, λ = 0.71073 Å
Hall symbol: -P 2ybcCell parameters from 4905 reflections
a = 11.9569 (13) Åθ = 2.4–27.0°
b = 24.114 (3) ŵ = 0.57 mm−1
c = 10.7232 (12) ÅT = 296 K
β = 105.855 (1)°Block, red
V = 2974.2 (6) Å30.23 × 0.21 × 0.19 mm
Z = 4
Data collection top
Bruker APEXII area-detector
diffractometer		5363 independent reflections
Radiation source: fine-focus sealed tube4293 reflections with I > 2σ(I)
graphiteRint = 0.038
φ and ω scansθmax = 25.2°, θmin = 1.7°
Absorption correction: multi-scan
(SADABS; Bruker, 2005)		h = −14→10
Tmin = 0.880, Tmax = 0.899k = −28→26
15189 measured reflectionsl = −12→12
Refinement top
Refinement on F2Primary atom site location: structure-invariant direct methods
Least-squares matrix: fullSecondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.037Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.100H-atom parameters constrained
S = 1.03 w = 1/[σ2(Fo2) + (0.0462P)2 + 1.5067P]
where P = (Fo2 + 2Fc2)/3
5363 reflections(Δ/σ)max = 0.002
444 parametersΔρmax = 0.71 e Å−3
0 restraintsΔρmin = −0.46 e Å−3
Crystal data top
[Fe(C16H8O8)(C10H8N2)2]V = 2974.2 (6) Å3
Mr = 696.44Z = 4
Monoclinic, P21/cMo Kα radiation
a = 11.9569 (13) ŵ = 0.57 mm−1
b = 24.114 (3) ÅT = 296 K
c = 10.7232 (12) Å0.23 × 0.21 × 0.19 mm
β = 105.855 (1)°
Data collection top
Bruker APEXII area-detector
diffractometer		5363 independent reflections
Absorption correction: multi-scan
(SADABS; Bruker, 2005)		4293 reflections with I > 2σ(I)
Tmin = 0.880, Tmax = 0.899Rint = 0.038
15189 measured reflectionsθmax = 25.2°
Refinement top
R[F2 > 2σ(F2)] = 0.037H-atom parameters constrained
wR(F2) = 0.100Δρmax = 0.71 e Å−3
S = 1.03Δρmin = −0.46 e Å−3
5363 reflectionsAbsolute structure: ?
444 parametersFlack parameter: ?
0 restraintsRogers parameter: ?
Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > 2sigma(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
Fe10.58299 (3)0.948957 (13)0.88381 (3)0.02617 (11)
C270.63026 (19)0.80826 (9)0.4436 (2)0.0267 (5)
C110.4184 (2)0.97360 (10)0.5952 (2)0.0331 (6)
H110.45421.00820.60640.040*
O30.88485 (15)0.84329 (7)0.88903 (16)0.0417 (4)
H30.94090.84160.95320.063*
C290.5469 (2)0.81316 (9)0.3128 (2)0.0277 (5)
N21.05946 (18)0.88387 (10)1.71537 (19)0.0416 (5)
C30.8429 (2)0.91461 (10)1.3316 (2)0.0322 (5)
O50.23281 (15)0.87426 (7)−0.06664 (16)0.0414 (4)
H50.17920.8734−0.13330.062*
C210.6846 (2)0.88567 (9)0.7580 (2)0.0279 (5)
N10.70900 (17)0.93693 (8)1.07668 (18)0.0327 (5)
N40.0513 (2)0.85951 (11)0.0994 (2)0.0510 (6)
N30.44003 (17)0.93946 (8)0.69706 (18)0.0304 (4)
C100.9865 (2)0.85667 (11)1.4936 (2)0.0382 (6)
H100.98750.83091.42930.046*
C50.7413 (2)0.88541 (11)1.1179 (2)0.0388 (6)
H5A0.71790.85641.05930.047*
C20.8088 (2)0.96780 (11)1.2899 (2)0.0435 (7)
H20.82960.99741.34710.052*
C60.9155 (2)0.90314 (11)1.4651 (2)0.0332 (5)
C10.7440 (2)0.97724 (11)1.1640 (2)0.0432 (7)
H10.72371.01361.13860.052*
C40.8068 (2)0.87257 (11)1.2414 (2)0.0383 (6)
H40.82660.83591.26420.046*
C91.0557 (2)0.84914 (12)1.6183 (2)0.0414 (6)
H91.10260.81771.63550.050*
C70.9158 (2)0.93795 (12)1.5675 (3)0.0482 (7)
H70.86750.96891.55440.058*
C80.9880 (3)0.92674 (13)1.6896 (2)0.0506 (7)
H80.98610.95061.75710.061*
C120.3463 (2)0.96087 (10)0.4744 (2)0.0338 (6)
H120.33440.98640.40690.041*
C160.2130 (2)0.89236 (11)0.3283 (2)0.0350 (6)
C140.3124 (2)0.87458 (10)0.5620 (2)0.0358 (6)
H140.27640.84010.55470.043*
C170.1517 (3)0.93092 (12)0.2401 (3)0.0519 (8)
H170.16400.96870.25590.062*
C130.2917 (2)0.90935 (10)0.4548 (2)0.0313 (5)
C150.3853 (2)0.89073 (10)0.6785 (2)0.0345 (6)
H150.39730.86640.74820.041*
C200.1939 (2)0.83734 (12)0.2949 (3)0.0484 (7)
H200.23530.81000.34950.058*
C190.1136 (3)0.82278 (13)0.1808 (3)0.0527 (8)
H190.10270.78540.16010.063*
C180.0727 (3)0.91279 (14)0.1290 (3)0.0622 (9)
H180.03180.93920.07120.075*
C260.7131 (2)0.76653 (10)0.4723 (2)0.0313 (5)
H260.71380.73930.41120.038*
C360.51638 (19)0.86533 (9)0.2589 (2)0.0269 (5)
H360.54780.89660.30660.032*
C220.70735 (19)0.84500 (9)0.66113 (19)0.0246 (5)
C250.7947 (2)0.76543 (10)0.5919 (2)0.0305 (5)
H250.85160.73800.60870.037*
C340.44068 (19)0.87230 (9)0.1366 (2)0.0250 (5)
C230.79408 (19)0.80409 (9)0.6875 (2)0.0258 (5)
C330.2957 (2)0.82910 (10)−0.0585 (2)0.0344 (6)
C280.62884 (19)0.84684 (9)0.5393 (2)0.0284 (5)
H280.57330.87490.52100.034*
C300.5005 (2)0.76689 (10)0.2393 (2)0.0394 (6)
H300.52160.73150.27170.047*
C240.8873 (2)0.80139 (10)0.8127 (2)0.0296 (5)
C320.3894 (2)0.82577 (10)0.0668 (2)0.0310 (5)
C310.4231 (2)0.77351 (10)0.1183 (2)0.0415 (7)
H310.39290.74220.07000.050*
O20.62783 (14)0.86750 (7)0.83378 (14)0.0317 (4)
O10.70685 (16)0.93579 (7)0.75185 (16)0.0382 (4)
O40.95713 (16)0.76380 (8)0.83860 (17)0.0479 (5)
O60.27834 (18)0.79341 (8)−0.14063 (18)0.0575 (6)
C350.43099 (19)0.92924 (9)0.0796 (2)0.0256 (5)
O70.45273 (14)0.93505 (7)−0.02766 (14)0.0338 (4)
O80.40781 (15)0.96848 (7)0.14606 (15)0.0355 (4)
