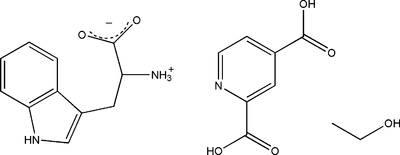

fb2190 scheme

Acta Cryst. (2010). E66, o1125-o1126    [ doi:10.1107/S1600536810014017 ]

(2S*)-2-Ammonio-3-(1H-indol-3-yl)propionate pyridine-2,4-dicarboxylic acid ethanol solvate

K. Di

Abstract top

In the title compound, C11H12N2O2·C7H5NO4·C2H6O, the (2S*)-2-amino-3-(1H-indol-3-yl)propionic acid is present in the zwitterionic form. In the crystal structure, 2-amino-3-(1H-indol-3-yl)propionic acid molecules and pyridine-2,4-dicarboxylic acid molecules are linked through strong intermolecular O-H...O and N-H...O hydrogen bonds, forming layers parallel to (100). The layers are linked through the ethanol molecules via somewhat weaker intermolecular O-H...O and N-H...O hydrogen bonds, forming thus a three-dimensional network. Weak C-H...O and N-H...N hydrogen bonding and [pi]-[pi] interactions between the aromatic rings are also present.

Comment top

Supramolecular assemblies are interesting field in the design of new and complicated materials. The compounds bearing imino, carboxylate and pyridine groups readily form supramolecular structures via intermolecular hydrogen bonds (Pourayoubi et al., 2010; Broker & Tiekink, 2010; Hemamalini & Fun, 2010; Narimani & Yamin, 2010). The present paper reports a new supramolecular structure of the title compound.

The title compound consists of (2S*)-2-amino-3-(1H-indol-3-yl)propionic acid molecule in the zwitterionic form, pyridine-2,4-dicarboxylic acid molecule and ethanol molecule (Fig. 1). In the crystal structure, (2S*)-2-amino-3-(1H-indol-3-yl)propionic acid molecules and pyridine-2,4-dicarboxylic acid molecules are linked via the strong intermolecular O—H···O and intermolecular N—H···O hydrogen bonds (Desiraju & Steiner, 1999), see Tab. 1. These molecules form layers parallel to the plane (1 0 0). The layers are further linked with ethanol molecules via weaker intermolecular O–H···O hydrogen bonds (Tab. 1) forming the three-dimensional network (Fig. 2). There is also a C–H···O weak hydrogen bond (Tab. 1). Moreover, there are also π-electron ring—π-electron ring interactions in the structure that are specified in Tab. 2 (Spek, 2009).

The difference electron density map contained some peaks in the vicinity of O5 and O6 along the direction O1-H1 and O7-H7. However, the C18-O5 (1.235 (4) Å) and C18-O6 (1.242 (4) Å) distances corresponded well to the unprotonated C-O distances in the carboxyl group. The search in the Cambridge Crystallographic Database (version 5.31 with addenda up to February 26, 2010; Allen, 2002) has revealed that the average C-O distance in the carboxyl is 1.251 (1) Å from 1269 observations, <i. e.> close to the distances C18-O5 and C18-O6.

Related literature top

For supramolecular structures with imino, carboxylate and pyridine groups interconnected via intermolecular hydrogen bonds, see: Broker & Tiekink (2010); Hemamalini & Fun (2010); Narimani & Yamin (2010); Pourayoubi et al. (2010). For a description of the Cambridge Structural Database, see: Allen (2002). For hydrogen bonding, see: Desiraju & Steiner (1999).

Experimental top

Equimolar quantities (1.0 mmol each) of (2S*)-2-amino-3-(1H-indol-3-yl)propionic acid (L-tryptophan) (204 mg) and pyridine-2,4-dicarboxylic acid (167 mg) were mixed in solution (50 ml) of ethanol and water (v:v = 1:1). The mixture was stirred at room temperature for 3 h to give a colourless solution. After keeping the solution in air for 15 d, colourless block-shaped crystals with average size of 0.3 mm × 0.2 mm × 0.2 mm developed.

Refinement top

All the H atoms have been observed in the difference electron density maps. The atoms attached to C atoms were have been constrained: Caryl-H, Cmethylene-H, Cmethyl-H = 0.93, 0.97, 0.96 Å, respectively. Uiso(Haryl)=1.2Ueq(Caryl), Uiso(Hmethylene)=1.2Ueq(Cmethylene), Uiso(Hmethyl)=1.5Ueq(Cmethyl). The hydrogens from N3 have also been constrained: Nammonium-H = 0.89 Å; Uiso(H)=1.5Ueq(N3). The hydrogens involved in the strongest hydrogen bonds (Tab. 1) have been treated differently: The positional parameters of H1 have been refined freely; those of H4 and H7 with the distance restraints 0.88 (1) and 0.85 (1) Å, respectively, H2A with the distance restraint 0.90 (1) Å. The values for these distance restraints have been retrieved from the Cambridge Crystallographic Database (version 5.31 with addenda up to February 26, 2010; Allen, 2002) on the reliably determined structures. The displacement parameters Uiso of H1, H4, H7 and H2A equaled 1.5×Ueq of the respective carrier atoms. In the absence of significant anomalous scattering effects 1628 Friedel pairs have been merged. The absolute structure has been determined from known configuration of (2S*)-2-amino-3-(1H-indol-3-yl)propionic acid (L-tryptophan) used in the preparation.

Computing details top

Data collection: SMART (Bruker, 1998); cell refinement: SAINT (Bruker, 1998); data reduction: SAINT (Bruker, 1998); program(s) used to solve structure: SHELXTL (Sheldrick, 2008); program(s) used to refine structure: SHELXTL (Sheldrick, 2008); molecular graphics: SHELXTL (Sheldrick, 2008); software used to prepare material for publication: SHELXTL (Sheldrick, 2008) and PLATON (Spek, 2009).

Figures top
[Figure 1] Fig. 1. The constituing molecules of the title structure, showing 30% probability displacement ellipsoids and the atom-numbering scheme.
[Figure 2] Fig. 2. Molecular packing of the compound, viewed along the b axis. The hydrogen bonds are shown as dashed lines.
(2S*)-2-Ammonio-3-(1H-indol-3-yl)propionate pyridine-2,4-dicarboxylic acid ethanol solvate top
Crystal data top
C11H12N2O2·C7H5NO4·C2H6OZ = 1
Mr = 417.41F(000) = 220
Triclinic, P1Dx = 1.411 Mg m−3
Hall symbol: P 1Mo Kα radiation, λ = 0.71073 Å
a = 7.0320 (14) ÅCell parameters from 1200 reflections
b = 7.7590 (16) Åθ = 2.7–24.0°
c = 9.5800 (19) ŵ = 0.11 mm−1
α = 85.44 (3)°T = 298 K
β = 81.89 (3)°Block, colourless
γ = 71.84 (3)°0.27 × 0.23 × 0.22 mm
V = 491.34 (19) Å3
Data collection top
Bruker SMART 1000 CCD
diffractometer		2092 independent reflections
Radiation source: fine-focus sealed tube1815 reflections with I > 2σ(I)
graphiteRint = 0.024
ω scansθmax = 27.0°, θmin = 2.2°
Absorption correction: multi-scan
(SADABS; Sheldrick, 1996)		h = −8→8
Tmin = 0.971, Tmax = 0.977k = −9→9
4115 measured reflectionsl = −12→12
Refinement top
Refinement on F2Primary atom site location: structure-invariant direct methods
Least-squares matrix: fullSecondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.045Hydrogen site location: difference Fourier map
wR(F2) = 0.109H atoms treated by a mixture of independent and constrained refinement
S = 1.02 w = 1/[σ2(Fo2) + (0.0628P)2]
where P = (Fo2 + 2Fc2)/3
2092 reflections(Δ/σ)max < 0.001
285 parametersΔρmax = 0.18 e Å−3
6 restraintsΔρmin = −0.21 e Å−3
78 constraints
Crystal data top
C11H12N2O2·C7H5NO4·C2H6Oγ = 71.84 (3)°
Mr = 417.41V = 491.34 (19) Å3
Triclinic, P1Z = 1
a = 7.0320 (14) ÅMo Kα radiation
b = 7.7590 (16) ŵ = 0.11 mm−1
c = 9.5800 (19) ÅT = 298 K
α = 85.44 (3)°0.27 × 0.23 × 0.22 mm
β = 81.89 (3)°
Data collection top
Bruker SMART 1000 CCD
diffractometer		2092 independent reflections
Absorption correction: multi-scan
(SADABS; Sheldrick, 1996)		1815 reflections with I > 2σ(I)
Tmin = 0.971, Tmax = 0.977Rint = 0.024
4115 measured reflectionsθmax = 27.0°
Refinement top
R[F2 > 2σ(F2)] = 0.045H atoms treated by a mixture of independent and constrained refinement
wR(F2) = 0.109Δρmax = 0.18 e Å−3
S = 1.02Δρmin = −0.21 e Å−3
2092 reflectionsAbsolute structure: ?
285 parametersFlack parameter: ?
6 restraintsRogers parameter: ?
Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > 2sigma(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
O10.2726 (4)0.7005 (3)0.5137 (3)0.0503 (7)
H10.276 (7)0.635 (7)0.439 (6)0.075*
O20.1776 (6)0.9447 (4)0.3743 (3)0.0725 (10)
O30.2236 (5)0.7586 (4)1.0219 (3)0.0560 (8)
O40.1597 (5)1.0309 (3)1.1063 (2)0.0509 (7)
H40.175 (7)0.970 (6)1.187 (3)0.076*
O50.5693 (4)0.2870 (4)1.3453 (3)0.0522 (7)
O60.2941 (4)0.5149 (4)1.3097 (3)0.0554 (8)
O70.9134 (4)0.3938 (4)0.3005 (3)0.0601 (8)
H70.831 (6)0.332 (6)0.301 (6)0.090*
N10.1492 (4)1.1892 (3)0.8482 (3)0.0316 (6)
N20.5947 (4)0.2711 (4)0.6481 (3)0.0396 (7)
H2A0.582 (7)0.304 (6)0.5569 (17)0.059*
N30.2260 (4)0.3869 (3)1.0847 (3)0.0304 (6)
H3A0.20960.50391.06290.046*
H3B0.13050.37631.15340.046*
H3C0.21740.33161.00900.046*
C10.1801 (5)1.0105 (4)0.8599 (3)0.0274 (6)
C20.2031 (5)0.9032 (4)0.7466 (3)0.0288 (7)
H20.22920.77830.75970.035*
C30.1866 (5)0.9845 (4)0.6140 (3)0.0302 (7)
C40.1478 (5)1.1699 (5)0.6004 (3)0.0362 (8)
H4A0.13291.22990.51280.043*
C50.1316 (5)1.2645 (4)0.7195 (3)0.0346 (7)
H50.10681.38950.70900.042*
C60.2122 (5)0.8722 (5)0.4871 (3)0.0400 (8)
C70.1919 (5)0.9201 (4)1.0033 (3)0.0329 (7)
C80.6594 (5)0.0930 (5)0.8419 (3)0.0311 (7)
C90.6549 (5)0.0934 (5)0.6954 (3)0.0341 (7)
C100.7065 (6)−0.0663 (5)0.6231 (4)0.0451 (9)
H100.7036−0.06420.52630.054*
C110.7617 (6)−0.2262 (5)0.6995 (5)0.0502 (10)
H110.7968−0.33490.65350.060*
C120.7666 (6)−0.2308 (6)0.8447 (5)0.0510 (10)
H120.8051−0.34200.89380.061*
C130.7152 (5)−0.0727 (5)0.9160 (4)0.0402 (8)
H130.7178−0.07671.01300.048*
C140.6009 (5)0.2784 (4)0.8802 (3)0.0314 (7)
C150.5622 (5)0.3797 (5)0.7600 (4)0.0354 (7)
H150.51940.50590.75440.043*
C160.5926 (5)0.3425 (5)1.0252 (3)0.0368 (8)
H16A0.57050.47261.01910.044*
H16B0.72230.28561.05900.044*
C170.4276 (5)0.3016 (4)1.1330 (3)0.0303 (7)
H170.45310.16991.14230.036*
C180.4303 (5)0.3726 (5)1.2774 (3)0.0349 (7)
C190.7449 (10)0.7082 (7)0.2595 (6)0.0880 (18)
H19A0.66500.66990.20220.132*
H19B0.85660.73290.20080.132*
H19C0.66350.81620.30660.132*
C200.8210 (7)0.5635 (6)0.3650 (5)0.0608 (11)
H20A0.91830.59390.41290.073*
H20B0.71010.55430.43500.073*
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
O10.0771 (19)0.0433 (16)0.0285 (13)−0.0102 (14)−0.0109 (12)−0.0145 (11)
O20.128 (3)0.066 (2)0.0212 (13)−0.0198 (19)−0.0207 (15)−0.0064 (13)
O30.105 (2)0.0348 (14)0.0324 (14)−0.0252 (15)−0.0166 (14)0.0061 (11)
O40.100 (2)0.0418 (15)0.0188 (11)−0.0313 (15)−0.0099 (13)0.0001 (10)
O50.0589 (17)0.0725 (19)0.0293 (13)−0.0211 (14)−0.0158 (12)−0.0036 (13)
O60.0627 (18)0.0611 (18)0.0423 (16)−0.0106 (14)−0.0094 (13)−0.0298 (13)
O70.0569 (18)0.0624 (19)0.0623 (19)−0.0243 (14)0.0092 (15)−0.0139 (15)
N10.0417 (15)0.0273 (14)0.0255 (13)−0.0086 (11)−0.0053 (11)−0.0044 (11)
N20.0477 (17)0.0486 (18)0.0227 (14)−0.0155 (14)−0.0048 (12)0.0021 (13)
N30.0396 (15)0.0306 (14)0.0244 (13)−0.0147 (12)−0.0020 (10)−0.0080 (10)
C10.0315 (15)0.0293 (15)0.0226 (14)−0.0100 (12)−0.0040 (11)−0.0028 (12)
C20.0369 (16)0.0255 (15)0.0235 (15)−0.0069 (13)−0.0046 (12)−0.0063 (12)
C30.0294 (16)0.0399 (18)0.0219 (14)−0.0090 (14)−0.0053 (12)−0.0062 (13)
C40.047 (2)0.0393 (19)0.0226 (16)−0.0142 (16)−0.0075 (14)0.0034 (14)
C50.0436 (18)0.0273 (16)0.0329 (17)−0.0100 (14)−0.0083 (14)0.0030 (13)
C60.050 (2)0.046 (2)0.0230 (18)−0.0117 (17)−0.0045 (15)−0.0066 (15)
C70.0490 (19)0.0331 (19)0.0219 (15)−0.0177 (15)−0.0084 (13)−0.0028 (13)
C80.0297 (16)0.0371 (17)0.0276 (15)−0.0126 (13)0.0003 (12)−0.0050 (13)
C90.0324 (17)0.0437 (19)0.0283 (16)−0.0144 (15)−0.0017 (13)−0.0053 (15)
C100.051 (2)0.056 (2)0.0306 (18)−0.0194 (18)0.0049 (15)−0.0206 (17)
C110.046 (2)0.044 (2)0.061 (3)−0.0128 (18)0.0051 (19)−0.022 (2)
C120.051 (2)0.038 (2)0.059 (3)−0.0112 (17)0.0027 (19)−0.0013 (18)
C130.043 (2)0.040 (2)0.0339 (18)−0.0092 (16)−0.0002 (14)0.0002 (16)
C140.0327 (17)0.0356 (17)0.0255 (15)−0.0096 (14)0.0001 (12)−0.0075 (13)
C150.0391 (18)0.0355 (18)0.0319 (17)−0.0134 (15)0.0004 (14)−0.0025 (14)
C160.0455 (19)0.0410 (19)0.0288 (17)−0.0209 (15)0.0004 (14)−0.0071 (14)
C170.0397 (17)0.0310 (16)0.0241 (15)−0.0147 (13)−0.0050 (12)−0.0051 (12)
C180.0426 (19)0.046 (2)0.0233 (15)−0.0229 (16)−0.0025 (13)−0.0059 (14)
C190.122 (5)0.070 (4)0.056 (3)−0.013 (3)−0.001 (3)0.002 (3)
C200.061 (3)0.074 (3)0.046 (2)−0.023 (2)0.0042 (19)−0.013 (2)
Geometric parameters (Å, °) top
O1—C61.282 (5)C5—H50.9300
O1—H10.90 (5)C8—C131.390 (5)
O2—C61.199 (4)C8—C91.408 (5)
O3—C71.205 (4)C8—C141.430 (5)
O4—C71.310 (4)C9—C101.389 (5)
O4—H40.875 (11)C10—C111.364 (6)
O5—C181.235 (4)C10—H100.9300
O6—C181.242 (4)C11—C121.393 (6)
O7—C201.422 (5)C11—H110.9300
O7—H70.855 (11)C12—C131.374 (5)
N1—C51.326 (4)C12—H120.9300
N1—C11.333 (4)C13—H130.9300
N2—C151.367 (4)C14—C151.352 (5)
N2—C91.370 (5)C14—C161.500 (4)
N2—H2A0.899 (11)C15—H150.9300
N3—C171.488 (4)C16—C171.534 (4)
N3—H3A0.8900C16—H16A0.9700
N3—H3B0.8900C16—H16B0.9700
N3—H3C0.8900C17—C181.534 (4)
C1—C21.381 (4)C17—H170.9800
C1—C71.493 (4)C19—C201.472 (7)
C2—C31.376 (4)C19—H19A0.9600
C2—H20.9300C19—H19B0.9600
C3—C41.377 (5)C19—H19C0.9600
C3—C61.509 (4)C20—H20A0.9700
C4—C51.378 (5)C20—H20B0.9700
C4—H4A0.9300
C6—O1—H1113 (3)C10—C11—C12121.7 (4)
C7—O4—H4110 (3)C10—C11—H11119.2
C20—O7—H7112 (4)C12—C11—H11119.2
C5—N1—C1116.2 (3)C13—C12—C11120.7 (4)
C15—N2—C9108.7 (3)C13—C12—H12119.6
C15—N2—H2A128 (3)C11—C12—H12119.6
C9—N2—H2A123 (3)C12—C13—C8119.4 (3)
C17—N3—H3A109.5C12—C13—H13120.3
C17—N3—H3B109.5C8—C13—H13120.3
H3A—N3—H3B109.5C15—C14—C8106.3 (3)
C17—N3—H3C109.5C15—C14—C16128.1 (3)
H3A—N3—H3C109.5C8—C14—C16125.6 (3)
H3B—N3—H3C109.5C14—C15—N2110.7 (3)
N1—C1—C2123.8 (3)C14—C15—H15124.7
N1—C1—C7118.4 (3)N2—C15—H15124.7
C2—C1—C7117.8 (3)C14—C16—C17114.1 (3)
C3—C2—C1118.8 (3)C14—C16—H16A108.7
C3—C2—H2120.6C17—C16—H16A108.7
C1—C2—H2120.6C14—C16—H16B108.7
C2—C3—C4118.3 (3)C17—C16—H16B108.7
C2—C3—C6120.5 (3)H16A—C16—H16B107.6
C4—C3—C6121.2 (3)N3—C17—C18109.6 (3)
C3—C4—C5118.5 (3)N3—C17—C16110.3 (3)
C3—C4—H4A120.7C18—C17—C16110.3 (3)
C5—C4—H4A120.7N3—C17—H17108.8
N1—C5—C4124.3 (3)C18—C17—H17108.8
N1—C5—H5117.8C16—C17—H17108.8
C4—C5—H5117.8O5—C18—O6127.7 (3)
O2—C6—O1125.9 (3)O5—C18—C17117.1 (3)
O2—C6—C3120.3 (3)O6—C18—C17115.1 (3)
O1—C6—C3113.8 (3)C20—C19—H19A109.5
O3—C7—O4123.2 (3)C20—C19—H19B109.5
O3—C7—C1122.3 (3)H19A—C19—H19B109.5
O4—C7—C1114.5 (3)C20—C19—H19C109.5
C13—C8—C9118.6 (3)H19A—C19—H19C109.5
C13—C8—C14134.3 (3)H19B—C19—H19C109.5
C9—C8—C14107.1 (3)O7—C20—C19111.0 (4)
N2—C9—C10130.7 (3)O7—C20—H20A109.4
N2—C9—C8107.2 (3)C19—C20—H20A109.4
C10—C9—C8122.1 (3)O7—C20—H20B109.4
C11—C10—C9117.6 (3)C19—C20—H20B109.4
C11—C10—H10121.2H20A—C20—H20B108.0
C9—C10—H10121.2
Hydrogen-bond geometry (Å, °) top
D—H···AD—HH···AD···AD—H···A
N3—H3C···N1i0.892.153.032 (4)170
N3—H3B···O7ii0.891.902.787 (4)171
N3—H3A···O30.892.012.894 (4)170
N2—H2A···O5iii0.90 (1)2.06 (2)2.922 (4)161 (4)
O7—H7···O5iii0.86 (1)1.96 (3)2.762 (4)155 (5)
O1—H1···O6iii0.90 (5)1.58 (6)2.479 (3)177 (5)
O4—H4···O2iv0.88 (1)1.79 (2)2.611 (3)155 (5)
C20—H20A···O6v0.972.593.200 (6)122
Symmetry codes: (i) x, y−1, z; (ii) x−1, y, z+1; (iii) x, y, z−1; (iv) x, y, z+1; (v) x+1, y, z−1.
Table 1
Hydrogen-bond geometry (Å, °) top
D—H···AD—HH···AD···AD—H···A
N3—H3C···N1i0.892.153.032 (4)170
N3—H3B···O7ii0.891.902.787 (4)171
N3—H3A···O30.892.012.894 (4)170
N2—H2A···O5iii0.90 (1)2.06 (2)2.922 (4)161 (4)
O7—H7···O5iii0.86 (1)1.96 (3)2.762 (4)155 (5)
O1—H1···O6iii0.90 (5)1.58 (6)2.479 (3)177 (5)
O4—H4···O2iv0.88 (1)1.79 (2)2.611 (3)155 (5)
C20—H20A···O6v0.972.593.200 (6)122
Symmetry codes: (i) x, y−1, z; (ii) x−1, y, z+1; (iii) x, y, z−1; (iv) x, y, z+1; (v) x+1, y, z−1.
Table 2
Overview of π-electron—π-electron ring interactions (Å) in the structure top
Cg1, Cg2 and Cg3 are the centroids of the N2,C9,C8,C14,C15 (pyrrole), C8–C13 (benzene) and N1,C1–C5 (pyridine), respectively.
Cg···CgdistanceCg···Cgdistance
Cg1···Cg3i3.665 (2)Cg2···Cg3i3.722 (2)
Cg1···Cg3ii3.683 (2)Cg2···Cg3ii3.701 (2)
Symmetry codes: (i) 1+x, -1+y, z; (ii) x, -1+y, z.
references
References top

Allen, F. H. (2002). Acta Cryst. B58, 380–388.

Broker, G. A. & Tiekink, E. R. T. (2010). Acta Cryst. E66, o705.

Bruker (1998). SAINT and SMART. Bruker AXS Inc., Madison, Wisconsin, USA.

Desiraju, G. R. & Steiner, T. (1999). The Weak Hydrogen Bond in Structural Chemistry and Biology, IUCr Monographs on Crystallography, Vol. 9, p. 13. Oxford University Press.

Hemamalini, M. & Fun, H.-K. (2010). Acta Cryst. E66, o689–o690.

Narimani, L. & Yamin, B. M. (2010). Acta Cryst. E66, o669.

Pourayoubi, M., Toghraee, M., Rheingold, A. L. & Golen, J. A. (2010). Acta Cryst. E66, o844.

Sheldrick, G. M. (1996). SADABS. University of Göttingen, Germany.

Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122.

Spek, A. L. (2009). Acta Cryst. D65, 148–155.
