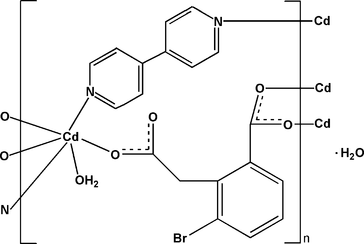

[Contents scheme]

Acta Cryst. (2012). E68, m1071
[ doi:10.1107/S1600536812031297 ]

Poly[[aqua(₂-4,4'-bipyridine-²N:N')[₃-3-bromo-2-(carboxylatomethyl)benzoato-³O¹:O^1':O²]cadmium] monohydrate]

Y. Liu, K. Cao and F. Wang

Abstract: In the title compound, {[Cd(C₉H₅BrO₄)(C₁₀H₈N₂)(H₂O)]·H₂O}_n, the Cd^II atom has a distorted octahedral coordination geometry. Two N atoms from two 4,4'-bipyridine (bipy) ligands occupy the axial positions, while the equatorial positions are furnished by three carboxylate O atoms from three 3-bromo-2-(carboxylatomethyl)benzoate (bcb) ligands and one O atom from a water molecule. The bipy and bcb ligands link the Cd^II atoms into a three-dimensional network. O-HO hydrogen bonds and [pi] - [pi] interactions between the pyridine and benzene rings [centroid-centroid distance = 3.736 (4) Å] are present in the crystal.

Poly[[aqua(2-4,4'-bipyridine-2N:N')[3-3-bromo-2-(carboxylatomethyl)benzoato-3O1:O1':O2]cadmium] monohydrate]

Y. Liu, K. Cao and F. Wang

Poly[[aqua(₂-4,4'-bipyridine-²N:N')[₃-3-bromo-2-(carboxylatomethyl)benzoato-³O¹:O^1':O²]cadmium] monohydrate]
