Acta Cryst. (2012). E68, m1547    [ doi:10.1107/S1600536812045898 ]

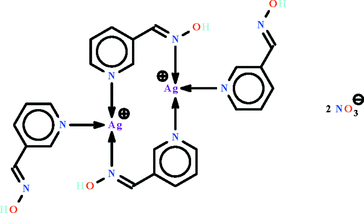

Bis[[mu]-(E)-N-(pyridin-3-ylmethylidene)hydroxyamine]-[kappa]2N1:N3;[kappa]2N3:N1-bis{[(E)-N-(pyridin-3-ylmethylidene-[kappa]N)hydroxyamine]silver(I)} dinitrate

S. Gao and S. W. Ng

Abstract top

In the centrosymmetric dinuclear title AgI compound, [Ag2(C6H6N2O)4](NO3)2, the aromatic amine-coordinated AgI atom is further bridged by two hydroxylamine molecules that use aromatic and oxime N atoms for bridging, and it exists in a distorted trigonal-planar geometry. In the crystal, the nitrate anions link to the dinuclear compound molecules via O-H...O hydrogen bonds, generating a chain running along the a-axis direction.

Comment top

A previous study on the adducts of silver salts with nicotinylaldehyde oxime reported the salt, [Ag(C6H6N2O)2] ClO4; the metal atom shows linear coordination (Xu et al., 2012). The aromatic amine-coordinated AgI atom in dinuclear [Ag(C6H6N2O)2]2 2NO3 is bridged by another hydroxylamine molecule that uses its aromatic and oxime N atoms for bridging, and it exists in a trigonal planar geometry (Scheme I, Fig. 1). The hydroxyl OH groups forms H atoms to the nitrate O atoms of adjacent molecules to generate a chain running along the shortest axis of the orthorhombic unit cell (Table 1).

With picolinylaldehyde oxime in place of nicotinylaldehyde oxime, the synthesis yields the monomeric adduct in which the metal atom is chelated by the ligand (Abu-Youssef et al., 2010).

Related literature top

For bis(nicotinylaldehyde oxime)silver perchlorate, see: Xu et al. (2012) and for (nitrato)(picolinaldehyde oxime)silver, see: Abu-Youssef et al. (2010).

Experimental top

Nicotinyladehyde oxime was synthesized from the reaction of nicotinylaldehyde and hydroxylamine. Silver nitrate (1 mmol) dissolved in water (5 ml) was added to nicotinylaldehyde oxime (1 mmol) dissolved in ethanol (5 ml). The solution was filtered and set aside, away from light, for the growth of colorless crystals.

Refinement top

Carbon- and oxygen-bound H-atoms were placed in calculated positions (C–H 0.93 Å, O–H 0.84 Å) and were included in the refinement in the riding model approximation, with U(H) set to 1.2–1.5U(C,O).

The (-1 3 3), (5 - 10 1), (6 - 9 5) and (0 9 1) reflections were omitted.

The final difference Fourier map had a peak at 0.88 Å from Ag1.

Computing details top

Data collection: RAPID-AUTO (Rigaku, 1998); cell refinement: RAPID-AUTO (Rigaku, 1998); data reduction: CrystalClear (Rigaku/MSC, 2002); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: X-SEED (Barbour, 2001); software used to prepare material for publication: publCIF (Westrip, 2010).

Figures top
[Figure 1] Fig. 1. Thermal ellipsoid plot (Barbour, 2001) of [Ag(C6H6N2O)2]2 2NO3 at the 50% probability level; hydrogen atoms are drawn as spheres of arbitrary radius.
Bis[µ-(E)-N-(pyridin-3-ylmethylidene)hydroxyamine]- κ2N1:N3;κ2N3:N1-bis{[(E)- N-(pyridin-3-ylmethylidene-κN)hydroxyamine]silver(I)} dinitrate top
Crystal data top
[Ag2(C6H6N2O)4](NO3)2Z = 1
Mr = 828.27F(000) = 412
Triclinic, P1Dx = 1.863 Mg m−3
Hall symbol: -P 1Mo Kα radiation, λ = 0.71073 Å
a = 7.2913 (10) ÅCell parameters from 6130 reflections
b = 8.3395 (10) Åθ = 3.0–27.4°
c = 13.1415 (17) ŵ = 1.40 mm−1
α = 92.934 (4)°T = 293 K
β = 95.008 (4)°Prism, colorless
γ = 111.360 (3)°0.24 × 0.21 × 0.17 mm
V = 738.38 (16) Å3
Data collection top
Rigaku R-AXIS RAPID IP
diffractometer		3341 independent reflections
Radiation source: fine-focus sealed tube2896 reflections with I > 2σ(I)
Graphite monochromatorRint = 0.035
ω scanθmax = 27.4°, θmin = 3.0°
Absorption correction: multi-scan
(ABSCOR; Higashi, 1995)		h = −9→9
Tmin = 0.730, Tmax = 0.797k = −10→10
7293 measured reflectionsl = −17→16
Refinement top
Refinement on F2Primary atom site location: structure-invariant direct methods
Least-squares matrix: fullSecondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.040Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.107H-atom parameters constrained
S = 1.11 w = 1/[σ2(Fo2) + (0.056P)2 + 0.3361P]
where P = (Fo2 + 2Fc2)/3
3341 reflections(Δ/σ)max = 0.001
210 parametersΔρmax = 1.71 e Å−3
0 restraintsΔρmin = −0.34 e Å−3
Crystal data top
[Ag2(C6H6N2O)4](NO3)2γ = 111.360 (3)°
Mr = 828.27V = 738.38 (16) Å3
Triclinic, P1Z = 1
a = 7.2913 (10) ÅMo Kα radiation
b = 8.3395 (10) ŵ = 1.40 mm−1
c = 13.1415 (17) ÅT = 293 K
α = 92.934 (4)°0.24 × 0.21 × 0.17 mm
β = 95.008 (4)°
Data collection top
Rigaku R-AXIS RAPID IP
diffractometer		3341 independent reflections
Absorption correction: multi-scan
(ABSCOR; Higashi, 1995)		2896 reflections with I > 2σ(I)
Tmin = 0.730, Tmax = 0.797Rint = 0.035
7293 measured reflectionsθmax = 27.4°
Refinement top
R[F2 > 2σ(F2)] = 0.040H-atom parameters constrained
wR(F2) = 0.107Δρmax = 1.71 e Å−3
S = 1.11Δρmin = −0.34 e Å−3
3341 reflectionsAbsolute structure: ?
210 parametersFlack parameter: ?
0 restraintsRogers parameter: ?
Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
Ag10.38614 (4)0.61092 (3)0.314850 (18)0.04700 (13)
O11.0366 (4)0.7195 (3)0.7651 (2)0.0501 (6)
H11.07580.63780.75410.075*
O20.9485 (4)1.1845 (3)−0.0856 (2)0.0522 (6)
H20.94511.2272−0.14190.078*
O30.7359 (7)0.5156 (5)0.3151 (4)0.1102 (16)
O41.0106 (5)0.6444 (5)0.2602 (3)0.0751 (10)
O50.8581 (6)0.7867 (4)0.3354 (3)0.0792 (10)
N10.4261 (4)0.7161 (4)0.4767 (2)0.0393 (6)
N20.8633 (4)0.6911 (4)0.7003 (2)0.0426 (6)
N30.4227 (4)0.6552 (4)0.1507 (2)0.0393 (6)
N40.7795 (4)1.0353 (4)−0.0856 (2)0.0411 (6)
N50.8690 (4)0.6504 (4)0.3059 (2)0.0436 (7)
C10.2918 (5)0.5528 (4)0.0748 (3)0.0420 (7)
H1A0.18750.45740.09150.050*
C20.3047 (5)0.5827 (4)−0.0277 (3)0.0438 (7)
H2A0.21040.5087−0.07830.053*
C30.4576 (5)0.7221 (4)−0.0537 (3)0.0410 (7)
H30.46890.7437−0.12200.049*
C40.5962 (5)0.8315 (4)0.0240 (2)0.0354 (6)
C50.5728 (5)0.7911 (4)0.1242 (2)0.0366 (6)
H50.66630.86210.17620.044*
C60.7622 (5)0.9865 (4)0.0046 (3)0.0375 (7)
H60.85591.04990.05860.045*
C70.3097 (5)0.7957 (4)0.5116 (3)0.0430 (7)
H70.19440.78530.47080.052*
C80.3541 (5)0.8913 (4)0.6046 (3)0.0429 (7)
H80.27210.94670.62560.051*
C90.5228 (5)0.9041 (4)0.6669 (3)0.0407 (7)
H90.55700.97040.72960.049*
C100.6402 (5)0.8177 (4)0.6350 (2)0.0361 (6)
C110.5871 (5)0.7270 (4)0.5384 (2)0.0369 (6)
H110.66750.67130.51560.044*
C120.8170 (5)0.8228 (4)0.6996 (2)0.0396 (7)
H120.89520.92340.74010.048*
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
Ag10.05390 (19)0.0543 (2)0.03057 (17)0.01848 (14)0.00080 (12)0.00222 (11)
O10.0459 (13)0.0570 (15)0.0475 (15)0.0220 (12)−0.0050 (11)0.0026 (11)
O20.0459 (13)0.0490 (14)0.0565 (16)0.0103 (11)0.0045 (12)0.0153 (12)
O30.101 (3)0.062 (2)0.155 (5)0.007 (2)0.035 (3)0.043 (3)
O40.0682 (19)0.124 (3)0.062 (2)0.064 (2)0.0219 (16)0.034 (2)
O50.100 (3)0.0675 (19)0.079 (2)0.0441 (19)0.009 (2)−0.0041 (16)
N10.0458 (14)0.0412 (14)0.0277 (13)0.0131 (12)0.0010 (11)0.0040 (10)
N20.0430 (14)0.0408 (14)0.0401 (15)0.0129 (12)−0.0037 (12)0.0043 (11)
N30.0400 (14)0.0462 (15)0.0333 (14)0.0179 (12)0.0039 (11)0.0034 (11)
N40.0401 (14)0.0401 (14)0.0439 (16)0.0154 (12)0.0063 (12)0.0039 (12)
N50.0483 (16)0.0521 (17)0.0383 (15)0.0257 (15)0.0081 (13)0.0138 (13)
C10.0393 (16)0.0407 (17)0.0425 (18)0.0106 (14)0.0054 (14)0.0021 (13)
C20.0442 (17)0.0446 (17)0.0386 (18)0.0150 (15)−0.0037 (14)−0.0056 (14)
C30.0471 (18)0.0475 (18)0.0297 (15)0.0197 (15)0.0012 (14)0.0024 (13)
C40.0349 (14)0.0415 (16)0.0328 (15)0.0178 (13)0.0035 (12)0.0027 (12)
C50.0352 (15)0.0437 (16)0.0310 (15)0.0163 (13)−0.0002 (12)−0.0023 (12)
C60.0367 (15)0.0424 (16)0.0373 (17)0.0203 (14)0.0013 (13)0.0012 (13)
C70.0394 (16)0.0468 (17)0.0443 (19)0.0166 (15)0.0061 (14)0.0098 (14)
C80.0470 (17)0.0457 (18)0.0413 (18)0.0210 (15)0.0138 (15)0.0082 (14)
C90.0530 (19)0.0390 (16)0.0322 (16)0.0188 (15)0.0093 (14)0.0022 (12)
C100.0424 (16)0.0309 (14)0.0319 (15)0.0097 (13)0.0039 (13)0.0057 (11)
C110.0439 (16)0.0315 (14)0.0356 (16)0.0141 (13)0.0066 (13)0.0021 (12)
C120.0455 (17)0.0385 (16)0.0315 (16)0.0129 (14)0.0015 (13)−0.0022 (12)
Geometric parameters (Å, º) top
Ag1—N12.212 (3)C2—C31.369 (5)
Ag1—N32.229 (3)C2—H2A0.9300
Ag1—N2i2.498 (3)C3—C41.396 (5)
O1—N21.397 (4)C3—H30.9300
O1—H10.8400C4—C51.385 (4)
O2—N41.396 (4)C4—C61.466 (5)
O2—H20.8400C5—H50.9300
O3—N51.208 (5)C6—H60.9300
O4—N51.255 (4)C7—C81.370 (5)
O5—N51.214 (4)C7—H70.9300
N1—C111.339 (4)C8—C91.383 (5)
N1—C71.349 (5)C8—H80.9300
N2—C121.262 (4)C9—C101.381 (5)
N2—Ag1i2.498 (3)C9—H90.9300
N3—C11.337 (5)C10—C111.392 (4)
N3—C51.344 (4)C10—C121.466 (5)
N4—C61.274 (4)C11—H110.9300
C1—C21.387 (5)C12—H120.9300
C1—H1A0.9300
N1—Ag1—N3149.49 (11)C5—C4—C3117.7 (3)
N1—Ag1—N2i107.79 (10)C5—C4—C6119.0 (3)
N3—Ag1—N2i101.48 (10)C3—C4—C6123.3 (3)
N2—O1—H1109.5N3—C5—C4123.8 (3)
N4—O2—H2109.5N3—C5—H5118.1
C11—N1—C7117.6 (3)C4—C5—H5118.1
C11—N1—Ag1119.9 (2)N4—C6—C4120.7 (3)
C7—N1—Ag1121.6 (2)N4—C6—H6119.6
C12—N2—O1112.4 (3)C4—C6—H6119.6
C12—N2—Ag1i123.3 (2)N1—C7—C8122.8 (3)
O1—N2—Ag1i115.10 (18)N1—C7—H7118.6
C1—N3—C5117.2 (3)C8—C7—H7118.6
C1—N3—Ag1121.6 (2)C7—C8—C9119.0 (3)
C5—N3—Ag1121.1 (2)C7—C8—H8120.5
C6—N4—O2110.6 (3)C9—C8—H8120.5
O3—N5—O5120.1 (4)C10—C9—C8119.5 (3)
O3—N5—O4117.9 (4)C10—C9—H9120.3
O5—N5—O4121.9 (4)C8—C9—H9120.3
N3—C1—C2122.8 (3)C9—C10—C11117.8 (3)
N3—C1—H1A118.6C9—C10—C12121.5 (3)
C2—C1—H1A118.6C11—C10—C12120.6 (3)
C3—C2—C1119.4 (3)N1—C11—C10123.3 (3)
C3—C2—H2A120.3N1—C11—H11118.4
C1—C2—H2A120.3C10—C11—H11118.4
C2—C3—C4119.0 (3)N2—C12—C10120.1 (3)
C2—C3—H3120.5N2—C12—H12119.9
C4—C3—H3120.5C10—C12—H12119.9
N3—Ag1—N1—C11−93.9 (3)O2—N4—C6—C4−179.6 (3)
N2i—Ag1—N1—C11103.1 (2)C5—C4—C6—N4−174.4 (3)
N3—Ag1—N1—C775.2 (3)C3—C4—C6—N44.9 (5)
N2i—Ag1—N1—C7−87.8 (3)C11—N1—C7—C82.6 (5)
N1—Ag1—N3—C1−147.5 (3)Ag1—N1—C7—C8−166.8 (2)
N2i—Ag1—N3—C116.0 (3)N1—C7—C8—C9−1.5 (5)
N1—Ag1—N3—C529.4 (4)C7—C8—C9—C10−1.4 (5)
N2i—Ag1—N3—C5−167.1 (2)C8—C9—C10—C112.9 (4)
C5—N3—C1—C2−0.6 (5)C8—C9—C10—C12−178.1 (3)
Ag1—N3—C1—C2176.4 (3)C7—N1—C11—C10−0.9 (5)
N3—C1—C2—C30.2 (5)Ag1—N1—C11—C10168.7 (2)
C1—C2—C3—C4−0.4 (5)C9—C10—C11—N1−1.8 (5)
C2—C3—C4—C50.9 (5)C12—C10—C11—N1179.2 (3)
C2—C3—C4—C6−178.4 (3)O1—N2—C12—C10179.4 (3)
C1—N3—C5—C41.2 (5)Ag1i—N2—C12—C10−35.6 (4)
Ag1—N3—C5—C4−175.8 (2)C9—C10—C12—N2144.0 (3)
C3—C4—C5—N3−1.4 (5)C11—C10—C12—N2−37.1 (5)
C6—C4—C5—N3178.0 (3)
Symmetry code: (i) −x+1, −y+1, −z+1.
Hydrogen-bond geometry (Å, º) top
D—H···AD—HH···AD···AD—H···A
O1—H1···O3ii0.842.393.189 (6)158
O1—H1···O4ii0.842.202.925 (5)145
O2—H2···O4iii0.841.922.745 (4)169
Symmetry codes: (ii) −x+2, −y+1, −z+1; (iii) −x+2, −y+2, −z.
Hydrogen-bond geometry (Å, º) top
D—H···AD—HH···AD···AD—H···A
O1—H1···O3i0.842.393.189 (6)158.3
O1—H1···O4i0.842.202.925 (5)145.0
O2—H2···O4ii0.841.922.745 (4)168.6
Symmetry codes: (i) −x+2, −y+1, −z+1; (ii) −x+2, −y+2, −z.
Acknowledgements top

We thank the Key Project of the Natural Science Foundation of Heilongjiang Province (No. ZD200903), the Key Project of the Education Bureau of Heilongjiang Province (Nos. 12511z023 and 2011CJHB006), the Innovation team of the Education Bureau of Heilongjiang Province (No. 2010 t d03), Heilongjiang University (Hdtd2010–04) and the Ministry of Higher Education of Malaysia (grant No. UM.C/HIR/MOHE/SC/12) for supporting this study.

references
References top

Abu-Youssef, M. A., Soliman, S. V., Langer, V., Gohar, Y. M., Hasanen, A. A., Makhyoun, M. A., Zaky, A. H. & Öhrström, L. R. (2010). Inorg. Chem. 49, 9788–9797.

Barbour, L. J. (2001). J. Supramol. Chem. 1, 189–191.

Higashi, T. (1995). ABSCOR. Rigaku Corporation, Tokyo, Japan.

Rigaku (1998). RAPID-AUTO. Rigaku Corporation, Tokyo, Japan.

Rigaku/MSC (2002). CrystalClear. Rigaku/MSC Inc., The Woodlands, Texas, USA.

Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122.

Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925.

Xu, J., Gao, S., Ng, S. W. & Tiekink, E. R. T. (2012). Acta Cryst. E68, m735–m736.
