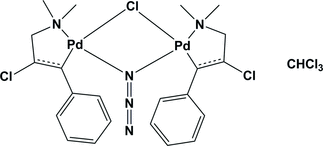

su2528 scheme

Acta Cryst. (2013). E69, m15    [ doi:10.1107/S1600536812047927 ]

[mu]-Azido-[kappa]2N1:N1-[mu]-chlorido-bis[(2-chloro-3-dimethylamino-1-phenylprop-1-en-1-yl-[kappa]2C1,N)palladium(II)] chloroform monosolvate

A. C. Mafud, M. A. R. Oliviera and M. T. P. Gambardella

Abstract top

In the binuclear title complex, [Pd2(C11H13ClN)2Cl(N3)]·CHCl3, each PdII atom has a slightly distorted square-planar geometry being coordinated by a C and an N atom of the 2-chloro-3-dimethylamino-1-phenylpropyl ligand, a bridging Cl atom and an N atom of a bridging end-on azide group. There is a short intramolecular C-H...Cl contact in the complex molecule. In the crystal, the chloroform solvent molecule is linked to the complex via a C-H...[pi] interaction.

Comment top

In the title compound, Fig. 1, the palladium atoms have distorted square planar geometry. Each palladium atom is connected to two N atoms. One is an N atom of the end-on bridging azide group [Pd1—N1 2.060 (7) and Pd2—N1 2.054 (8) Å] and the other one is the ligand amine group [Pd1—N4 2.064 (7) and Pd2—N5 2.086 (7) Å]. They are also connected to a C atom [Pd1—C7a 1.979 (9) and Pd2—C7b 1.988 (9) Å] and a bridging Cl atom [Pd1—Cl1 2.454 (3) and Pd2—Cl1 2.457 (3) Å]. These distances and angles are close to those reported for similar compounds (Moro et al., 2004; Caires et al., 2006). There is a short intramolecular C-H···Cl interaction (Table 1) in the complex. In the solid state, the title compound crystallized with one molecule of CHCl3.

In the crystal, the chloroform molecule is linked to the complex via a C-H···π interaction.

Related literature top

For the crystal structures of similar compounds, see: Moro et al. (2004); Caires et al. (2006).

Experimental top

The title compound was synthesized from the interaction between the dimer [Pd(DMBA)(µX)]2 (where X = Cl, N3, NCO) and thiourea, being the product of the cleavage reaction. The reaction was performed by mixing a 1:2 stoichiometric amount of[Pd(DMBA)(µN3)]2 and thiourea in chloroform at room temperature with constant stirring during 1 h. After the reaction mixture was left for the solvent to slowly evaporate at room temperature. Large yellow needle-like crystals suitable for X-ray diffraction analysis were obtained.

Refinement top

The C-bound H-atoms were included in calculated positions and treated as riding atoms: C—H = 0.93, 0.96 and 0.97 Å, for CH, CH3 and CH2 H atoms, respectively, with Uiso(H) = k × Ueq(C) where k = 1.5 for CH3 H atoms, and = 1.2 for other H atoms.

Computing details top

Data collection: CAD-4 EXPRESS (Enraf–Nonius, 1994); cell refinement: CAD-4 EXPRESS (Enraf–Nonius, 1994); data reduction: XCAD4 (Harms & Wocadlo, 1995); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: ORTEP-3 for Windows (Farrugia, 2012); software used to prepare material for publication: WinGX (Farrugia, 2012).

Figures top
[Figure 1] Fig. 1. A view of the molecular structure of the title compound, with the atom numbering. The displacement ellipsoids are drawn at the 50% probability level.
µ-Azido-κ2N1:N1-µ-chlorido-bis[(2-chloro-3- dimethylamino-1-phenylprop-1-en-1-yl-κ2C1,N)palladium(II)] chloroform monosolvate top
Crystal data top
[Pd2(C11H13ClN)2Cl(N3)]·CHCl3F(000) = 1576
Mr = 799Dx = 1.769 Mg m−3
Monoclinic, P21/cMo Kα radiation, λ = 0.71073 Å
Hall symbol: -P 2ybcCell parameters from 15 reflections
a = 15.416 (3) Åθ = 3.5–10.8°
b = 11.474 (3) ŵ = 1.76 mm−1
c = 17.094 (4) ÅT = 293 K
β = 97.14 (2)°Prism, red
V = 3000.2 (12) Å30.2 × 0.1 × 0.1 mm
Z = 4
Data collection top
Enraf–Nonius TurboCAD4
diffractometer		2686 reflections with I > 2σ(I)
Radiation source: Enraf–Nonius FR590Rint = 0.066
Graphite monochromatorθmax = 28.1°, θmin = 2.9°
non–profiled ω scansh = −20→0
Absorption correction: ψ scan
(North et al., 1968)		k = 0→15
Tmin = 0.691, Tmax = 0.832l = −22→22
7536 measured reflections3 standard reflections every 120 min
7278 independent reflections intensity decay: 1%
Refinement top
Refinement on F2Primary atom site location: structure-invariant direct methods
Least-squares matrix: fullSecondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.063Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.170H-atom parameters constrained
S = 0.93 w = 1/[σ2(Fo2) + (0.0614P)2]
where P = (Fo2 + 2Fc2)/3
7278 reflections(Δ/σ)max = 0.001
329 parametersΔρmax = 0.75 e Å−3
0 restraintsΔρmin = −0.60 e Å−3
Crystal data top
[Pd2(C11H13ClN)2Cl(N3)]·CHCl3V = 3000.2 (12) Å3
Mr = 799Z = 4
Monoclinic, P21/cMo Kα radiation
a = 15.416 (3) ŵ = 1.76 mm−1
b = 11.474 (3) ÅT = 293 K
c = 17.094 (4) Å0.2 × 0.1 × 0.1 mm
β = 97.14 (2)°
Data collection top
Enraf–Nonius TurboCAD4
diffractometer		2686 reflections with I > 2σ(I)
Absorption correction: ψ scan
(North et al., 1968)		Rint = 0.066
Tmin = 0.691, Tmax = 0.832θmax = 28.1°
7536 measured reflections3 standard reflections every 120 min
7278 independent reflections intensity decay: 1%
Refinement top
R[F2 > 2σ(F2)] = 0.063H-atom parameters constrained
wR(F2) = 0.170Δρmax = 0.75 e Å−3
S = 0.93Δρmin = −0.60 e Å−3
7278 reflectionsAbsolute structure: ?
329 parametersFlack parameter: ?
0 restraintsRogers parameter: ?
Special details top

Geometry. Bond distances, angles etc. have been calculated using the rounded fractional coordinates. All su's are estimated from the variances of the (full) variance-covariance matrix. The cell esds are taken into account in the estimation of distances, angles and torsion angles

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/Ueq
Pd10.74282 (5)−0.05511 (7)0.64046 (4)0.0494 (3)
Pd20.61088 (5)0.04133 (7)0.75721 (4)0.0477 (3)
Cl10.58807 (19)0.0000 (3)0.61517 (15)0.0748 (11)
Cl21.00891 (19)−0.1565 (3)0.58511 (18)0.0912 (14)
Cl30.5788 (2)0.2278 (3)0.98230 (18)0.0847 (11)
N10.7132 (5)−0.0720 (8)0.7541 (5)0.060 (3)
N20.7335 (7)−0.1516 (10)0.7953 (6)0.072 (4)
N30.7551 (7)−0.2286 (10)0.8356 (7)0.097 (5)
N40.7701 (6)−0.0231 (7)0.5275 (4)0.056 (3)
N50.5100 (6)0.1623 (7)0.7548 (5)0.056 (3)
C1A0.9152 (6)−0.1204 (9)0.7375 (6)0.052 (4)
C1B0.6717 (7)0.0011 (8)0.9329 (5)0.049 (3)
C2A0.9345 (6)−0.0278 (10)0.7880 (6)0.067 (4)
C2B0.6278 (8)−0.0717 (10)0.9781 (6)0.073 (5)
C3A0.9793 (8)−0.0472 (15)0.8636 (7)0.098 (6)
C3B0.6714 (13)−0.1406 (12)1.0365 (7)0.107 (7)
C4A1.0045 (9)−0.1571 (17)0.8864 (7)0.100 (7)
C4B0.7603 (14)−0.1320 (14)1.0537 (8)0.112 (8)
C5A0.9832 (8)−0.2477 (13)0.8361 (9)0.089 (6)
C5B0.8043 (9)−0.0626 (14)1.0078 (9)0.100 (6)
C6A0.9400 (8)−0.2308 (11)0.7619 (7)0.077 (5)
C6B0.7623 (8)0.0030 (11)0.9476 (7)0.082 (5)
C7A0.8672 (6)−0.1010 (8)0.6573 (5)0.050 (3)
C7B0.6233 (6)0.0737 (8)0.8724 (5)0.047 (3)
C8A0.9010 (7)−0.1115 (9)0.5911 (6)0.058 (4)
C8B0.5814 (7)0.1672 (10)0.8879 (6)0.061 (4)
C9A0.8470 (7)−0.0941 (10)0.5124 (5)0.066 (4)
C9B0.5306 (7)0.2395 (10)0.8233 (6)0.076 (5)
C10A0.7924 (8)0.1028 (10)0.5224 (7)0.082 (5)
C10B0.4982 (8)0.2349 (10)0.6818 (6)0.086 (5)
C11A0.6979 (7)−0.0499 (11)0.4648 (6)0.080 (5)
C11B0.4299 (7)0.0972 (10)0.7599 (7)0.081 (5)
Cl40.8090 (3)−0.0041 (3)0.2711 (2)0.1048 (16)
Cl50.7771 (3)0.2344 (3)0.3010 (3)0.131 (2)
Cl60.7452 (3)0.1444 (4)0.1462 (2)0.147 (2)
C120.8118 (8)0.1356 (10)0.2348 (7)0.082 (5)
H9A10.88070−0.053800.476500.0800*
H9A20.82820−0.168600.489400.0800*
H2A0.917900.047300.772100.0800*
H2B0.56700−0.074600.969300.0880*
H9B10.477300.269100.840800.0910*
H3A0.991700.015000.898100.1180*
H3B0.64050−0.192801.064100.1290*
H9B20.565500.305100.809700.0910*
H4A1.03600−0.170200.935600.1200*
H4B0.78980−0.172901.095800.1340*
H5A0.99830−0.323000.852600.1070*
H5B0.86500−0.059301.017600.1200*
H6A0.92760−0.293900.728200.0920*
H6B0.794400.048700.916600.0980*
H10A0.801100.121500.469200.1220*
H10B0.844900.118900.557000.1220*
H10C0.745400.149000.537700.1220*
H10D0.474400.187700.637900.1290*
H10E0.553700.265800.672000.1290*
H10F0.458800.297900.688600.1290*
H11A0.71670−0.035600.414200.1210*
H11B0.64860−0.001200.471100.1210*
H11C0.68150−0.130300.468500.1210*
H11D0.381300.150100.755900.1220*
H11E0.434200.057000.809400.1220*
H11F0.421300.041800.717600.1220*
H120.871900.154500.226200.0990*
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
Pd10.0517 (5)0.0582 (5)0.0388 (4)−0.0015 (5)0.0081 (3)−0.0009 (4)
Pd20.0481 (5)0.0501 (5)0.0452 (4)0.0042 (4)0.0068 (3)0.0059 (4)
Cl10.0710 (19)0.097 (2)0.0568 (16)0.0006 (17)0.0095 (14)0.0031 (15)
Cl20.0608 (19)0.135 (3)0.082 (2)0.008 (2)0.0257 (16)−0.008 (2)
Cl30.096 (2)0.083 (2)0.0741 (19)0.0033 (19)0.0066 (17)−0.0234 (18)
N10.063 (6)0.061 (7)0.055 (5)0.017 (5)0.009 (4)0.008 (5)
N20.078 (7)0.062 (7)0.078 (8)−0.001 (6)0.015 (6)0.006 (6)
N30.099 (9)0.082 (9)0.113 (9)0.000 (7)0.021 (7)0.025 (7)
N40.072 (6)0.057 (6)0.040 (4)−0.001 (5)0.011 (4)0.001 (4)
N50.063 (6)0.052 (6)0.049 (5)0.008 (5)−0.005 (4)0.011 (4)
C1A0.054 (6)0.050 (7)0.054 (6)−0.005 (5)0.012 (5)0.008 (5)
C1B0.065 (7)0.045 (6)0.038 (5)−0.004 (5)0.010 (5)−0.004 (4)
C2A0.058 (7)0.078 (9)0.060 (7)0.000 (6)−0.010 (5)−0.011 (6)
C2B0.097 (9)0.074 (9)0.049 (6)−0.004 (7)0.013 (6)0.012 (6)
C3A0.079 (9)0.139 (13)0.070 (8)−0.015 (10)−0.017 (7)−0.027 (10)
C3B0.185 (17)0.083 (10)0.055 (8)0.015 (12)0.024 (10)0.025 (7)
C4A0.087 (10)0.157 (16)0.053 (8)0.023 (11)−0.003 (7)0.016 (10)
C4B0.171 (18)0.097 (12)0.056 (9)0.053 (13)−0.030 (11)−0.006 (8)
C5A0.078 (9)0.094 (11)0.095 (10)−0.001 (8)0.009 (8)0.031 (9)
C5B0.076 (9)0.128 (13)0.091 (10)0.013 (10)−0.011 (8)0.013 (10)
C6A0.072 (8)0.075 (9)0.080 (9)−0.015 (7)−0.005 (7)0.014 (7)
C6B0.077 (9)0.092 (10)0.071 (8)0.000 (7)−0.014 (7)0.006 (7)
C7A0.054 (6)0.053 (6)0.044 (5)0.002 (5)0.010 (5)−0.001 (5)
C7B0.037 (5)0.049 (7)0.054 (6)0.003 (5)0.003 (4)0.009 (5)
C8A0.060 (7)0.053 (7)0.065 (7)−0.008 (6)0.020 (6)−0.004 (6)
C8B0.065 (7)0.061 (8)0.055 (6)−0.008 (6)0.002 (6)0.002 (6)
C9A0.065 (7)0.089 (9)0.048 (6)0.002 (6)0.018 (6)−0.010 (6)
C9B0.072 (8)0.081 (9)0.074 (8)0.010 (7)0.003 (6)−0.004 (7)
C10A0.105 (10)0.074 (9)0.068 (8)0.014 (8)0.020 (7)0.011 (7)
C10B0.109 (10)0.078 (9)0.073 (8)0.044 (8)0.020 (7)0.021 (7)
C11A0.080 (8)0.108 (10)0.050 (6)0.008 (8)−0.005 (6)0.004 (7)
C11B0.049 (7)0.101 (10)0.091 (9)0.011 (7)0.002 (6)−0.003 (8)
Cl40.135 (3)0.073 (2)0.108 (3)0.008 (2)0.022 (2)0.015 (2)
Cl50.145 (4)0.102 (3)0.144 (4)0.046 (3)0.007 (3)−0.038 (3)
Cl60.206 (5)0.143 (4)0.087 (3)0.024 (4)0.004 (3)0.021 (3)
C120.087 (9)0.066 (8)0.097 (9)0.007 (7)0.022 (7)0.011 (7)
Geometric parameters (Å, º) top
Pd1—Cl12.454 (3)C5A—C6A1.371 (19)
Pd1—N12.059 (8)C5B—C6B1.37 (2)
Pd1—N42.060 (7)C7A—C8A1.309 (14)
Pd1—C7A1.975 (9)C7B—C8B1.297 (15)
Pd2—Cl12.456 (3)C8A—C9A1.505 (14)
Pd2—N12.050 (8)C8B—C9B1.519 (15)
Pd2—N52.081 (9)C2A—H2A0.9300
Pd2—C7B1.990 (9)C2B—H2B0.9300
Cl2—C8A1.757 (11)C3A—H3A0.9300
Cl3—C8B1.762 (11)C3B—H3B0.9300
Cl4—C121.721 (12)C4A—H4A0.9300
Cl5—C121.733 (13)C4B—H4B0.9300
Cl6—C121.724 (13)C5A—H5A0.9300
N1—N21.172 (14)C5B—H5B0.9300
N2—N31.144 (16)C6A—H6A0.9300
N4—C9A1.487 (14)C6B—H6B0.9300
N4—C10A1.490 (14)C9A—H9A10.9700
N4—C11A1.478 (13)C9A—H9A20.9700
N5—C9B1.471 (14)C9B—H9B20.9700
N5—C11B1.455 (14)C9B—H9B10.9700
N5—C10B1.493 (14)C10A—H10B0.9600
C1A—C7A1.491 (13)C10A—H10A0.9600
C1A—C6A1.373 (16)C10A—H10C0.9600
C1A—C2A1.378 (15)C10B—H10D0.9600
C1B—C2B1.372 (15)C10B—H10E0.9600
C1B—C6B1.388 (16)C10B—H10F0.9600
C1B—C7B1.459 (13)C11A—H11C0.9600
C2A—C3A1.405 (16)C11A—H11A0.9600
C2B—C3B1.381 (18)C11A—H11B0.9600
C3A—C4A1.36 (2)C11B—H11D0.9600
C3B—C4B1.37 (3)C11B—H11E0.9600
C4A—C5A1.36 (2)C11B—H11F0.9600
C4B—C5B1.36 (2)C12—H120.9800
Cl1—Pd1—N182.3 (2)C3A—C2A—H2A120.00
Cl1—Pd1—N495.5 (3)C1B—C2B—H2B119.00
Cl1—Pd1—C7A178.2 (3)C3B—C2B—H2B119.00
N1—Pd1—N4175.1 (3)C2A—C3A—H3A120.00
N1—Pd1—C7A99.4 (3)C4A—C3A—H3A120.00
N4—Pd1—C7A82.9 (4)C2B—C3B—H3B120.00
Cl1—Pd2—N182.4 (3)C4B—C3B—H3B120.00
Cl1—Pd2—N595.4 (2)C3A—C4A—H4A120.00
Cl1—Pd2—C7B177.3 (3)C5A—C4A—H4A120.00
N1—Pd2—N5176.4 (3)C3B—C4B—H4B121.00
N1—Pd2—C7B99.5 (4)C5B—C4B—H4B121.00
N5—Pd2—C7B82.8 (4)C4A—C5A—H5A119.00
Pd1—Cl1—Pd281.89 (9)C6A—C5A—H5A119.00
Pd1—N1—Pd2103.1 (4)C4B—C5B—H5B119.00
Pd1—N1—N2124.5 (8)C6B—C5B—H5B119.00
Pd2—N1—N2128.9 (8)C1A—C6A—H6A120.00
N1—N2—N3178.6 (12)C5A—C6A—H6A120.00
Pd1—N4—C9A109.0 (5)C1B—C6B—H6B120.00
Pd1—N4—C10A107.7 (6)C5B—C6B—H6B120.00
Pd1—N4—C11A114.8 (7)N4—C9A—H9A1110.00
C9A—N4—C10A109.0 (9)N4—C9A—H9A2110.00
C9A—N4—C11A107.8 (7)C8A—C9A—H9A1110.00
C10A—N4—C11A108.5 (8)C8A—C9A—H9A2110.00
Pd2—N5—C9B107.4 (6)H9A1—C9A—H9A2109.00
Pd2—N5—C10B113.7 (7)N5—C9B—H9B1110.00
Pd2—N5—C11B107.1 (6)N5—C9B—H9B2110.00
C9B—N5—C10B108.7 (8)C8B—C9B—H9B1110.00
C9B—N5—C11B111.2 (8)C8B—C9B—H9B2110.00
C10B—N5—C11B108.7 (9)H9B1—C9B—H9B2109.00
C2A—C1A—C6A119.4 (10)N4—C10A—H10A109.00
C2A—C1A—C7A120.3 (9)N4—C10A—H10B109.00
C6A—C1A—C7A120.3 (9)N4—C10A—H10C109.00
C2B—C1B—C6B117.6 (10)H10A—C10A—H10B110.00
C2B—C1B—C7B120.2 (10)H10A—C10A—H10C109.00
C6B—C1B—C7B122.3 (9)H10B—C10A—H10C109.00
C1A—C2A—C3A119.8 (11)N5—C10B—H10D109.00
C1B—C2B—C3B121.7 (13)N5—C10B—H10E109.00
C2A—C3A—C4A120.0 (13)N5—C10B—H10F109.00
C2B—C3B—C4B119.9 (14)H10D—C10B—H10E110.00
C3A—C4A—C5A119.2 (12)H10D—C10B—H10F109.00
C3B—C4B—C5B118.5 (14)H10E—C10B—H10F110.00
C4A—C5A—C6A121.8 (14)N4—C11A—H11A109.00
C4B—C5B—C6B122.2 (14)N4—C11A—H11B109.00
C1A—C6A—C5A119.8 (12)N4—C11A—H11C109.00
C1B—C6B—C5B119.9 (11)H11A—C11A—H11B109.00
Pd1—C7A—C1A122.4 (6)H11A—C11A—H11C110.00
Pd1—C7A—C8A112.5 (7)H11B—C11A—H11C109.00
C1A—C7A—C8A125.1 (9)N5—C11B—H11D109.00
Pd2—C7B—C1B125.0 (7)N5—C11B—H11E109.00
Pd2—C7B—C8B111.6 (7)N5—C11B—H11F109.00
C1B—C7B—C8B123.5 (9)H11D—C11B—H11E110.00
Cl2—C8A—C7A124.0 (8)H11D—C11B—H11F109.00
Cl2—C8A—C9A114.2 (7)H11E—C11B—H11F110.00
C7A—C8A—C9A121.7 (10)Cl4—C12—Cl5110.5 (7)
Cl3—C8B—C7B125.6 (8)Cl4—C12—Cl6109.4 (7)
Cl3—C8B—C9B112.5 (8)Cl5—C12—Cl6109.7 (7)
C7B—C8B—C9B121.9 (9)Cl4—C12—H12109.00
N4—C9A—C8A106.4 (7)Cl5—C12—H12109.00
N5—C9B—C8B106.9 (9)Cl6—C12—H12109.00
C1A—C2A—H2A120.00
N1—Pd1—Cl1—Pd221.6 (3)C11B—N5—C9B—C8B85.9 (10)
N4—Pd1—Cl1—Pd2−153.9 (2)C6A—C1A—C2A—C3A0.1 (15)
Cl1—Pd1—N1—Pd2−26.6 (3)C7A—C1A—C2A—C3A179.6 (9)
Cl1—Pd1—N1—N2133.7 (9)C2A—C1A—C6A—C5A0.3 (17)
C7A—Pd1—N1—Pd2154.1 (4)C7A—C1A—C6A—C5A−179.2 (10)
C7A—Pd1—N1—N2−45.6 (10)C2A—C1A—C7A—Pd1−69.6 (11)
Cl1—Pd1—N4—C9A−155.7 (6)C2A—C1A—C7A—C8A110.2 (12)
Cl1—Pd1—N4—C10A86.2 (7)C6A—C1A—C7A—Pd1110.0 (10)
Cl1—Pd1—N4—C11A−34.8 (7)C6A—C1A—C7A—C8A−70.3 (14)
C7A—Pd1—N4—C9A23.4 (7)C6B—C1B—C2B—C3B0.3 (16)
C7A—Pd1—N4—C10A−94.7 (7)C7B—C1B—C2B—C3B−179.2 (10)
C7A—Pd1—N4—C11A144.4 (8)C2B—C1B—C6B—C5B−2.8 (17)
N1—Pd1—C7A—C1A−7.9 (8)C7B—C1B—C6B—C5B176.7 (11)
N1—Pd1—C7A—C8A172.3 (7)C2B—C1B—C7B—Pd2−103.3 (10)
N4—Pd1—C7A—C1A167.7 (8)C2B—C1B—C7B—C8B75.4 (13)
N4—Pd1—C7A—C8A−12.1 (7)C6B—C1B—C7B—Pd277.3 (12)
N1—Pd2—Cl1—Pd1−21.7 (3)C6B—C1B—C7B—C8B−104.1 (13)
N5—Pd2—Cl1—Pd1155.4 (2)C1A—C2A—C3A—C4A0.8 (17)
Cl1—Pd2—N1—Pd126.6 (3)C1B—C2B—C3B—C4B4.0 (19)
Cl1—Pd2—N1—N2−132.5 (10)C2A—C3A—C4A—C5A−2.1 (19)
C7B—Pd2—N1—Pd1−155.4 (4)C2B—C3B—C4B—C5B−6 (2)
C7B—Pd2—N1—N245.5 (11)C3A—C4A—C5A—C6A3 (2)
Cl1—Pd2—N5—C9B−155.6 (6)C3B—C4B—C5B—C6B3 (2)
Cl1—Pd2—N5—C10B−35.3 (7)C4A—C5A—C6A—C1A−1.6 (19)
Cl1—Pd2—N5—C11B84.8 (7)C4B—C5B—C6B—C1B1 (2)
C7B—Pd2—N5—C9B26.5 (7)Pd1—C7A—C8A—Cl2−177.5 (6)
C7B—Pd2—N5—C10B146.8 (7)Pd1—C7A—C8A—C9A−2.2 (13)
C7B—Pd2—N5—C11B−93.1 (7)C1A—C7A—C8A—Cl22.7 (15)
N1—Pd2—C7B—C1B−18.8 (9)C1A—C7A—C8A—C9A178.0 (9)
N1—Pd2—C7B—C8B162.4 (8)Pd2—C7B—C8B—Cl3−178.0 (6)
N5—Pd2—C7B—C1B164.0 (9)Pd2—C7B—C8B—C9B−0.2 (13)
N5—Pd2—C7B—C8B−14.8 (8)C1B—C7B—C8B—Cl33.2 (16)
Pd1—N4—C9A—C8A−28.3 (9)C1B—C7B—C8B—C9B−179.1 (10)
C10A—N4—C9A—C8A88.9 (9)Cl2—C8A—C9A—N4−162.9 (7)
C11A—N4—C9A—C8A−153.5 (8)C7A—C8A—C9A—N421.4 (14)
Pd2—N5—C9B—C8B−31.1 (9)Cl3—C8B—C9B—N5−159.5 (7)
C10B—N5—C9B—C8B−154.5 (9)C7B—C8B—C9B—N522.5 (14)
Hydrogen-bond geometry (Å, º) top
Cg1 is the centroid of the C1A–C6A ring.
D—H···AD—HH···AD···AD—H···A
C11A—H11B···Cl10.962.743.299 (11)118
C12—H12···Cg1i0.982.773.713 (13)163
Symmetry code: (i) −x+2, −y, −z+1.
Hydrogen-bond geometry (Å, º) top
Cg1 is the centroid of the C1A–C6A ring.
D—H···AD—HH···AD···AD—H···A
C11A—H11B···Cl10.962.743.299 (11)118
C12—H12···Cg1i0.982.773.713 (13)163
Symmetry code: (i) −x+2, −y, −z+1.
Acknowledgements top

We are extremely grateful to the late Professor Antonio Carlos Favero Caires for suppling us with the sample used, and to the CNPq National Council for Technological and Scientific Development for supporting this study.

references
References top

Caires, A. C. F., Mauro, A. E., Moro, A. C., de Oliveira Legendre, A. & Ananias, S. R. (2006). Quím. Nova, 29, 750–754.

Enraf–Nonius (1994). CAD-4 EXPRESS. Enraf–Nonius, Delft, The Netherlands.

Farrugia, L. J. (2012). J. Appl. Cryst. 45, 849–854.

Harms, K. & Wocadlo, S. (1995). XCAD4. University of Marburg, Germany.

Moro, A. C., Mauro, A. E. & Ananias, S. R. (2004). Eclet. Quím. 29, 57–61.

North, A. C. T., Phillips, D. C. & Mathews, F. S. (1968). Acta Cryst. A24, 351–359.

Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122.
