N,N,N′,N′,N′′-Penta­methyl-N′′-[3-(tri­methyl­aza­nium­yl)prop­yl]guanidinium bis­(tetra­phenyl­borate)

Tiritiris, I.

doi:10.1107/S1600536813001992

organic compounds

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 69| Part 2| February 2013| Page o292

doi:10.1107/S1600536813001992

Open

access

N,N,N′,N′,N′′-Pentamethyl-N′′-[3-(trimethylazaniumyl)propyl]guanidinium bis(tetraphenylborate)

Ioannis Tiritiris ^a ^*

^aFakultät Chemie/Organische Chemie, Hochschule Aalen, Beethovenstrasse 1, D-73430 Aalen, Germany
^*Correspondence e-mail: Ioannis.Tiritiris@htw-aalen.de

(Received 17 January 2013; accepted 20 January 2013; online 26 January 2013)

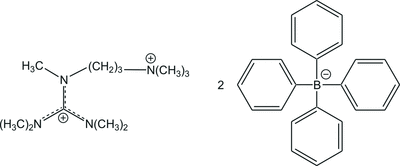

In the crystal structure of the title salt, C₁₂H₃₀N₄²⁺·2C₂₄H₂₀B⁻, the C—N bond lengths in the central CN₃ unit of the guanidinium ion are 1.3388 (17), 1.3390 (16) and 1.3540 (17) Å, indicating partial double-bond character in each. The central C atom is bonded to the three N atoms in a nearly ideal trigonal-planar geometry and the positive charge is delocalized in the CN₃ plane. The bonds between the N atoms and the terminal C-methyl groups of the guanidinium moiety, all have values close to a typical single bond [1.4630 (16)–1.4697 (17) Å]. C—H⋯π interactions are present between the guanidinium H atoms and the phenyl C atoms of one tetraphenylborate ion. The phenyl rings form a kind of aromatic pocket, in which the guanidinium ion is embedded.

Related literature

For the synthesis of N′′-[3-(dimethylamino)propyl]- N,N,N′,N′-tetramethylguanidine, see: Tiritiris & Kantlehner (2012 ). For the crystal structures of alkali metal tetraphenylborates, see: Behrens et al. (2012 ).

Experimental

Crystal data

C₁₂H₃₀N₄⁺·2C₂₄H₂₀B⁻
M_r = 868.82
Monoclinic, P 2₁ /c
a = 17.7622 (4) Å
b = 16.1667 (3) Å
c = 17.3787 (4) Å
β = 98.045 (1)°
V = 4941.29 (18) Å³
Z = 4
Mo Kα radiation
μ = 0.07 mm⁻¹
T = 100 K
0.27 × 0.25 × 0.20 mm

Data collection

Bruker–Nonius KappaCCD diffractometer
22713 measured reflections
12056 independent reflections
8821 reflections with I > 2σ(I)
R_int = 0.038

Refinement

R[F² > 2σ(F²)] = 0.045
wR(F²) = 0.108
S = 1.02
12056 reflections
603 parameters
H-atom parameters constrained
Δρ_max = 0.31 e Å⁻³
Δρ_min = −0.27 e Å⁻³

Table 1
Hydrogen-bond geometry (Å, °)

Cg1, Cg4, Cg5, Cg6, and Cg8 are the centroids of the C13–C18,C31–C36, C37–C42, C43–C48 and C55–C60 rings, respectively.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C3—H3C⋯Cg7	0.98	2.62	3.3783 (16)	134
C7—H7B⋯Cg1	0.99	2.80	3.7805 (14)	169
C9—H9B⋯Cg6	0.99	2.52	3.4075 (14)	149
C11—H11C⋯Cg5ⁱ	0.98	2.62	3.4852 (15)	147
C12—H12A⋯Cg4	0.98	2.59	3.4044 (15)	141
C12—H12B⋯Cg8ⁱⁱ	0.98	2.69	3.5990 (15)	155
Symmetry codes: (i) $[-x+1, y+{\script{1\over 2}}, -z+{\script{1\over 2}}]$ ; (ii) $[x, -y+{\script{3\over 2}}, z+{\script{1\over 2}}]$ .

Data collection: COLLECT (Hooft, 2004 ); cell refinement: SCALEPACK (Otwinowski & Minor, 1997 ); data reduction: SCALEPACK; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: DIAMOND (Brandenburg & Putz, 2005 ); software used to prepare material for publication: SHELXL97.

Supporting information

Crystal structure: contains datablocks I, global. DOI: 10.1107/S1600536813001992/zl2530sup1.cif

Structure factors: contains datablock I. DOI: 10.1107/S1600536813001992/zl2530Isup2.hkl

checkCIF report

Comment top

Molecules in which alkylamino groups are connected with a guanidine function represent promising candidates for CO₂ capture, since in such type of compounds two nitrogen centers with different basicity are present, which can react with CO₂. Guanidines with additional basic nitrogen functions like tertiary amino groups are well known in the literature (Tiritiris & Kantlehner, 2012), except of their peralkylated guanidinium salts. By alkylation of the corresponding aminoguanidine with dimethyl sulfate and subsequent anion exchange, it was possible to obtain the here presented title compound. According to the structure analysis, the C1–N1 bond of the the CN₃ unit is 1.3390 (16) Å, C1–N2 = 1.3388 (17) Å and C1–N3 = 1.3540 (17) Å, showing partial double-bond character. The N–C1–N angles are: 121.12 (12)° (N1–C1–N2), 120.28 (12)° (N1–C1–N3) and 118.60 (11)° (N2–C1–N3), which indicates a nearly ideal trigonal-planar surrounding of the carbon centre by the nitrogen atoms. The positive charge is completely delocalized on the CN₃ plane (Fig. 1). The bonds between the N atoms and the terminal C-methyl groups of the guanidinium moiety all have values close to a typical single bond [1.4630 (16)–1.4697 (17) Å]. The C–N bond lengths in the terminal trimethylammonium group are slightly elongated [1.4983 (17)–1.5171 (16) Å]. The bond lengths and angles in the tetraphenylborate ions are in good agreement with the data from the crystal structure analysis of the alkali metal tetraphenylborates (Behrens et al., 2012). C–H···π interactions between the hydrogen atoms of –N(CH₃)₂, –CH₂ and –N⁺(CH₃)₃ groups of the guanidinium ion and the phenyl carbon atoms of only one tetraphenylborate ion are mainly present, ranging from 2.724 (2) to 2.895 (2) Å (Fig. 2).

Related literature top

For the synthesis of N''-[3-(dimethylamino)propyl]- N,N,N',N'-tetramethylguanidine, see: Tiritiris & Kantlehner (2012). For the crystal structures of alkali metal tetraphenylborates, see: Behrens et al. (2012).

Experimental top

The title compound was obtained by reaction of N''-[3-(dimethylamino)propyl]-N,N,N',N'-tetramethylguanidine (Tiritiris & Kantlehner, 2012) with two equivalents dimethyl sulfate in acetonitrile at room temperature. After evaporation of the solvent the crude N,N,N',N',N''-pentamethyl-N''-[3-(trimethylazaniumyl)propyl]-guanidinium bis(methylsulfate) (I) was washed with diethylether and dried in vacuo. 1.0 g (2.2 mmol) of (I) was dissolved in 20 ml acetonitrile and 1.51 g (4.4 mmol) of sodium tetraphenylborate in 20 ml acetonitrile were added. After stirring for one hour at room temperature, the precipitated sodium methylsulfate was filtered off. The title compound crystallized from a saturated acetone solution after several days at 273 K, forming colorless single crystals. Yield: 1.34 g (68.2%). ¹H NMR (500 MHz, CD₃CN/TMS): δ = 2.10 (broad s, 1 H, –CH₂), 2.35 (broad s, 1 H, –CH₂), 2.95 (s, 3 H, –NCH₃), 2.98 [s, 12 H, –N(CH₃)₂], 3.13 [s, 9 H, –N⁺(CH₃)₃], 3.20–3.40 (m, 4 H, –CH₂), 6.86–6.91 (t, 8 H, –C₆H₅), 6.96–7.04 (t, 16 H,–C₆H₅), 7.25–7.30 (m, 16 H, –C₆H₅). ¹³C NMR (125 MHz, CD₃CN/TMS): δ = 22.5 (–CH₂), 37.9 (–NCH₃), 40.5 [–N(CH₃)₂], 49.8 (–CH₂), 53.6–53.9 [–N⁺(CH₃)₃], 64.3 (–CH₂), 122.3 (–C₆H₅), 126.1 – 126.7 (–C₆H₅), 137.0 (–C₆H₅), 162.9 – 164.0 (–C₆H₅), 165.5 (N₃C⁺).

Computing details top

Data collection: COLLECT (Hooft, 2004); cell refinement: SCALEPACK (Otwinowski & Minor, 1997); data reduction: SCALEPACK (Otwinowski & Minor, 1997); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: DIAMOND (Brandenburg & Putz, 2005); software used to prepare material for publication: SHELXL97 (Sheldrick, 2008).

Figures top

	Fig. 1. The structure of the title compound with displacement ellipsoids at the 50% probability level. All hydrogen atoms were omitted for the sake of clarity.
	Fig. 2. C–H···π interactions (brown dashed lines) between the hydrogen atoms of the guanidinium ion and the phenyl carbon atoms of one tetraphenylborate ion.

N,N,N',N',N''-Pentamethyl-N''-[3-(trimethylazaniumyl)propyl]guanidinium bis(tetraphenylborate) top

Crystal data top

C₁₂H₃₀N₄⁺·2C₂₄H₂₀B⁻	F(000) = 1872
M_r = 868.82	D_x = 1.168 Mg m⁻³
Monoclinic, P2₁/c	Melting point: 502 K
Hall symbol: -P 2ybc	Mo Kα radiation, λ = 0.71073 Å
a = 17.7622 (4) Å	Cell parameters from 11929 reflections
b = 16.1667 (3) Å	θ = 0.4–28.3°
c = 17.3787 (4) Å	µ = 0.07 mm⁻¹
β = 98.045 (1)°	T = 100 K
V = 4941.29 (18) Å³	Polyhedral, colorless
Z = 4	0.27 × 0.25 × 0.20 mm

Data collection top

Bruker–Nonius KappaCCD diffractometer	8821 reflections with I > 2σ(I)
Radiation source: sealed tube	R_int = 0.038
Graphite monochromator	θ_max = 28.3°, θ_min = 1.2°
ϕ scans, and ω scans	h = −23→23
22713 measured reflections	k = −21→21
12056 independent reflections	l = −23→23

Refinement top

Refinement on F²	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.045	Hydrogen site location: difference Fourier map
wR(F²) = 0.108	H-atom parameters constrained
S = 1.02	w = 1/[σ²(F_o²) + (0.0389P)² + 2.0808P] where P = (F_o² + 2F_c²)/3
12056 reflections	(Δ/σ)_max < 0.001
603 parameters	Δρ_max = 0.31 e Å⁻³
0 restraints	Δρ_min = −0.27 e Å⁻³

Crystal data top

C₁₂H₃₀N₄⁺·2C₂₄H₂₀B⁻	V = 4941.29 (18) Å³
M_r = 868.82	Z = 4
Monoclinic, P2₁/c	Mo Kα radiation
a = 17.7622 (4) Å	µ = 0.07 mm⁻¹
b = 16.1667 (3) Å	T = 100 K
c = 17.3787 (4) Å	0.27 × 0.25 × 0.20 mm
β = 98.045 (1)°

Data collection top

Bruker–Nonius KappaCCD diffractometer	8821 reflections with I > 2σ(I)
22713 measured reflections	R_int = 0.038
12056 independent reflections

Refinement top

R[F² > 2σ(F²)] = 0.045	0 restraints
wR(F²) = 0.108	H-atom parameters constrained
S = 1.02	Δρ_max = 0.31 e Å⁻³
12056 reflections	Δρ_min = −0.27 e Å⁻³
603 parameters

Special details top

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F² against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F², conventional R-factors R are based on F, with F set to zero for negative F². The threshold expression of F² > σ(F²) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F² are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
N1	0.72188 (6)	0.33127 (7)	0.03324 (6)	0.0155 (2)
N2	0.82034 (6)	0.28130 (7)	0.12425 (6)	0.0163 (2)
N3	0.81518 (6)	0.42077 (7)	0.09366 (6)	0.0152 (2)
N4	0.73663 (6)	0.66166 (7)	0.24912 (6)	0.0134 (2)
C1	0.78526 (7)	0.34387 (8)	0.08336 (7)	0.0136 (2)
C2	0.70205 (8)	0.38292 (9)	−0.03593 (8)	0.0205 (3)
H2A	0.6572	0.4163	−0.0300	0.031*
H2B	0.6909	0.3475	−0.0819	0.031*
H2C	0.7448	0.4195	−0.0422	0.031*
C3	0.66849 (8)	0.26374 (9)	0.04174 (9)	0.0216 (3)
H3A	0.6774	0.2183	0.0068	0.032*
H3B	0.6162	0.2839	0.0285	0.032*
H3C	0.6762	0.2439	0.0956	0.032*
C4	0.82067 (8)	0.19610 (9)	0.09563 (9)	0.0211 (3)
H4A	0.7872	0.1620	0.1229	0.032*
H4B	0.8725	0.1741	0.1051	0.032*
H4C	0.8025	0.1952	0.0397	0.032*
C5	0.86344 (8)	0.29427 (10)	0.20146 (8)	0.0231 (3)
H5A	0.9179	0.2887	0.1986	0.035*
H5B	0.8482	0.2530	0.2376	0.035*
H5C	0.8531	0.3498	0.2199	0.035*
C6	0.89702 (7)	0.43361 (9)	0.09621 (9)	0.0208 (3)
H6A	0.9211	0.3816	0.0838	0.031*
H6B	0.9188	0.4518	0.1484	0.031*
H6C	0.9060	0.4759	0.0582	0.031*
C7	0.76724 (7)	0.49447 (8)	0.09672 (7)	0.0156 (3)
H7A	0.7133	0.4773	0.0920	0.019*
H7B	0.7731	0.5309	0.0521	0.019*
C8	0.78810 (7)	0.54320 (8)	0.17278 (7)	0.0153 (3)
H8A	0.7989	0.5045	0.2171	0.018*
H8B	0.8341	0.5771	0.1700	0.018*
C9	0.72114 (7)	0.59887 (8)	0.18394 (7)	0.0146 (2)
H9A	0.7050	0.6289	0.1348	0.017*
H9B	0.6781	0.5635	0.1942	0.017*
C10	0.78839 (8)	0.72864 (8)	0.22812 (8)	0.0183 (3)
H10A	0.7986	0.7678	0.2714	0.027*
H10B	0.7641	0.7578	0.1817	0.027*
H10C	0.8364	0.7042	0.2175	0.027*
C11	0.66238 (7)	0.70012 (9)	0.26196 (8)	0.0183 (3)
H11A	0.6719	0.7443	0.3008	0.027*
H11B	0.6297	0.6579	0.2806	0.027*
H11C	0.6371	0.7233	0.2129	0.027*
C12	0.77035 (8)	0.62061 (9)	0.32345 (7)	0.0176 (3)
H12A	0.8213	0.6001	0.3183	0.026*
H12B	0.7380	0.5742	0.3346	0.026*
H12C	0.7738	0.6607	0.3661	0.026*
B1	0.92120 (8)	0.77122 (9)	0.01258 (8)	0.0130 (3)
C13	0.84884 (7)	0.70967 (8)	−0.01978 (7)	0.0139 (2)
C14	0.85773 (8)	0.64051 (9)	−0.06727 (8)	0.0197 (3)
H14A	0.9076	0.6256	−0.0759	0.024*
C15	0.79684 (9)	0.59327 (9)	−0.10199 (8)	0.0230 (3)
H15A	0.8058	0.5482	−0.1347	0.028*
C16	0.72308 (9)	0.61134 (9)	−0.08931 (8)	0.0222 (3)
H16A	0.6812	0.5800	−0.1138	0.027*
C17	0.71217 (8)	0.67606 (9)	−0.04010 (8)	0.0211 (3)
H17A	0.6624	0.6884	−0.0292	0.025*
C18	0.77377 (8)	0.72337 (9)	−0.00630 (8)	0.0172 (3)
H18A	0.7644	0.7671	0.0276	0.021*
C19	0.90010 (7)	0.83216 (8)	0.08230 (7)	0.0131 (2)
C20	0.84233 (7)	0.89228 (8)	0.06892 (7)	0.0148 (2)
H20A	0.8138	0.8959	0.0186	0.018*
C21	0.82520 (7)	0.94659 (8)	0.12597 (8)	0.0170 (3)
H21A	0.7862	0.9867	0.1139	0.020*
C22	0.86491 (8)	0.94244 (9)	0.20072 (8)	0.0180 (3)
H22A	0.8529	0.9788	0.2402	0.022*
C23	0.92215 (8)	0.88448 (9)	0.21657 (8)	0.0179 (3)
H23A	0.9499	0.8810	0.2673	0.021*
C24	0.93943 (7)	0.83101 (8)	0.15836 (7)	0.0157 (3)
H24A	0.9795	0.7922	0.1707	0.019*
C25	0.99644 (7)	0.71673 (8)	0.04716 (7)	0.0144 (2)
C26	0.99181 (8)	0.63813 (9)	0.08039 (8)	0.0189 (3)
H26A	0.9434	0.6125	0.0778	0.023*
C27	1.05539 (8)	0.59606 (9)	0.11711 (8)	0.0212 (3)
H27A	1.0499	0.5426	0.1383	0.025*
C28	1.12671 (8)	0.63228 (9)	0.12264 (8)	0.0201 (3)
H28A	1.1702	0.6042	0.1480	0.024*
C29	1.13376 (8)	0.71018 (9)	0.09060 (8)	0.0186 (3)
H29A	1.1823	0.7357	0.0941	0.022*
C30	1.06967 (7)	0.75080 (8)	0.05334 (8)	0.0163 (3)
H30A	1.0758	0.8037	0.0312	0.020*
C31	0.94239 (7)	0.82836 (8)	−0.06068 (7)	0.0135 (2)
C32	0.95366 (7)	0.79298 (8)	−0.13195 (8)	0.0159 (3)
H32A	0.9483	0.7348	−0.1381	0.019*
C33	0.97242 (7)	0.83945 (9)	−0.19412 (7)	0.0170 (3)
H33A	0.9794	0.8126	−0.2413	0.020*
C34	0.98100 (7)	0.92435 (9)	−0.18763 (8)	0.0179 (3)
H34A	0.9929	0.9564	−0.2302	0.022*
C35	0.97190 (8)	0.96169 (9)	−0.11763 (8)	0.0189 (3)
H35A	0.9786	1.0197	−0.1117	0.023*
C36	0.95301 (7)	0.91444 (8)	−0.05604 (7)	0.0161 (3)
H36A	0.9470	0.9416	−0.0088	0.019*
B2	0.56950 (8)	0.36867 (9)	0.27014 (8)	0.0139 (3)
C37	0.49422 (7)	0.35924 (8)	0.31507 (8)	0.0165 (3)
C38	0.49765 (8)	0.31050 (9)	0.38226 (8)	0.0215 (3)
H38A	0.5429	0.2803	0.3990	0.026*
C39	0.43758 (9)	0.30464 (10)	0.42539 (9)	0.0284 (3)
H39A	0.4426	0.2718	0.4711	0.034*
C40	0.37027 (9)	0.34683 (10)	0.40166 (10)	0.0325 (4)
H40A	0.3297	0.3449	0.4319	0.039*
C41	0.36309 (9)	0.39164 (10)	0.33346 (11)	0.0300 (4)
H41A	0.3165	0.4188	0.3154	0.036*
C42	0.42396 (8)	0.39720 (9)	0.29082 (9)	0.0213 (3)
H42A	0.4175	0.4278	0.2437	0.026*
C43	0.55692 (7)	0.44382 (8)	0.20609 (7)	0.0147 (3)
C44	0.53044 (7)	0.52126 (8)	0.22770 (8)	0.0168 (3)
H44A	0.5221	0.5290	0.2800	0.020*
C45	0.51585 (7)	0.58709 (9)	0.17622 (8)	0.0188 (3)
H45A	0.4956	0.6374	0.1929	0.023*
C46	0.53105 (8)	0.57886 (9)	0.10041 (8)	0.0194 (3)
H46A	0.5213	0.6233	0.0646	0.023*
C47	0.56067 (7)	0.50486 (9)	0.07758 (8)	0.0185 (3)
H47A	0.5731	0.4993	0.0264	0.022*
C48	0.57231 (7)	0.43850 (9)	0.12931 (7)	0.0159 (3)
H48A	0.5913	0.3880	0.1118	0.019*
C49	0.58100 (7)	0.27853 (8)	0.22960 (7)	0.0149 (3)
C50	0.52557 (8)	0.25007 (9)	0.16949 (8)	0.0182 (3)
H50A	0.4836	0.2849	0.1520	0.022*
C51	0.52972 (8)	0.17294 (9)	0.13454 (8)	0.0216 (3)
H51A	0.4911	0.1564	0.0941	0.026*
C52	0.59017 (9)	0.12011 (9)	0.15866 (8)	0.0229 (3)
H52A	0.5938	0.0680	0.1342	0.027*
C53	0.64505 (9)	0.14484 (9)	0.21901 (9)	0.0222 (3)
H53A	0.6860	0.1089	0.2371	0.027*
C54	0.64020 (8)	0.22249 (9)	0.25323 (8)	0.0182 (3)
H54A	0.6786	0.2381	0.2943	0.022*
C55	0.64417 (7)	0.39616 (8)	0.33197 (7)	0.0149 (3)
C56	0.71816 (7)	0.38922 (8)	0.31254 (8)	0.0166 (3)
H56A	0.7243	0.3689	0.2625	0.020*
C57	0.78282 (8)	0.41093 (8)	0.36350 (8)	0.0183 (3)
H57A	0.8318	0.4035	0.3485	0.022*
C58	0.77572 (8)	0.44333 (8)	0.43604 (8)	0.0193 (3)
H58A	0.8196	0.4572	0.4715	0.023*
C59	0.70356 (8)	0.45515 (9)	0.45582 (8)	0.0205 (3)
H59A	0.6977	0.4794	0.5044	0.025*
C60	0.63950 (8)	0.43173 (9)	0.40482 (8)	0.0186 (3)
H60A	0.5907	0.4402	0.4200	0.022*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
N1	0.0156 (5)	0.0144 (5)	0.0166 (5)	−0.0024 (4)	0.0024 (4)	−0.0029 (4)
N2	0.0192 (6)	0.0131 (5)	0.0168 (5)	−0.0002 (4)	0.0038 (4)	−0.0011 (4)
N3	0.0128 (5)	0.0127 (5)	0.0204 (5)	0.0001 (4)	0.0036 (4)	−0.0029 (4)
N4	0.0144 (5)	0.0099 (5)	0.0154 (5)	0.0000 (4)	0.0009 (4)	−0.0007 (4)
C1	0.0141 (6)	0.0144 (6)	0.0135 (6)	−0.0014 (5)	0.0061 (5)	−0.0028 (5)
C2	0.0220 (7)	0.0228 (7)	0.0161 (6)	0.0030 (6)	0.0009 (5)	−0.0023 (5)
C3	0.0171 (7)	0.0188 (7)	0.0290 (7)	−0.0066 (5)	0.0041 (5)	−0.0073 (6)
C4	0.0253 (7)	0.0116 (6)	0.0272 (7)	0.0014 (5)	0.0072 (6)	−0.0014 (5)
C5	0.0255 (7)	0.0260 (8)	0.0170 (6)	0.0066 (6)	0.0004 (5)	−0.0008 (6)
C6	0.0135 (6)	0.0182 (7)	0.0318 (7)	−0.0025 (5)	0.0064 (5)	−0.0047 (6)
C7	0.0167 (6)	0.0138 (6)	0.0163 (6)	0.0020 (5)	0.0022 (5)	−0.0027 (5)
C8	0.0157 (6)	0.0135 (6)	0.0164 (6)	−0.0003 (5)	0.0013 (5)	−0.0022 (5)
C9	0.0156 (6)	0.0137 (6)	0.0141 (6)	−0.0016 (5)	0.0007 (5)	−0.0031 (5)
C10	0.0192 (6)	0.0125 (6)	0.0232 (7)	−0.0039 (5)	0.0029 (5)	0.0014 (5)
C11	0.0170 (6)	0.0158 (7)	0.0222 (6)	0.0030 (5)	0.0034 (5)	−0.0036 (5)
C12	0.0219 (7)	0.0166 (6)	0.0137 (6)	0.0016 (5)	0.0001 (5)	0.0013 (5)
B1	0.0133 (6)	0.0110 (7)	0.0149 (6)	−0.0004 (5)	0.0025 (5)	0.0008 (5)
C13	0.0177 (6)	0.0116 (6)	0.0125 (5)	−0.0011 (5)	0.0028 (5)	0.0028 (5)
C14	0.0229 (7)	0.0159 (7)	0.0219 (7)	−0.0038 (5)	0.0090 (5)	−0.0007 (5)
C15	0.0356 (8)	0.0172 (7)	0.0172 (6)	−0.0076 (6)	0.0078 (6)	−0.0038 (5)
C16	0.0268 (7)	0.0189 (7)	0.0188 (6)	−0.0087 (6)	−0.0045 (5)	0.0033 (5)
C17	0.0156 (6)	0.0201 (7)	0.0266 (7)	−0.0008 (5)	−0.0004 (5)	0.0035 (6)
C18	0.0191 (6)	0.0141 (6)	0.0183 (6)	0.0003 (5)	0.0023 (5)	0.0005 (5)
C19	0.0147 (6)	0.0104 (6)	0.0147 (6)	−0.0025 (5)	0.0039 (5)	0.0018 (5)
C20	0.0151 (6)	0.0140 (6)	0.0149 (6)	−0.0019 (5)	0.0008 (5)	0.0010 (5)
C21	0.0160 (6)	0.0144 (6)	0.0215 (6)	0.0000 (5)	0.0055 (5)	−0.0001 (5)
C22	0.0212 (7)	0.0174 (7)	0.0166 (6)	−0.0047 (5)	0.0074 (5)	−0.0031 (5)
C23	0.0201 (6)	0.0197 (7)	0.0137 (6)	−0.0053 (5)	0.0023 (5)	0.0018 (5)
C24	0.0171 (6)	0.0135 (6)	0.0165 (6)	−0.0019 (5)	0.0025 (5)	0.0037 (5)
C25	0.0170 (6)	0.0122 (6)	0.0147 (6)	0.0016 (5)	0.0044 (5)	−0.0003 (5)
C26	0.0182 (6)	0.0153 (7)	0.0242 (7)	−0.0001 (5)	0.0067 (5)	0.0036 (5)
C27	0.0240 (7)	0.0147 (7)	0.0259 (7)	0.0033 (5)	0.0076 (6)	0.0062 (5)
C28	0.0190 (7)	0.0210 (7)	0.0204 (6)	0.0071 (5)	0.0030 (5)	0.0026 (5)
C29	0.0149 (6)	0.0201 (7)	0.0210 (6)	0.0004 (5)	0.0030 (5)	−0.0014 (5)
C30	0.0181 (6)	0.0132 (6)	0.0182 (6)	0.0007 (5)	0.0047 (5)	0.0011 (5)
C31	0.0105 (6)	0.0146 (6)	0.0150 (6)	−0.0004 (5)	0.0001 (4)	0.0018 (5)
C32	0.0154 (6)	0.0128 (6)	0.0197 (6)	0.0012 (5)	0.0029 (5)	0.0002 (5)
C33	0.0156 (6)	0.0215 (7)	0.0145 (6)	0.0011 (5)	0.0035 (5)	−0.0012 (5)
C34	0.0170 (6)	0.0210 (7)	0.0158 (6)	−0.0037 (5)	0.0021 (5)	0.0036 (5)
C35	0.0217 (7)	0.0153 (6)	0.0191 (6)	−0.0062 (5)	0.0012 (5)	0.0004 (5)
C36	0.0180 (6)	0.0168 (7)	0.0133 (6)	−0.0028 (5)	0.0018 (5)	−0.0019 (5)
B2	0.0127 (6)	0.0133 (7)	0.0158 (6)	−0.0006 (5)	0.0024 (5)	−0.0026 (5)
C37	0.0156 (6)	0.0146 (6)	0.0197 (6)	−0.0054 (5)	0.0041 (5)	−0.0061 (5)
C38	0.0211 (7)	0.0232 (7)	0.0204 (7)	−0.0070 (6)	0.0041 (5)	−0.0033 (6)
C39	0.0372 (9)	0.0284 (8)	0.0218 (7)	−0.0173 (7)	0.0122 (6)	−0.0069 (6)
C40	0.0298 (8)	0.0272 (8)	0.0463 (10)	−0.0156 (7)	0.0254 (7)	−0.0185 (7)
C41	0.0180 (7)	0.0207 (8)	0.0538 (10)	−0.0053 (6)	0.0144 (7)	−0.0102 (7)
C42	0.0165 (6)	0.0156 (7)	0.0324 (8)	−0.0035 (5)	0.0061 (6)	−0.0049 (6)
C43	0.0099 (6)	0.0146 (6)	0.0193 (6)	−0.0020 (5)	0.0011 (5)	−0.0014 (5)
C44	0.0148 (6)	0.0166 (7)	0.0193 (6)	−0.0011 (5)	0.0033 (5)	−0.0036 (5)
C45	0.0137 (6)	0.0151 (6)	0.0271 (7)	0.0023 (5)	0.0004 (5)	−0.0022 (5)
C46	0.0166 (6)	0.0180 (7)	0.0218 (6)	0.0029 (5)	−0.0036 (5)	0.0024 (5)
C47	0.0157 (6)	0.0225 (7)	0.0164 (6)	0.0011 (5)	−0.0012 (5)	−0.0011 (5)
C48	0.0125 (6)	0.0164 (6)	0.0183 (6)	0.0002 (5)	0.0000 (5)	−0.0035 (5)
C49	0.0164 (6)	0.0130 (6)	0.0163 (6)	−0.0028 (5)	0.0053 (5)	0.0002 (5)
C50	0.0183 (6)	0.0163 (6)	0.0198 (6)	−0.0027 (5)	0.0024 (5)	−0.0004 (5)
C51	0.0275 (7)	0.0182 (7)	0.0196 (6)	−0.0084 (6)	0.0048 (5)	−0.0030 (5)
C52	0.0335 (8)	0.0132 (6)	0.0244 (7)	−0.0037 (6)	0.0129 (6)	−0.0027 (6)
C53	0.0261 (7)	0.0143 (7)	0.0274 (7)	0.0027 (6)	0.0081 (6)	0.0034 (6)
C54	0.0201 (7)	0.0157 (6)	0.0193 (6)	−0.0004 (5)	0.0042 (5)	0.0026 (5)
C55	0.0158 (6)	0.0112 (6)	0.0173 (6)	−0.0007 (5)	0.0014 (5)	0.0006 (5)
C56	0.0174 (6)	0.0142 (6)	0.0181 (6)	−0.0008 (5)	0.0024 (5)	−0.0003 (5)
C57	0.0142 (6)	0.0145 (6)	0.0258 (7)	0.0001 (5)	0.0009 (5)	0.0023 (5)
C58	0.0212 (7)	0.0130 (6)	0.0210 (6)	−0.0028 (5)	−0.0057 (5)	0.0033 (5)
C59	0.0267 (7)	0.0171 (7)	0.0171 (6)	−0.0036 (6)	0.0015 (5)	−0.0026 (5)
C60	0.0187 (6)	0.0168 (7)	0.0205 (6)	−0.0019 (5)	0.0033 (5)	−0.0015 (5)

Geometric parameters (Å, º) top

N1—C1	1.3390 (16)	C25—C30	1.4029 (18)
N1—C2	1.4655 (17)	C25—C26	1.4029 (18)
N1—C3	1.4671 (17)	C26—C27	1.3942 (19)
N2—C1	1.3388 (17)	C26—H26A	0.9500
N2—C5	1.4638 (17)	C27—C28	1.387 (2)
N2—C4	1.4648 (17)	C27—H27A	0.9500
N3—C1	1.3540 (17)	C28—C29	1.390 (2)
N3—C6	1.4630 (16)	C28—H28A	0.9500
N3—C7	1.4697 (17)	C29—C30	1.3928 (19)
N4—C10	1.4983 (17)	C29—H29A	0.9500
N4—C12	1.5006 (16)	C30—H30A	0.9500
N4—C11	1.5027 (16)	C31—C32	1.4039 (18)
N4—C9	1.5171 (16)	C31—C36	1.4051 (18)
C2—H2A	0.9800	C32—C33	1.3941 (19)
C2—H2B	0.9800	C32—H32A	0.9500
C2—H2C	0.9800	C33—C34	1.384 (2)
C3—H3A	0.9800	C33—H33A	0.9500
C3—H3B	0.9800	C34—C35	1.3875 (19)
C3—H3C	0.9800	C34—H34A	0.9500
C4—H4A	0.9800	C35—C36	1.3937 (19)
C4—H4B	0.9800	C35—H35A	0.9500
C4—H4C	0.9800	C36—H36A	0.9500
C5—H5A	0.9800	B2—C43	1.642 (2)
C5—H5B	0.9800	B2—C49	1.6438 (19)
C5—H5C	0.9800	B2—C55	1.6470 (19)
C6—H6A	0.9800	B2—C37	1.6471 (19)
C6—H6B	0.9800	C37—C42	1.4015 (19)
C6—H6C	0.9800	C37—C38	1.403 (2)
C7—C8	1.5389 (17)	C38—C39	1.390 (2)
C7—H7A	0.9900	C38—H38A	0.9500
C7—H7B	0.9900	C39—C40	1.388 (3)
C8—C9	1.5254 (18)	C39—H39A	0.9500
C8—H8A	0.9900	C40—C41	1.380 (3)
C8—H8B	0.9900	C40—H40A	0.9500
C9—H9A	0.9900	C41—C42	1.397 (2)
C9—H9B	0.9900	C41—H41A	0.9500
C10—H10A	0.9800	C42—H42A	0.9500
C10—H10B	0.9800	C43—C48	1.4017 (18)
C10—H10C	0.9800	C43—C44	1.4067 (18)
C11—H11A	0.9800	C44—C45	1.3911 (19)
C11—H11B	0.9800	C44—H44A	0.9500
C11—H11C	0.9800	C45—C46	1.388 (2)
C12—H12A	0.9800	C45—H45A	0.9500
C12—H12B	0.9800	C46—C47	1.387 (2)
C12—H12C	0.9800	C46—H46A	0.9500
B1—C25	1.6427 (19)	C47—C48	1.3963 (19)
B1—C19	1.6451 (19)	C47—H47A	0.9500
B1—C31	1.6584 (19)	C48—H48A	0.9500
B1—C13	1.6600 (19)	C49—C54	1.4051 (19)
C13—C18	1.4034 (18)	C49—C50	1.4088 (18)
C13—C14	1.4116 (19)	C50—C51	1.393 (2)
C14—C15	1.391 (2)	C50—H50A	0.9500
C14—H14A	0.9500	C51—C52	1.390 (2)
C15—C16	1.390 (2)	C51—H51A	0.9500
C15—H15A	0.9500	C52—C53	1.387 (2)
C16—C17	1.382 (2)	C52—H52A	0.9500
C16—H16A	0.9500	C53—C54	1.397 (2)
C17—C18	1.3955 (19)	C53—H53A	0.9500
C17—H17A	0.9500	C54—H54A	0.9500
C18—H18A	0.9500	C55—C60	1.4034 (18)
C19—C24	1.4060 (17)	C55—C56	1.4063 (18)
C19—C20	1.4089 (18)	C56—C57	1.3935 (18)
C20—C21	1.3895 (19)	C56—H56A	0.9500
C20—H20A	0.9500	C57—C58	1.387 (2)
C21—C22	1.3904 (19)	C57—H57A	0.9500
C21—H21A	0.9500	C58—C59	1.386 (2)
C22—C23	1.382 (2)	C58—H58A	0.9500
C22—H22A	0.9500	C59—C60	1.3933 (19)
C23—C24	1.3971 (19)	C59—H59A	0.9500
C23—H23A	0.9500	C60—H60A	0.9500
C24—H24A	0.9500

C1—N1—C2	122.05 (11)	C22—C23—C24	120.35 (12)
C1—N1—C3	122.97 (11)	C22—C23—H23A	119.8
C2—N1—C3	114.96 (11)	C24—C23—H23A	119.8
C1—N2—C5	121.54 (11)	C23—C24—C19	122.82 (12)
C1—N2—C4	123.64 (11)	C23—C24—H24A	118.6
C5—N2—C4	114.80 (11)	C19—C24—H24A	118.6
C1—N3—C6	120.28 (11)	C30—C25—C26	115.54 (12)
C1—N3—C7	122.04 (11)	C30—C25—B1	121.04 (11)
C6—N3—C7	117.52 (11)	C26—C25—B1	123.01 (12)
C10—N4—C12	110.16 (10)	C27—C26—C25	122.68 (13)
C10—N4—C11	108.57 (10)	C27—C26—H26A	118.7
C12—N4—C11	107.94 (10)	C25—C26—H26A	118.7
C10—N4—C9	110.79 (10)	C28—C27—C26	119.96 (13)
C12—N4—C9	110.83 (10)	C28—C27—H27A	120.0
C11—N4—C9	108.45 (10)	C26—C27—H27A	120.0
N2—C1—N1	121.12 (12)	C27—C28—C29	119.18 (13)
N2—C1—N3	118.60 (11)	C27—C28—H28A	120.4
N1—C1—N3	120.28 (12)	C29—C28—H28A	120.4
N1—C2—H2A	109.5	C28—C29—C30	119.99 (13)
N1—C2—H2B	109.5	C28—C29—H29A	120.0
H2A—C2—H2B	109.5	C30—C29—H29A	120.0
N1—C2—H2C	109.5	C29—C30—C25	122.63 (13)
H2A—C2—H2C	109.5	C29—C30—H30A	118.7
H2B—C2—H2C	109.5	C25—C30—H30A	118.7
N1—C3—H3A	109.5	C32—C31—C36	114.81 (12)
N1—C3—H3B	109.5	C32—C31—B1	121.74 (11)
H3A—C3—H3B	109.5	C36—C31—B1	123.41 (11)
N1—C3—H3C	109.5	C33—C32—C31	122.91 (13)
H3A—C3—H3C	109.5	C33—C32—H32A	118.5
H3B—C3—H3C	109.5	C31—C32—H32A	118.5
N2—C4—H4A	109.5	C34—C33—C32	120.45 (12)
N2—C4—H4B	109.5	C34—C33—H33A	119.8
H4A—C4—H4B	109.5	C32—C33—H33A	119.8
N2—C4—H4C	109.5	C33—C34—C35	118.55 (12)
H4A—C4—H4C	109.5	C33—C34—H34A	120.7
H4B—C4—H4C	109.5	C35—C34—H34A	120.7
N2—C5—H5A	109.5	C34—C35—C36	120.34 (13)
N2—C5—H5B	109.5	C34—C35—H35A	119.8
H5A—C5—H5B	109.5	C36—C35—H35A	119.8
N2—C5—H5C	109.5	C35—C36—C31	122.92 (12)
H5A—C5—H5C	109.5	C35—C36—H36A	118.5
H5B—C5—H5C	109.5	C31—C36—H36A	118.5
N3—C6—H6A	109.5	C43—B2—C49	112.26 (10)
N3—C6—H6B	109.5	C43—B2—C55	105.27 (10)
H6A—C6—H6B	109.5	C49—B2—C55	112.44 (10)
N3—C6—H6C	109.5	C43—B2—C37	110.33 (11)
H6A—C6—H6C	109.5	C49—B2—C37	106.20 (10)
H6B—C6—H6C	109.5	C55—B2—C37	110.42 (10)
N3—C7—C8	112.02 (10)	C42—C37—C38	115.43 (13)
N3—C7—H7A	109.2	C42—C37—B2	124.38 (12)
C8—C7—H7A	109.2	C38—C37—B2	120.19 (12)
N3—C7—H7B	109.2	C39—C38—C37	122.67 (14)
C8—C7—H7B	109.2	C39—C38—H38A	118.7
H7A—C7—H7B	107.9	C37—C38—H38A	118.7
C9—C8—C7	108.24 (10)	C40—C39—C38	120.02 (15)
C9—C8—H8A	110.1	C40—C39—H39A	120.0
C7—C8—H8A	110.1	C38—C39—H39A	120.0
C9—C8—H8B	110.1	C41—C40—C39	119.05 (14)
C7—C8—H8B	110.1	C41—C40—H40A	120.5
H8A—C8—H8B	108.4	C39—C40—H40A	120.5
N4—C9—C8	115.25 (10)	C40—C41—C42	120.28 (15)
N4—C9—H9A	108.5	C40—C41—H41A	119.9
C8—C9—H9A	108.5	C42—C41—H41A	119.9
N4—C9—H9B	108.5	C41—C42—C37	122.35 (15)
C8—C9—H9B	108.5	C41—C42—H42A	118.8
H9A—C9—H9B	107.5	C37—C42—H42A	118.8
N4—C10—H10A	109.5	C48—C43—C44	115.20 (12)
N4—C10—H10B	109.5	C48—C43—B2	125.02 (12)
H10A—C10—H10B	109.5	C44—C43—B2	119.76 (11)
N4—C10—H10C	109.5	C45—C44—C43	123.25 (12)
H10A—C10—H10C	109.5	C45—C44—H44A	118.4
H10B—C10—H10C	109.5	C43—C44—H44A	118.4
N4—C11—H11A	109.5	C46—C45—C44	119.58 (13)
N4—C11—H11B	109.5	C46—C45—H45A	120.2
H11A—C11—H11B	109.5	C44—C45—H45A	120.2
N4—C11—H11C	109.5	C47—C46—C45	119.10 (13)
H11A—C11—H11C	109.5	C47—C46—H46A	120.5
H11B—C11—H11C	109.5	C45—C46—H46A	120.5
N4—C12—H12A	109.5	C46—C47—C48	120.43 (13)
N4—C12—H12B	109.5	C46—C47—H47A	119.8
H12A—C12—H12B	109.5	C48—C47—H47A	119.8
N4—C12—H12C	109.5	C47—C48—C43	122.32 (13)
H12A—C12—H12C	109.5	C47—C48—H48A	118.8
H12B—C12—H12C	109.5	C43—C48—H48A	118.8
C25—B1—C19	108.02 (10)	C54—C49—C50	115.02 (12)
C25—B1—C31	108.60 (10)	C54—C49—B2	125.40 (11)
C19—B1—C31	109.35 (10)	C50—C49—B2	119.43 (12)
C25—B1—C13	110.74 (10)	C51—C50—C49	122.77 (13)
C19—B1—C13	111.30 (10)	C51—C50—H50A	118.6
C31—B1—C13	108.78 (10)	C49—C50—H50A	118.6
C18—C13—C14	114.15 (12)	C52—C51—C50	120.28 (13)
C18—C13—B1	123.89 (12)	C52—C51—H51A	119.9
C14—C13—B1	121.89 (11)	C50—C51—H51A	119.9
C15—C14—C13	123.02 (13)	C53—C52—C51	118.84 (13)
C15—C14—H14A	118.5	C53—C52—H52A	120.6
C13—C14—H14A	118.5	C51—C52—H52A	120.6
C16—C15—C14	120.59 (13)	C52—C53—C54	120.16 (13)
C16—C15—H15A	119.7	C52—C53—H53A	119.9
C14—C15—H15A	119.7	C54—C53—H53A	119.9
C17—C16—C15	118.31 (13)	C53—C54—C49	122.90 (13)
C17—C16—H16A	120.8	C53—C54—H54A	118.6
C15—C16—H16A	120.8	C49—C54—H54A	118.6
C16—C17—C18	120.38 (13)	C60—C55—C56	115.11 (12)
C16—C17—H17A	119.8	C60—C55—B2	123.72 (12)
C18—C17—H17A	119.8	C56—C55—B2	121.08 (11)
C17—C18—C13	123.41 (13)	C57—C56—C55	122.83 (13)
C17—C18—H18A	118.3	C57—C56—H56A	118.6
C13—C18—H18A	118.3	C55—C56—H56A	118.6
C24—C19—C20	114.76 (12)	C58—C57—C56	120.06 (13)
C24—C19—B1	123.37 (11)	C58—C57—H57A	120.0
C20—C19—B1	121.83 (11)	C56—C57—H57A	120.0
C21—C20—C19	123.05 (12)	C59—C58—C57	118.84 (12)
C21—C20—H20A	118.5	C59—C58—H58A	120.6
C19—C20—H20A	118.5	C57—C58—H58A	120.6
C20—C21—C22	120.20 (13)	C58—C59—C60	120.40 (13)
C20—C21—H21A	119.9	C58—C59—H59A	119.8
C22—C21—H21A	119.9	C60—C59—H59A	119.8
C23—C22—C21	118.81 (12)	C59—C60—C55	122.62 (13)
C23—C22—H22A	120.6	C59—C60—H60A	118.7
C21—C22—H22A	120.6	C55—C60—H60A	118.7

C5—N2—C1—N1	−150.00 (13)	C13—B1—C31—C36	131.83 (12)
C4—N2—C1—N1	31.57 (19)	C36—C31—C32—C33	−1.25 (18)
C5—N2—C1—N3	29.97 (18)	B1—C31—C32—C33	−179.20 (12)
C4—N2—C1—N3	−148.46 (12)	C31—C32—C33—C34	0.1 (2)
C2—N1—C1—N2	−150.60 (12)	C32—C33—C34—C35	1.2 (2)
C3—N1—C1—N2	27.44 (19)	C33—C34—C35—C36	−1.3 (2)
C2—N1—C1—N3	29.43 (18)	C34—C35—C36—C31	0.1 (2)
C3—N1—C1—N3	−152.53 (12)	C32—C31—C36—C35	1.12 (19)
C6—N3—C1—N2	44.91 (17)	B1—C31—C36—C35	179.04 (12)
C7—N3—C1—N2	−139.78 (12)	C43—B2—C37—C42	12.69 (17)
C6—N3—C1—N1	−135.12 (13)	C49—B2—C37—C42	−109.20 (14)
C7—N3—C1—N1	40.19 (18)	C55—B2—C37—C42	128.64 (13)
C1—N3—C7—C8	122.96 (13)	C43—B2—C37—C38	−167.47 (12)
C6—N3—C7—C8	−61.61 (15)	C49—B2—C37—C38	70.64 (15)
N3—C7—C8—C9	−160.81 (11)	C55—B2—C37—C38	−51.52 (16)
C10—N4—C9—C8	71.23 (14)	C42—C37—C38—C39	−4.5 (2)
C12—N4—C9—C8	−51.38 (14)	B2—C37—C38—C39	175.68 (13)
C11—N4—C9—C8	−169.70 (11)	C37—C38—C39—C40	1.2 (2)
C7—C8—C9—N4	−170.40 (10)	C38—C39—C40—C41	2.5 (2)
C25—B1—C13—C18	137.19 (12)	C39—C40—C41—C42	−2.7 (2)
C19—B1—C13—C18	17.01 (17)	C40—C41—C42—C37	−0.8 (2)
C31—B1—C13—C18	−103.53 (14)	C38—C37—C42—C41	4.2 (2)
C25—B1—C13—C14	−46.18 (16)	B2—C37—C42—C41	−175.91 (13)
C19—B1—C13—C14	−166.35 (11)	C49—B2—C43—C48	−14.96 (17)
C31—B1—C13—C14	73.10 (15)	C55—B2—C43—C48	107.68 (13)
C18—C13—C14—C15	4.09 (19)	C37—B2—C43—C48	−133.20 (12)
B1—C13—C14—C15	−172.85 (12)	C49—B2—C43—C44	166.63 (11)
C13—C14—C15—C16	−1.8 (2)	C55—B2—C43—C44	−70.74 (14)
C14—C15—C16—C17	−1.4 (2)	C37—B2—C43—C44	48.39 (15)
C15—C16—C17—C18	2.0 (2)	C48—C43—C44—C45	3.72 (19)
C16—C17—C18—C13	0.5 (2)	B2—C43—C44—C45	−177.71 (12)
C14—C13—C18—C17	−3.47 (19)	C43—C44—C45—C46	−3.1 (2)
B1—C13—C18—C17	173.40 (12)	C44—C45—C46—C47	−0.1 (2)
C25—B1—C19—C24	−3.37 (16)	C45—C46—C47—C48	2.4 (2)
C31—B1—C19—C24	−121.39 (13)	C46—C47—C48—C43	−1.7 (2)
C13—B1—C19—C24	118.40 (13)	C44—C43—C48—C47	−1.27 (18)
C25—B1—C19—C20	174.10 (11)	B2—C43—C48—C47	−179.75 (12)
C31—B1—C19—C20	56.08 (15)	C43—B2—C49—C54	129.63 (13)
C13—B1—C19—C20	−64.13 (15)	C55—B2—C49—C54	11.14 (18)
C24—C19—C20—C21	0.12 (19)	C37—B2—C49—C54	−109.72 (14)
B1—C19—C20—C21	−177.55 (12)	C43—B2—C49—C50	−55.04 (15)
C19—C20—C21—C22	−1.0 (2)	C55—B2—C49—C50	−173.52 (11)
C20—C21—C22—C23	1.0 (2)	C37—B2—C49—C50	65.62 (15)
C21—C22—C23—C24	−0.2 (2)	C54—C49—C50—C51	−1.45 (19)
C22—C23—C24—C19	−0.8 (2)	B2—C49—C50—C51	−177.25 (12)
C20—C19—C24—C23	0.77 (19)	C49—C50—C51—C52	0.2 (2)
B1—C19—C24—C23	178.40 (12)	C50—C51—C52—C53	1.4 (2)
C19—B1—C25—C30	−79.63 (14)	C51—C52—C53—C54	−1.6 (2)
C31—B1—C25—C30	38.87 (16)	C52—C53—C54—C49	0.3 (2)
C13—B1—C25—C30	158.26 (11)	C50—C49—C54—C53	1.20 (19)
C19—B1—C25—C26	92.75 (14)	B2—C49—C54—C53	176.72 (13)
C31—B1—C25—C26	−148.75 (12)	C43—B2—C55—C60	100.23 (14)
C13—B1—C25—C26	−29.36 (17)	C49—B2—C55—C60	−137.25 (13)
C30—C25—C26—C27	−0.1 (2)	C37—B2—C55—C60	−18.83 (17)
B1—C25—C26—C27	−172.88 (13)	C43—B2—C55—C56	−76.22 (15)
C25—C26—C27—C28	0.8 (2)	C49—B2—C55—C56	46.29 (16)
C26—C27—C28—C29	−0.6 (2)	C37—B2—C55—C56	164.71 (12)
C27—C28—C29—C30	−0.1 (2)	C60—C55—C56—C57	4.0 (2)
C28—C29—C30—C25	0.8 (2)	B2—C55—C56—C57	−179.26 (12)
C26—C25—C30—C29	−0.66 (19)	C55—C56—C57—C58	−2.1 (2)
B1—C25—C30—C29	172.25 (12)	C56—C57—C58—C59	−1.4 (2)
C25—B1—C31—C32	70.22 (14)	C57—C58—C59—C60	2.6 (2)
C19—B1—C31—C32	−172.13 (11)	C58—C59—C60—C55	−0.4 (2)
C13—B1—C31—C32	−50.39 (15)	C56—C55—C60—C59	−2.8 (2)
C25—B1—C31—C36	−107.56 (13)	B2—C55—C60—C59	−179.40 (13)
C19—B1—C31—C36	10.09 (16)

Hydrogen-bond geometry (Å, º) top

Cg1, Cg4, Cg5, Cg6, and Cg8 are the centroids of the C13–C18,C31–C36, C37–C42, C43–C48 and C55–C60 rings, respectively.

D—H···A	D—H	H···A	D···A	D—H···A
C3—H3C···Cg7	0.98	2.62	3.3783 (16)	134
C7—H7B···Cg1	0.99	2.80	3.7805 (14)	169
C9—H9B···Cg6	0.99	2.52	3.4075 (14)	149
C11—H11C···Cg5ⁱ	0.98	2.62	3.4852 (15)	147
C12—H12A···Cg4	0.98	2.59	3.4044 (15)	141
C12—H12B···Cg8ⁱⁱ	0.98	2.69	3.5990 (15)	155

Symmetry codes: (i) −x+1, y+1/2, −z+1/2; (ii) x, −y+3/2, z+1/2.

Experimental details

Crystal data
Chemical formula	C₁₂H₃₀N₄⁺·2C₂₄H₂₀B⁻
M_r	868.82
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	100
a, b, c (Å)	17.7622 (4), 16.1667 (3), 17.3787 (4)
β (°)	98.045 (1)
V (Å³)	4941.29 (18)
Z	4
Radiation type	Mo Kα
µ (mm⁻¹)	0.07
Crystal size (mm)	0.27 × 0.25 × 0.20

Data collection
Diffractometer	Bruker–Nonius KappaCCD diffractometer
Absorption correction	–
No. of measured, independent and observed [I > 2σ(I)] reflections	22713, 12056, 8821
R_int	0.038
(sin θ/λ)_max (Å⁻¹)	0.666

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.045, 0.108, 1.02
No. of reflections	12056
No. of parameters	603
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.31, −0.27

Computer programs: COLLECT (Hooft, 2004), SCALEPACK (Otwinowski & Minor, 1997), SHELXS97 (Sheldrick, 2008), SHELXL97 (Sheldrick, 2008), DIAMOND (Brandenburg & Putz, 2005).

Hydrogen-bond geometry (Å, º) top

Cg1, Cg4, Cg5, Cg6, and Cg8 are the centroids of the C13–C18,C31–C36, C37–C42, C43–C48 and C55–C60 rings, respectively.

D—H···A	D—H	H···A	D···A	D—H···A
C3—H3C···Cg7	0.98	2.62	3.3783 (16)	134
C7—H7B···Cg1	0.99	2.80	3.7805 (14)	169
C9—H9B···Cg6	0.99	2.52	3.4075 (14)	149
C11—H11C···Cg5ⁱ	0.98	2.62	3.4852 (15)	147
C12—H12A···Cg4	0.98	2.59	3.4044 (15)	141
C12—H12B···Cg8ⁱⁱ	0.98	2.69	3.5990 (15)	155

Symmetry codes: (i) −x+1, y+1/2, −z+1/2; (ii) x, −y+3/2, z+1/2.

Acknowledgements

The author thanks Dr F. Lissner (Institut für Anorganische Chemie, Universität Stuttgart) for measuring the crystal data.

References

Behrens, U., Hoffmann, F. & Olbrich, F. (2012). Organometallics, 31, 905–913. Web of Science CSD CrossRef CAS Google Scholar
Brandenburg, K. & Putz, H. (2005). DIAMOND. Crystal Impact GbR, Bonn, Germany. Google Scholar
Hooft, R. W. W. (2004). COLLECT. Bruker–Nonius BV, Delft, The Netherlands. Google Scholar
Otwinowski, Z. & Minor, W. (1997). Methods in Enzymology, Vol. 276, Macromolecular Crystallography, Part A, edited by C. W. Carter Jr & R. M. Sweet, pp. 307–326. New York: Academic Press. Google Scholar
Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. Web of Science CrossRef CAS IUCr Journals Google Scholar
Tiritiris, I. & Kantlehner, W. (2012). Z. Naturforsch. Teil B, 67, 685–698. Web of Science CrossRef CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 69| Part 2| February 2013| Page o292

doi:10.1107/S1600536813001992

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

organic compounds\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

N,N,N′,N′,N′′-Penta­methyl-N′′-[3-(tri­methyl­aza­nium­yl)prop­yl]guanidinium bis­­(tetra­phenyl­borate)

Related literature

Experimental

Crystal data

Data collection

Refinement

Supporting information

Acknowledgements

References

organic compounds

N,N,N′,N′,N′′-Pentamethyl-N′′-[3-(trimethylazaniumyl)propyl]guanidinium bis(tetraphenylborate)
