Figure 5

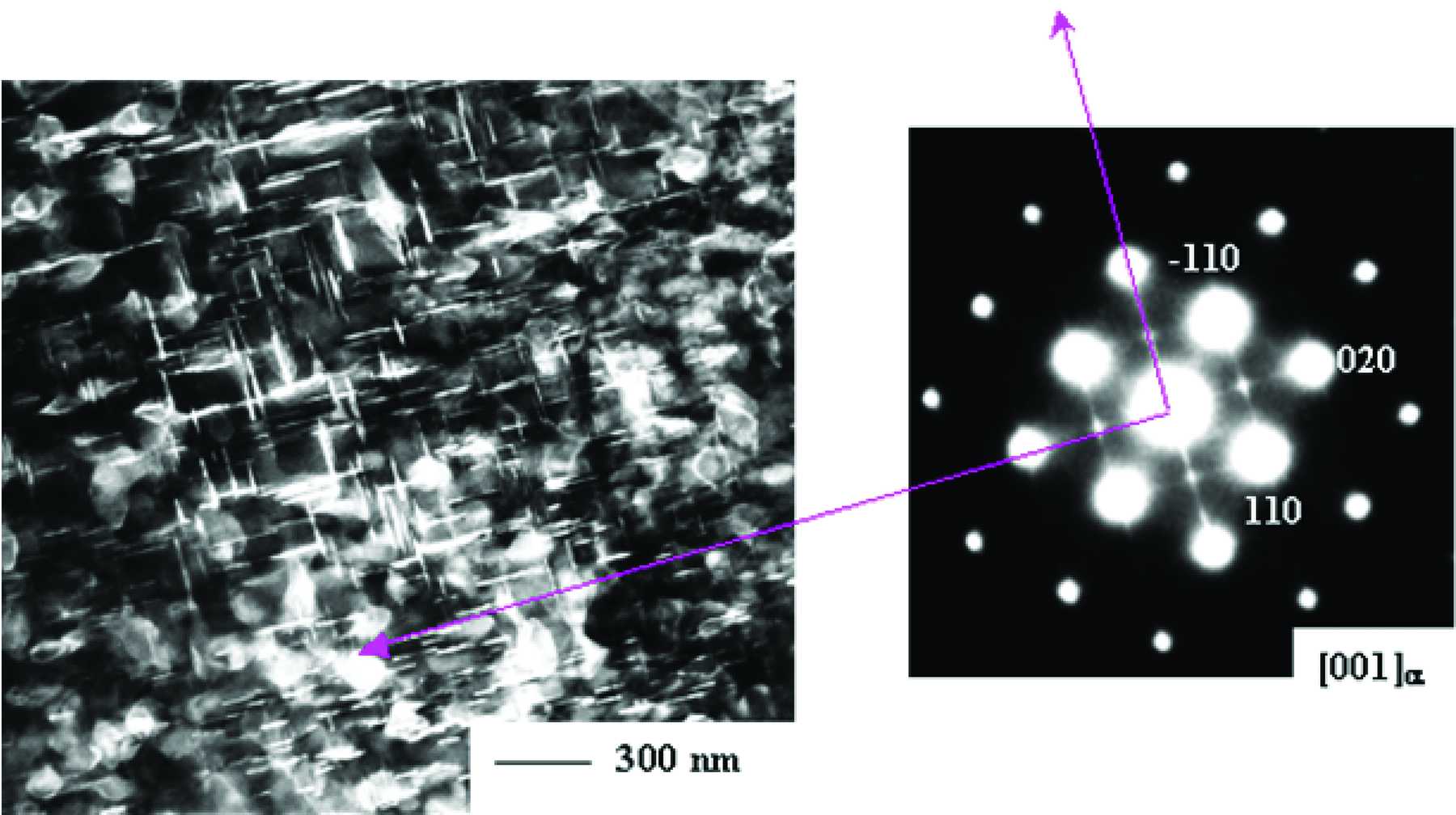

(a) Centred dark-field TEM image showing θ′-phase particles. (b) Related composite diffraction pattern recorded along the [001] zone axis of the ferritic matrix. The reflections with a low intensity belong to the θ′ phase. The reflection at half the distance between 000 and 020 is used for the dark-field image.
