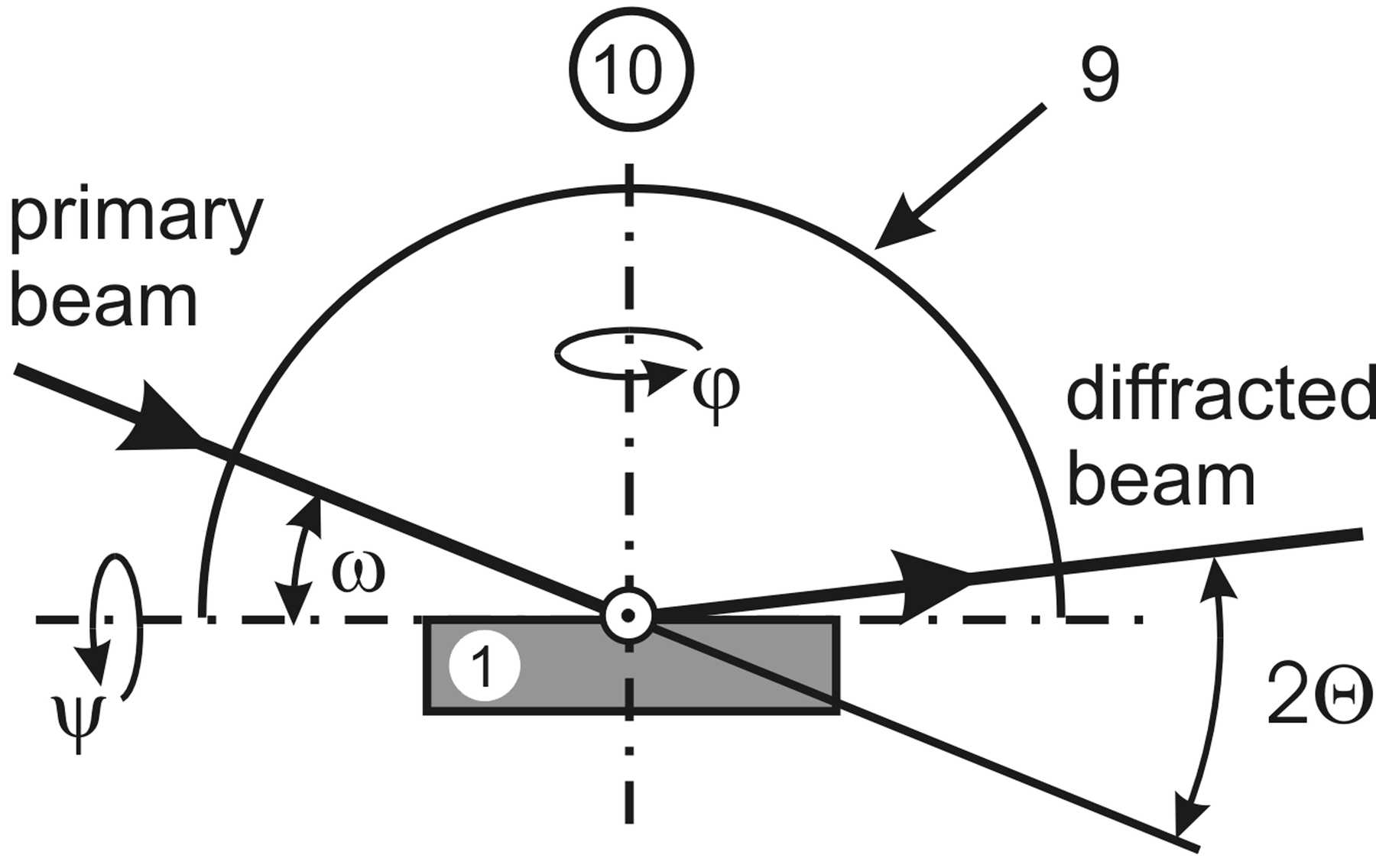

Figure 2
The angles of a four-circle texture goniometer relative to the heating stage. The primary beam covers the angles of incidence ω, ψ and φ relative to the heating plate and the diffracted beam takes the scattering angle 2Θ relative to the primary beam.

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 36| Part 1| February 2003| Pages 80-85
https://doi.org/10.1107/S0021889802019568
