Figure 4

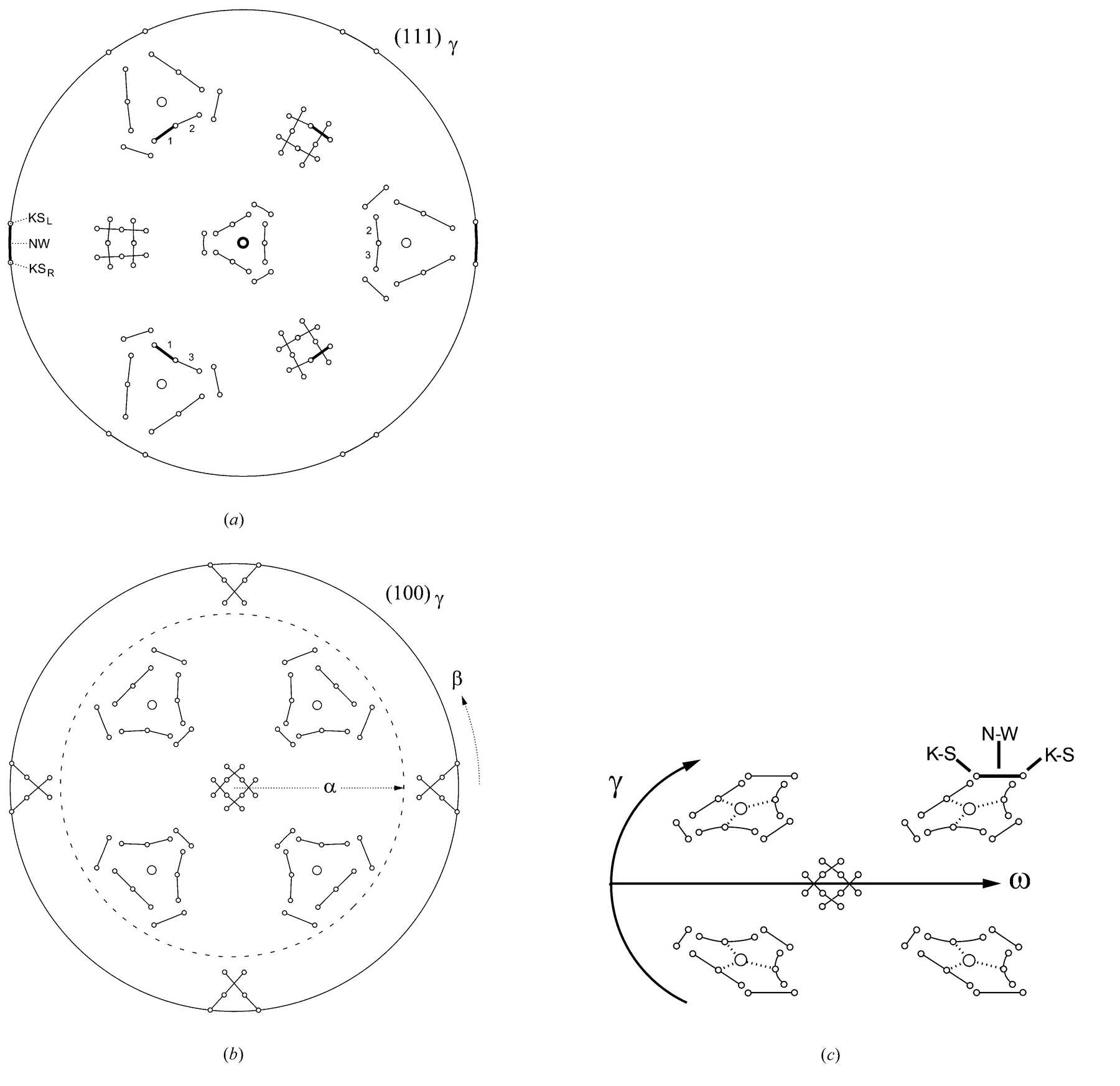

Distribution of 〈110〉 directions of kamacite lamellae according to the orientation relationship given by equation (1)[link], assuming a continuous range of orientations from KSL to KSR, centred at the NW orientation. (a) Projection onto a (111)γ plane. The three coplanar variants 1, 2, 3 are marked explicitly, one of them by bold lines. (b) Projection onto a (100)γ plane. The dashed circle corresponds to the visible area of Fig. 3[link]. The conventional polar coordinates {αβ} are also shown. (c) The area within the dashed circle of (b) transformed to the experimental coordinates {ωγ}. The `additional' spread lines around the central [111]γ directions of Fig. 3[link] are also shown by dashed lines.
