Figure 1

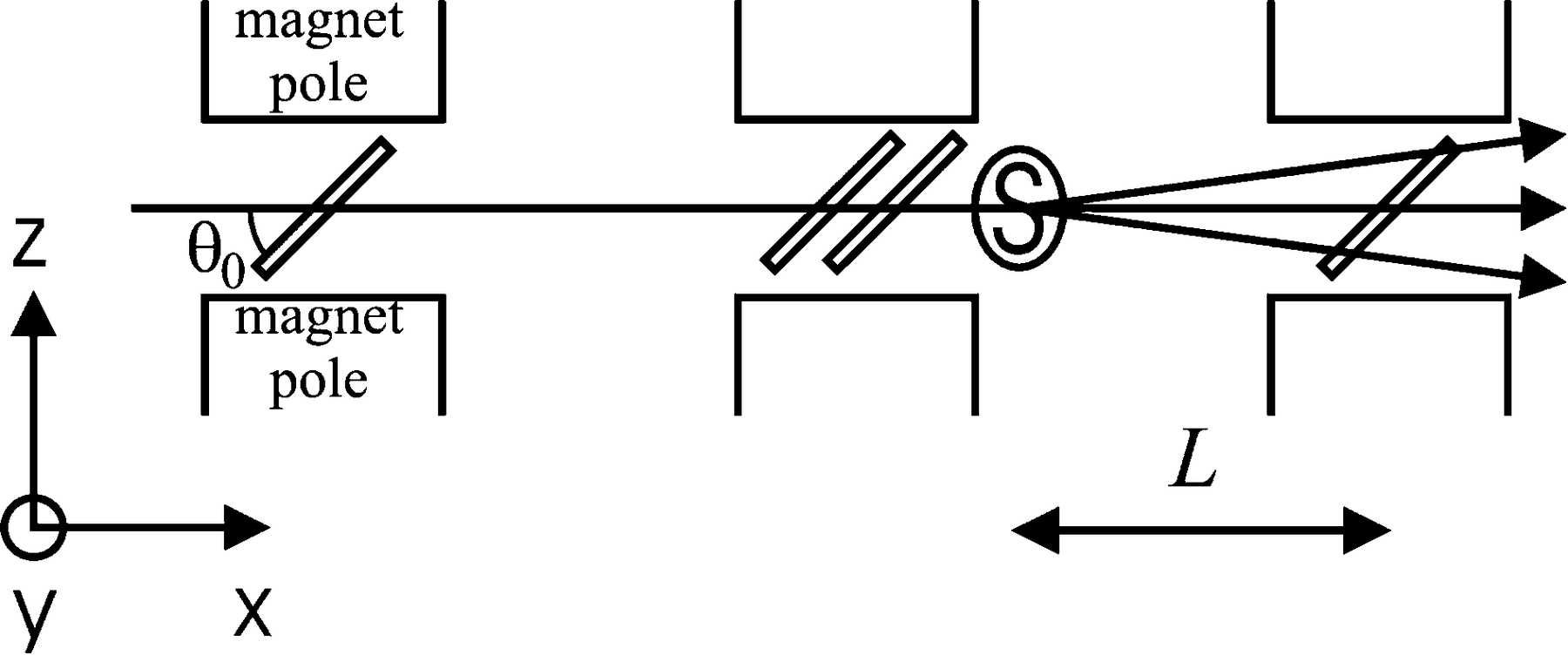

Schematic side-view diagram of a SESANS setup built with magnetized foils. The spin-echo length Z can be varied by changing the sample (denoted by S) position L or by varying the magnetic field B. The gray areas indicate the precession regions. The definition of the X, Y and Z directions is given in the diagram.
