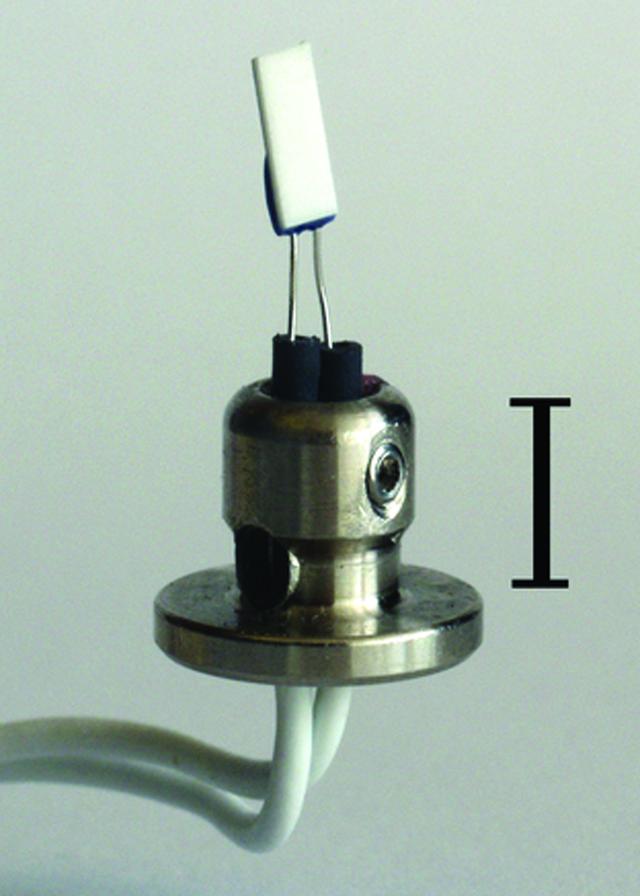

Figure 1 Platinum sensor mounted on a top-hat. The heat-shrinkable tubing used to insulate the resistance element from the top-hat is visible in the picture. The length of the scale bar is 5  mm.
