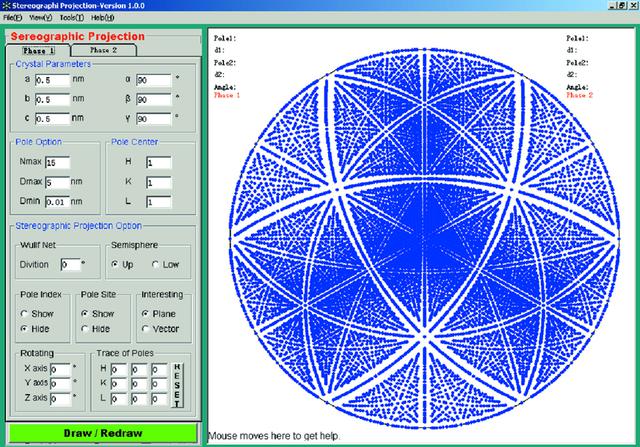

Figure 1
A screenshot of the program to plot Kikuchi lines in a planar projection with a pole centre of [111] orientation for a cubic structure. When the planar index is larger than nine, all planar poles will lie along the Kikuchi line and thus delineate the Kikuchi line pattern. The Kikuchi line patterns share the same crystallographic symmetry as the stereographic projection of the [111] pole centre.
