GEO-MIX-SELF calculations of the elastic properties of a textured graphite sample at different hydrostatic pressures

Matthies, S.

doi:10.1107/S002188981104338X

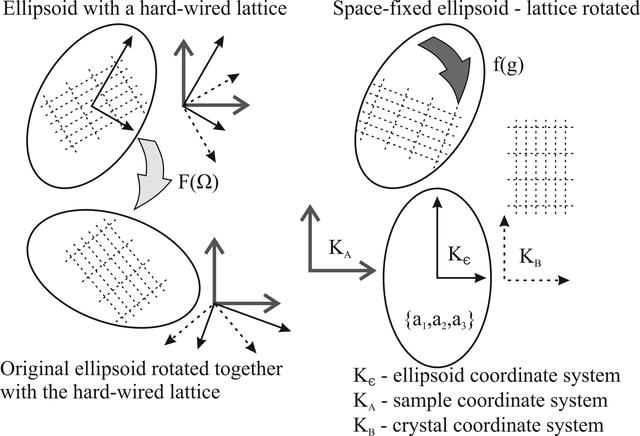

Figure 1
Three coordinate systems and the two orientation distributions: f(g) - the ODF (describing crystal lattice orientations) - and F() - the SOD (describing shape orientations) - both in relation to the sample coordinate system K_A. For simplicity the three-dimensional objects and coordinate systems are shown in two dimensions only.
